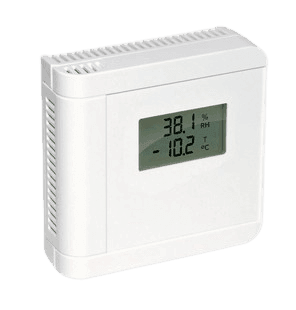

HumiGuard® HT302 - Humidity and temperature transmitter universal for indoor use

SKU: 1498/F/-/V/D

Description

Display
Analog output
Measured variable
€171,70
Shipping will be charged at checkout.

Specification
  • Medium
    Air, unpressurized, non-aggressive
  • Device type
    Humidity and temperature transmitter
  • Device type
    Room version
  • Media temperature
    -30 ... 60°C
  • Measuring range rel. humidity
    0 ... 100% rH
  • Measuring accuracy rel. humidity
    40 ... 60% rF: ±2,5% rF, <40% rF oder >60% rF: ±3% rF (bei 23°C / UB=24 V DC), Temperatureinfluss bei 23°C: typ. ±0,05% rF/K
  • Display
    Display optional, 2 lines, 3 digits + 1 decimal place, Display approx. 21 mm x 40 mm, digit height approx. 8 mm
  • Protection class evaluation unit
    IP30D
  • Special features
    easy-to-install housing, Integrated measuring chamber separated from the transmitter electronics, ensures good ventilation of the humidity and temperature measuring element.
  • Output signal
    Analog output, Humidity only, 1x active, Humidity and temperature, 2x active
  • Housing material
    ABS
  • Housing material
    ABS
  • Housing dimensions
    81 mm x 81 mm x 25.7 mm
  • Power supply
    15 ... 30 V DC
  • Electrical connection
    Screw terminals wire cross-section per connection: max. 1.5mm², Cable diameter: max. 7 mm (recommended: 5 mm)
  • Power consumption max
    Voltage output: typ. 7 mA
  • Recommended cable cross-section
    max. 1.5mm²
  • Load resistance
    Voltage output: ≥10 kΩ, Current output: Load, RL (Ω)= ((supply voltage -10 V)/0.02 A) ±50 Ω
  • Type of sensor element
    Capacitive FE09, Pt1000
  • Ambient temperature
    -30 ... 60°C
  • Storage temperature
    -40 ... 85°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

HumiGuard® HT302 - Humidity and temperature transmitter universal for indoor use

From €148,95

Availability

Power consumption

Specification Response time (s)

Minimum pipe diameter

Measuring range temperature Filter

HS Code

90 26 20

Output power min.

Moisture resolution

Analog output specification

1x 0 ... 10 V, 1x 4 ... 20 mA, 2x 0 ... 10 V, 2x 4 ... 20 mA

Product type Flow

Sensor protection class

Immersion depth

Accuracy of the atmospheric pressure

Weight

Insulation resistance

Material connection head

Material sensor

Response time

Enclosure protection class

Type of sensor element

Capacitive FE09, Pt1000

Ambient temperature

-30 ... 60°C

ATEX certification

Fastening strap specification

Housing dimensions

81 mm x 81 mm x 25.7 mm

Device type

Room version

Device type

Humidity and temperature transmitter

Sensor cable length

Conformity

Housing material

ABS

Temperature measuring range

Temperature measuring accuracy

Spannungsausgang, bei 10 … 40°C: ±0,25K, Stromausgang, bei 10 … 40°C: ±0,4K, Temperatureinfluss bei <10°C oder >40°C: typ. ±0,01K/K

Product type Temperature

Silver level

Ambient temperature Device

Operating pressure

Medium

Air, unpressurized, non-aggressive

Pressure measuring range

Product type Print

Test mark

Switching differential

Switching capacity

Switching point

Operating voltage

Digital output

Own consumption

Measuring range CO₂

Measuring accuracy relative humidity

40 ... 60% rF: ±2,5% rF, <40% rF oder >60% rF: ±3% rF (bei 23°C / UB=24 V DC), Temperatureinfluss bei 23°C: typ. ±0,05% rF/K

Product type Humidity

Reaction time measurement Co.

Power supply

15 ... 30 V DC

Manufacturer

Product type HVAC

Analog signal

Power consumption max

Voltage output: typ. 7 mA

Maximum pressure

Display

Electrical connection

Screw terminals wire cross-section per connection: max. 1.5mm², Cable diameter: max. 7 mm (recommended: 5 mm)

Operating temperature

Product type fill level

Relay output specification

Load resistance

Voltage output: ≥10 kΩ, Current output: Load, RL (Ω)= ((supply voltage -10 V)/0.02 A) ±50 Ω

Ambient humidity

Ambient temperature Maximum Celsius

Ambient temperature (min. °C)

Compressive strength

Media temperature

-30 ... 60°C

Product type

Process connection

Temperature gradient

Measuring resistor

Differential pressure max

Accuracy of the output signal LCD Modbus

Flow measuring range

Signal output

Process connection 1

Switching function with flow

Signal display with flow

Signal output flow

Analog output

Notes

Minimum switching capacity

Optimum run-out distance

Optimum run-in distance

Reproducibility of the output signal

Signal display circuit

Current and contact load capacity

Power supply tolerance

Overvoltage category

Pollution class

Analog input_CO_

Digital input

Measuring range relative humidity

0 ... 100% rH

Potentiometer

Potentiometer output

Scale range

Analog input

Analog input_CO2

Installation depth

Digital outputs

Digital inputs

Error inputs

Ambient temperature1

Color

Output signal

Analog output, Humidity only, 1x active, Humidity and temperature, 2x active

Recommended cable cross-section

max. 1.5mm²

Signal output Sensor short circuit

Signal output sensor break

Outside diameter

Inner diameter

Thread

Temperature range

Lining

Diameter

Flow measurement accuracy

Setting range

Sensor response length

Capillary tube length

Protection class

Material

Measuring accuracy pressure relative

Temperature compensation

Country of origin

Germany

Vacuum resistance

Hysteresis

Repeatability

Material contact

Bursting pressure

Measuring range atmospheric pressure

Measuring range pressure V2

Short-circuit protection

Max Bürde

Reverse polarity protection

Accuracy of VOC measurement

Measuring range VOC

Media compatibility

Overload pressure

Alarm

Measuring range VOC1

Relay output

Power (kW)

Heat dissipation

Minimum load

Supply output

Cable trenches

Storage temperature

-40 ... 85°C

Fuse

Measuring accuracy_CO_

Front cover

Interface

Power supply

Efficiency

Long-term stability

Preset switching point

Customs tariff number

90 26 20 20

Pulley

Media temperature Max

Media temperature min
