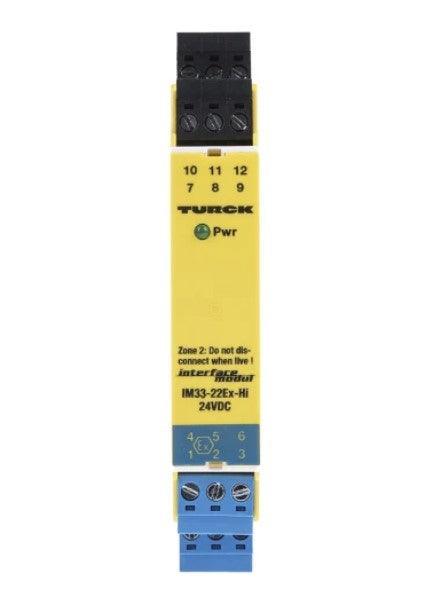

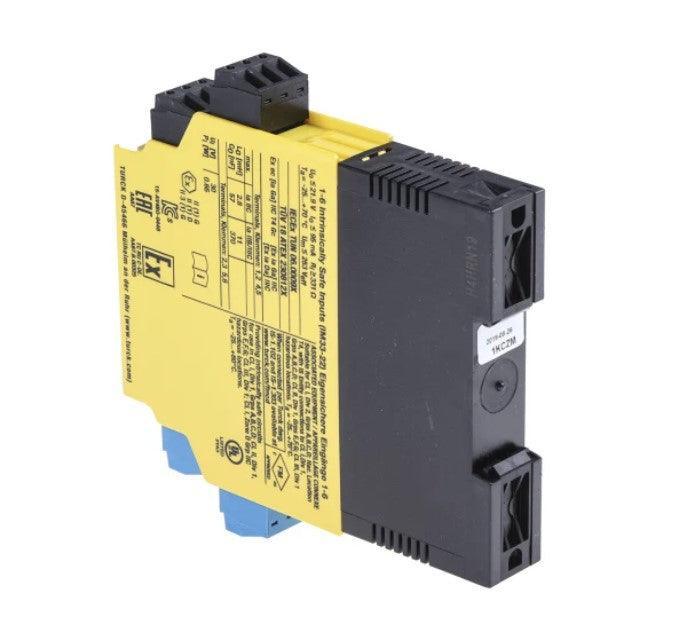

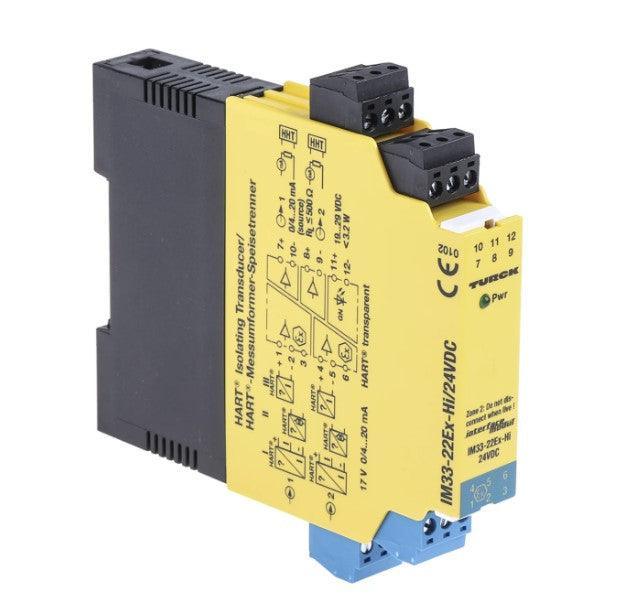

Transmitter supply isolator, single-channel or dual-channel, suitable for HumiGuard® HT130 or HumiGuard® HT131

SKU: 1385

Description

✅ Transmitter supply isolator, 1-channel or 2-channel

✅ Supply of transmitters in 2-wire technology with HART communication and
Connection to active 2-wire and passive 3-wire transmitters
✅ Input circuit: 0/4 ... 20 mA
✅ Output circuit: 0/4 ... 20 mA
✅ SIL2

✅ Removable terminal blocks, screwable, with 2 mm test socket
✅ Galvanic isolation on all sides

Input protected against polarity reversal

✅ ATEX, IECEx, UL, CFMUS, TR CU, CCEO
Use in Zone 2

Number of channels

1-channel 2-channel

Product variants

€281,54

Shipping will be charged at checkout.

Delivery time symbol

Delivery time: Available in 2-3 days

Operating instructions EN: Download

Operating instructions EN: Download

Data sheet DE: Download

Data sheet EN: Download

Specification

Device type

Transmitter supply isolator
Protection class evaluation unit

IP20
Output signal

Analog (HART transparent)
Analog input

Analog input (HART transparent)
Spannungsversorgung

24 V DC
Electrical connection

4 x 3-pole removable terminal blocks with test socket, reverse polarity protected, screw connection
ATEX certification

ATEX, IECEx, UL, cFMus, TR CU, TIIS, CCOE
SIL level

SIL2

Transmitter supply isolator, single-channel or dual-channel, suitable for HumiGuard® HT130 or HumiGuard® HT131

From €281,54

✅ Transmitter supply isolator, 1-channel or 2-channel

✅ Supply of transmitters in 2-wire technology with HART communication and
Connection to active 2-wire and passive 3-wire transmitters
✅ Input circuit: 0/4 ... 20 mA
✅ Output circuit: 0/4 ... 20 mA
✅ SIL2

✅ Removable terminal blocks, screwable, with 2 mm test socket
✅ Galvanic isolation on all sides

Input protected against polarity reversal

✅ ATEX, IECEx, UL, CFMUS, TR CU, CCEO
Use in Zone 2
