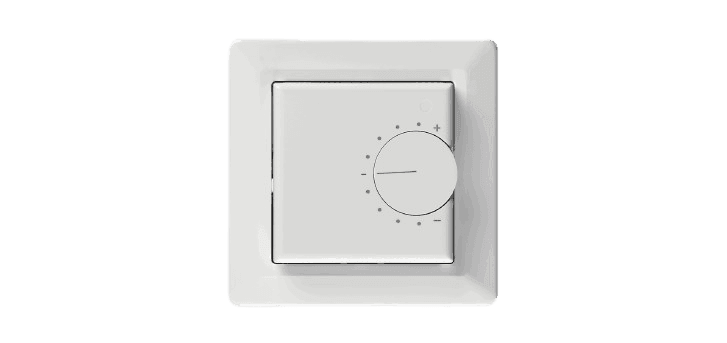

ETFWP-998 - Room Control Panel with Temperature Sensor
SKU:
1502
Description
Description
Temperature sensor: PT-1000
Supply voltage: 10 V DC
Potentiometer: 10 kΩ
Potentiometer output: 0 – 10 V DC
Scale range: +/- with 8 points
Electrical connection: Max. 1.5 mm², screw terminals
Operating ambient temperature: -10 to +50 ⁰C
Dimensions: 84 x 84 x 29 mm
Protection class: IP30
Weight: 70 g
ETFWP-998 - Room Control Panel with Temperature Sensor is in stock and will ship as soon as it is back in stock
€132,40
Base price
/
Not available
Shipping will be charged at checkout.
Availability for pickups could not be loaded
Specification
Specification
-
Special featuresPotentiometer: 10 kΩ
-
Output signalAnalog output
-
Weight
-
Dimensions84 mm × 84 mm × 29 mm
-
Power supply10 V DC
-
Type of sensor elementPt1000
-
Ambient temperature-10 ... 50°C
-
