EX-protected LED luminaires in manual or tubular version for EX zones 1, 2, 21, 22
Description
Description
Suitable for ATEX zones 1, 2, 21, 22

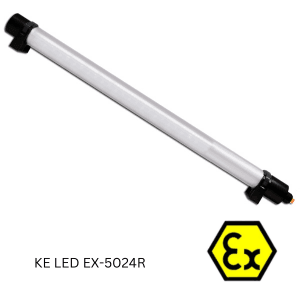

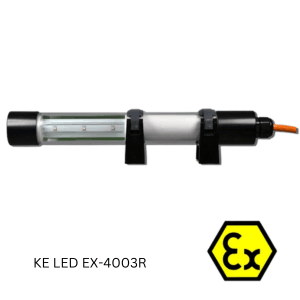

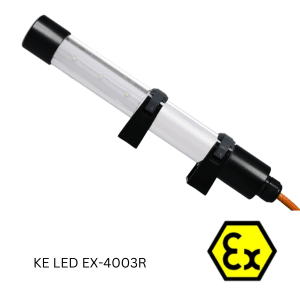

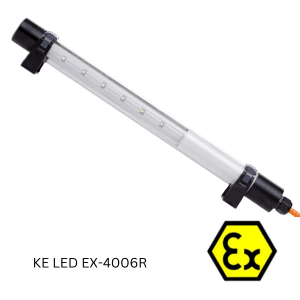

EX-protected tube and machine light for installation in vehicles, machines and industrial plants, end caps made of anodized aluminium

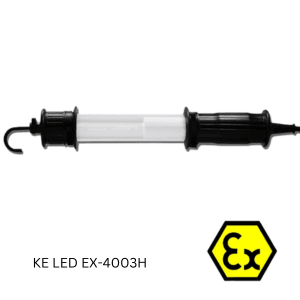

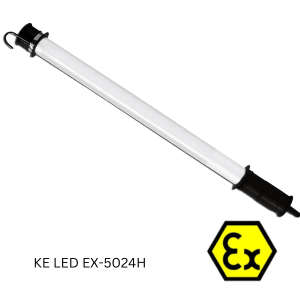

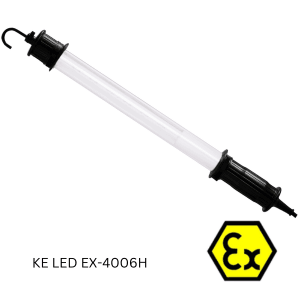

✅ o r optionally as a compact, EX-protected hand lamp for inspection and service work, end caps made of neoprene handle, shock-protected and cold-insulating, with hook for hanging up
✅ Various voltages and luminous fluxes available, (max. lumen at 24V)

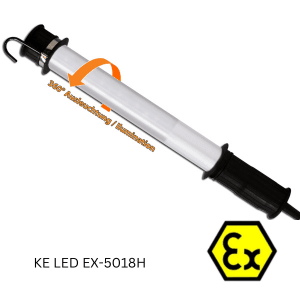

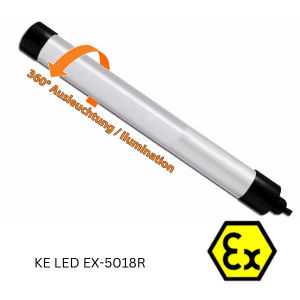

✅ KE-LED-EX 5018 variant with 360° omnidirectional light distribution
IP68 (dust & waterproof 50m/5h)
✅ with 10 m cable (without plug)

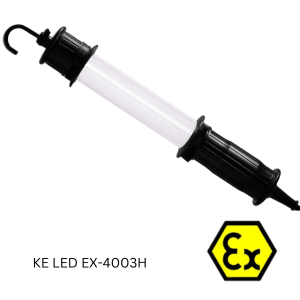

EX-protected LED lights in hand-held or tube version for EX zones 1, 2, 21, 22 - Hand-held light / 230 V AC / 255 lm - KE-LED-EX 4003 is in stock and will be shipped as soon as it is available again
Delivery time: Available in 1-2 weeks
Availability for pickups could not be loaded
Operating instructions EN: Download
Operating instructions EN: Download
Data sheet DE: Download
Data sheet EN: Download
Specification
Specification
-
Device typeATEX luminaires
-
Enclosure protection classIP68
-
Luminous flux255 lm, 600 lm, 600 lm, 1000 lm, 1650 lm
-
Light color6500K
-
Color rendering index CRI>70
-
Housing materialProtective tube: Polycarbonate, End caps: Aluminum (tube light), End caps: Neoprene (hand lamp)
-
Housing materialProtective tube: Polycarbonate, End caps: Aluminum (tube light), End caps: Neoprene (hand lamp)
-
Weight
-
Electrical connection10 m cable without plug
-
Ambient temperature-20°C ... 50°C
-
ATEX certificationII 2 G Ex eb mb op is IIC T4 Gb, II 2 D Ex tb op is IIIC T105° Db IP68
-
Country of origin
-
Service life>50.000h
