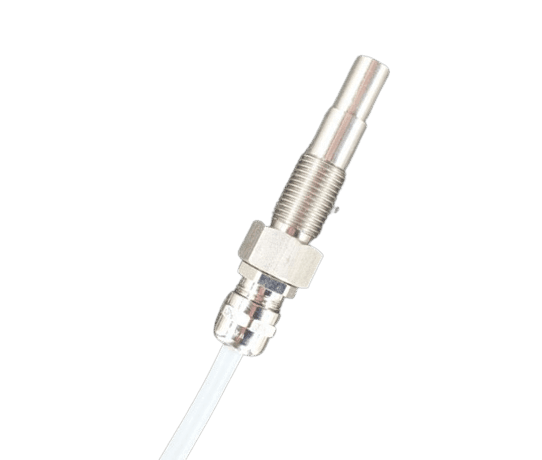

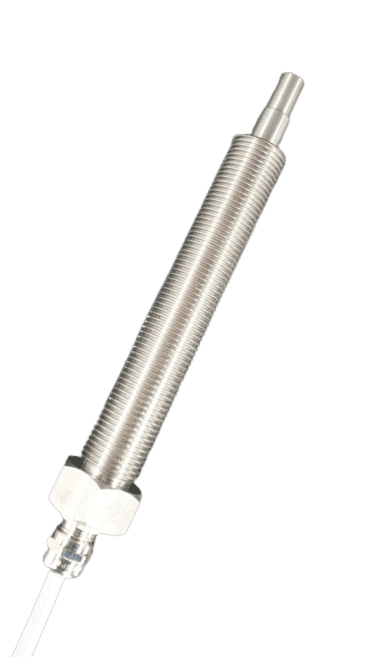

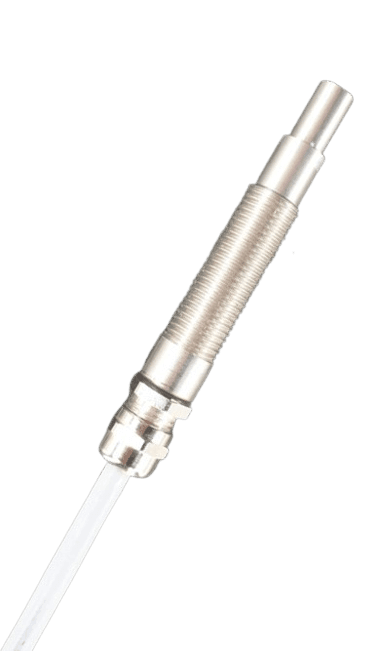

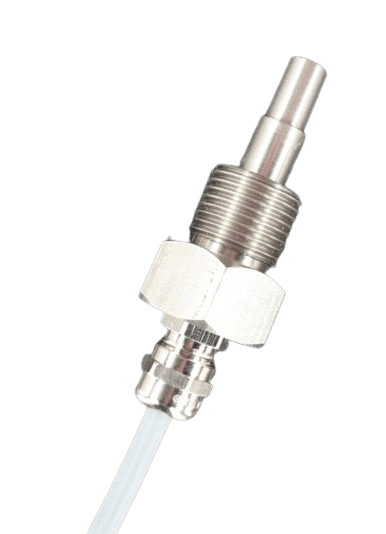

Sensor F6

SKU: 76105/25

Description

Immersion depth

25 mm; G1/4-inch process connection 46 mm; G1/2-inch process connection 48 mm; G1/4-inch process connection 70 mm; M14 x 1.5 Process connection 150 mm; G1/2-inch process connection

Product variants

€195,80

Shipping will be charged at checkout.

Specification

Medium

Gases, liquids
Device type

Flow sensor
Device type

Sensor
Flow measuring range

Air: 0.5 m/s ... 20 m/s, Water: 0.05 m/s ... 3 m/s
Media temperature

-10 ... 80°C
Sensor protection class

IP67
Immersion depth

25 mm, 46 mm, 48 mm, 68 mm, 150 mm
Process connection

G1/2 or G1/4
Material sensor

Stainless steel 1.4305
Compressive strength

20 bar
Electrical connection

Standard cable length 2.5 m, Special lengths on request 3 x 0.5 mm²
Temperature gradient

15K/min
Certificates

CE, Type-tested TÜV Nord according to DIN EN 61010-1 2011-07
Customs tariff number

90 26 80 20
HS Code

90 26 80
