FlowGuard® FS400 - Strömungsüberwachung flüssiger Medien mit Analog- (4 ... 20 mA) und/oder Schaltausgang

SKU: 1286/A/65

Description

✅ Strömungswächter für flüssige Medien im Bereich von 4 … 400 cm/s mit Relais oder Analog- (4 … 20 mA) und Statusausgang (PNP oder NPN) zur Überwachung einer Durchflussschwelle

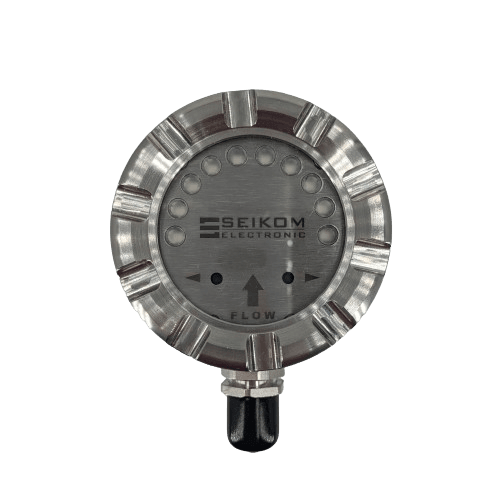

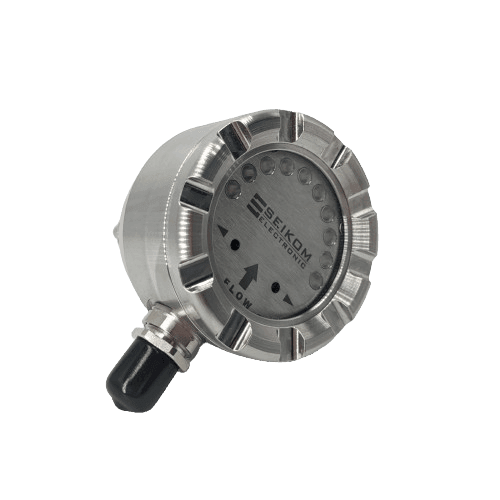

✅ Ten LEDs indicate flow rate and contact closure

✅ Equipped with 2 control buttons for setting the switching point

✅ Erhältlich mit 65 mm, 125 mm und 175 mm Eintauchtiefe

✅ Robust design for industrial environments, IP67

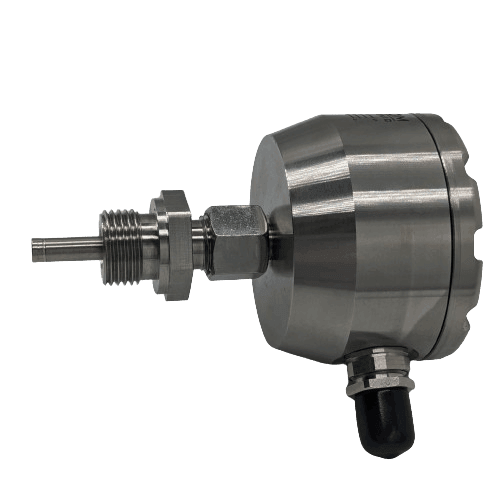

✅ Process connection: according to DIN2353, suitable for adapters G1/2-inch or G1/4-inch (not included in the scope of delivery), adapters for NPT1/4-inch, M14x1.5, terminal DN25 and terminal DN50 also available on request)

✅ Areas of application: Water industry, agriculture, biogas plants, food industry, power plants and many more.

✅ alternativ auch als DNV-Version, in Edelstahl nach DIN 1.4410

Immersion depth
Ausgänge:
DNV-Version (Material DIN 1.4410)
€327,00
Shipping will be charged at checkout.
Delivery time symbol Delivery time: Selected variants available immediately

Data sheet DE: Download

Specification
  • Medium
    Liquids
  • Device type
    Compact flow device
  • Device type
    Compact device including sensor (permanently mounted)
  • Flow measuring range
    0.04 m/s ... 4 m/s
  • Flow measurement accuracy
    ±0.02 ... 0.08 m/s
  • Media temperature
    0 ... 80°C
  • Display
    10 three-color LEDs for flow velocity, 1 LED for temperature
  • Switching point
    Stepless adjustment via 2 buttons
  • Protection class evaluation unit
    IP67
  • Sensor protection class
    IP67
  • Special features
    Empty pipe detection is displayed as 0 flow, Calorimetric measuring principle, optional relay output for media temperature, optional 2 relay outputs for flow bandwidth
  • Output signal
    Analogausgang, Schaltausgang, Temperatur Schaltpunkt
  • Switching output specification
    Schaltausgang aktiv PNP/ NPN; schaltet bei Strömung, Schaltausgang passiv (Relais); schaltet bei Strömung
  • Relay output specification
    Schaltausgang aktiv PNP/ NPN; schaltet bei Strömung, Schaltausgang passiv (Relais); schaltet bei Strömung
  • Immersion depth
    65, 125, 175, Special lengths on request
  • Process connection
    G1/2-inch
  • Housing material
    Edelstahl 1.4404, Edelstahl 1.4410; DNV-Version
  • Material sensor
    Edelstahl 1.4404, Edelstahl 1.4410; DNV-Version
  • Compressive strength
    63 bar
  • Housing material
    Edelstahl 1.4404, Edelstahl 1.4410; DNV-Version
  • Weight
    347 g
  • Housing dimensions
    91 mm x 74 mm x 60 mm
  • Dimensions
    91 mm x 74 mm x 60 mm
  • Power supply
    24 V DC ±10%
  • Electrical connection
    M12 x 1 / 4 pin connector
  • Power consumption max
    1.5 ... 4 VA
  • Current and contact load capacity
    60 V, 130 mA, 500 mW, SSR, passive, potential-free, max. 350 V AC/DC, 150 mA, 400 mW
  • Ambient temperature
    -10... 55°C
  • Optimal run-in distance
    >5 DN
  • Optimal run-out distance
    >3 DN
  • Certificates
    CE
  • ATEX certification
    None
  • SIL level
    none
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS Code
    90 26 80
