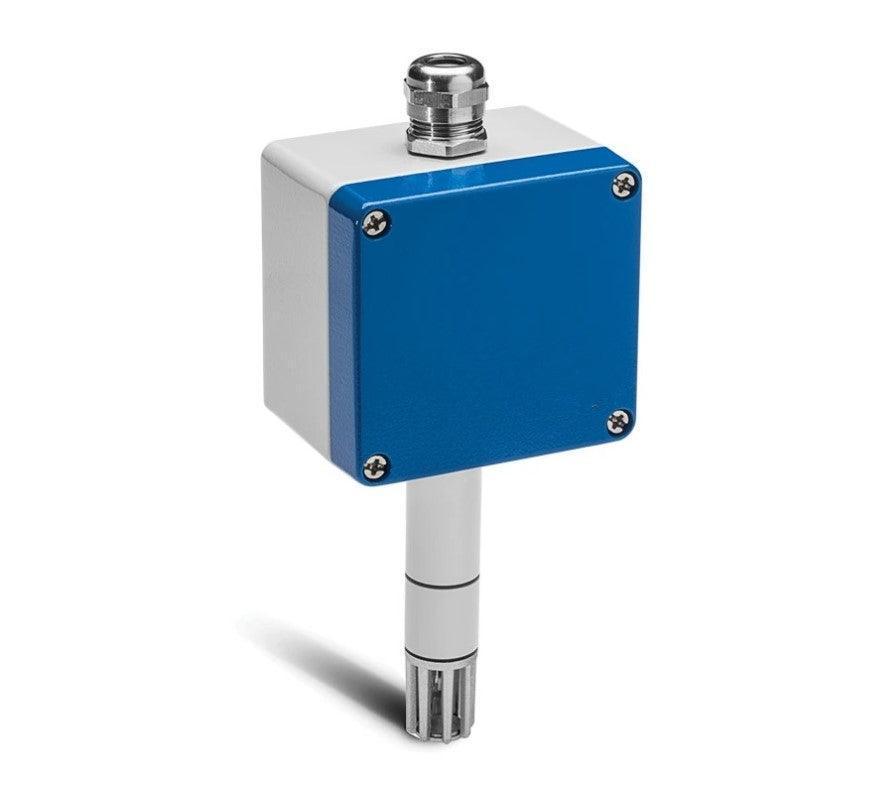

HumiGuard® HT131 - Humidity and temperature transmitter for ATEX zones 2, 1 & 0, dual-channel

SKU: 1497/K

Description

S pecially developed and approved for measuring humidity and temperature in hazardous areas and areas with combustible dust (zones 1/2G and 2D)

✅ High-precision transmitter with an accuracy of ±2% RH

Versatile application areas in ambient temperatures from -40 to 80°C

Application examples: Paint shops, oil rigs, food industry , hazardous goods warehouses, pharmaceutical or chemical industry

Device type
€531,96
Shipping will be charged at checkout.

Specification

  • Medium
    Air, non-aggressive
  • Device type
    Humidity and temperature transmitter
  • Device type
    Compact/duct version, wall version
  • Media temperature
    -40 ... 80°C
  • Measuring range rel. humidity
    0 ... 100% rH
  • Measuring accuracy rel. humidity
    MB 5 ... 95% rF, bei 10 ... 40°C: ±2.0% rF, bei T<10°C, T>40°C … 0,1%/K zusätzlich
  • Protection class evaluation unit
    IP66
  • Sensor protection class
    IP65
  • Special features
    Recommended transmitter power supply unit: IM33-22Ex-Hi/24V DC (dual-channel) Accessories: Cable gland with increased safety required for sensor installation in partition wall barrier, cable between sensor and transmitter power supply unit: NF14 (metro radio), max. 200 m, max. capacity 20 nF/100 m
  • Output signal
    Analog output
  • Immersion depth
    Duct version: 194 mm, Wall version: 73 mm
  • Process connection
    M25 x 1.5, clamping range Ø11.5 ... 15.5 mm, Accessories: Cable gland with increased safety, required for sensor installation in partition barrier
  • Housing material
    Die-cast aluminum
  • Material sensor
    Stainless steel
  • Compressive strength
    25 bar
  • Housing material
    Die-cast aluminum
  • Weight
    Duct version: approx. 470 g; wall version: approx. 380 g
  • Housing dimensions
    75 mm x 80 mm x 57 mm
  • Diameter
    Ø15 mm
  • Power supply
    13 ... 24 V DC, intrinsically safe, max. input voltage: 24 V DC max. input current: 100 mA
  • Electrical connection
    Cable gland: M16 x 1.5, clamping range Ø3 ... 7 mm, tightening torque 4 Nm, recommended transmitter power supply unit: IM33-11Ex-Hi/24 V DC (single-channel)
  • Power consumption max
    max. input power: 780 mW
  • Recommended cable cross-section
    NF14 (metro radio), max. 200 m, max. capacity 20 nF/100 m
  • Protection class
    II
  • Type of sensor element
    Pt 100 Class B
  • Ambient temperature
    -40 ... 80°C
  • Storage temperature
    -40 ... 80°C
  • Certificates
    CE, EC type examination certificate, IBExU 07 ATEX 1114
  • ATEX certification
    II 1/2 G Ex IIC T4 Ga/Gb, II 2D Ex ia IIIC T95°C Db, -40°C ≤Ta ≤80°C, Approved for use in potentially explosive atmospheres in accordance with EC type examination certificate, IBExU 07 ATEX 1114
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

HumiGuard® HT131 - Humidity and temperature transmitter for ATEX zones 2, 1 & 0, dual-channel

€531,96

S pecially developed and approved for measuring humidity and temperature in hazardous areas and areas with combustible dust (zones 1/2G and 2D)

✅ High-precision transmitter with an accuracy of ±2% RH

Versatile application areas in ambient temperatures from -40 to 80°C

Application examples: Paint shops, oil rigs, food industry , hazardous goods warehouses, pharmaceutical or chemical industry

Availability

Power consumption

Specification Response time (s)

Minimum pipe diameter

Measuring range temperature Filter

HS Code

90 26 20

Output power min.

Moisture resolution

Analog output specification

Output 1 humidity: 4 ... 20 mA, Output 2 temperature: 4 ... 20 mA

Product type Flow

Sensor protection class

IP65

Immersion depth

Duct version: 194 mm, Wall version: 73 mm

Accuracy of the atmospheric pressure

Weight

Duct version: approx. 470 g; wall version: approx. 380 g

Insulation resistance

Material connection head

Material sensor

Stainless steel

Response time

Enclosure protection class

Type of sensor element

Pt 100 Class B

Ambient temperature

-40 ... 80°C

ATEX certification

II 1/2 G Ex IIC T4 Ga/Gb, II 2D Ex ia IIIC T95°C Db, -40°C ≤Ta ≤80°C, Approved for use in potentially explosive atmospheres in accordance with EC type examination certificate, IBExU 07 ATEX 1114

Fastening strap specification

Housing dimensions

75 mm x 80 mm x 57 mm

Device type

Compact/duct version, wall version

Device type

Humidity and temperature transmitter

Sensor cable length

Conformity

Housing material

Die-cast aluminum

Temperature measuring range

Temperature measuring accuracy

bei 23°C: ±0.2K, bei ҂ 23°C: ±0.3K, bei T <10°C oder >40°C zusätzlich ±0,007K/K

Product type Temperature

Silver level

Ambient temperature Device

Operating pressure

Medium

Air, non-aggressive

Pressure measuring range

Product type Print

Test mark

Switching differential

Switching capacity

Switching point

Operating voltage

Digital output

Own consumption

Measuring range CO₂

Measuring accuracy relative humidity

MB 5 ... 95% rF, bei 10 ... 40°C: ±2.0% rF, bei T<10°C, T>40°C … 0,1%/K zusätzlich

Product type Humidity

Reaction time measurement Co.

Power supply

13 ... 24 V DC, intrinsically safe, max. input voltage: 24 V DC max. input current: 100 mA

Manufacturer

Product type HVAC

Analog signal

Power consumption max

max. input power: 780 mW

Maximum pressure

Display

Electrical connection

Cable gland: M16 x 1.5, clamping range Ø3 ... 7 mm, tightening torque 4 Nm, recommended transmitter power supply unit: IM33-11Ex-Hi/24 V DC (single-channel)

Operating temperature

Product type fill level

Relay output specification

Load resistance

Ambient humidity

Ambient temperature Maximum Celsius

Ambient temperature (min. °C)

Compressive strength

25 bar

Media temperature

-40 ... 80°C

Product type

Process connection

M25 x 1.5, clamping range Ø11.5 ... 15.5 mm, Accessories: Cable gland with increased safety, required for sensor installation in partition barrier

Temperature gradient

Measuring resistor

Differential pressure max

Accuracy of the output signal LCD Modbus

Flow measuring range

Signal output

Process connection 1

Switching function with flow

Signal display with flow

Signal output flow

Analog output

Notes

Minimum switching capacity

Optimum run-out distance

Optimum run-in distance

Reproducibility of the output signal

Signal display circuit

Current and contact load capacity

Power supply tolerance

Overvoltage category

Pollution class

Analog input_CO_

Digital input

Measuring range relative humidity

0 ... 100% rH

Potentiometer

Potentiometer output

Scale range

Analog input

Analog input_CO2

Installation depth

Digital outputs

Digital inputs

Error inputs

Ambient temperature1

Color

Output signal

Analog output

Recommended cable cross-section

NF14 (metro radio), max. 200 m, max. capacity 20 nF/100 m

Signal output Sensor short circuit

Signal output sensor break

Outside diameter

Inner diameter

Thread

Temperature range

Lining

Diameter

Ø15 mm

Flow measurement accuracy

Setting range

Sensor response length

Capillary tube length

Protection class

II

Material

Measuring accuracy pressure relative

Temperature compensation

Country of origin

Germany

Vacuum resistance

Hysteresis

Repeatability

Material contact

Bursting pressure

Measuring range atmospheric pressure

Measuring range pressure V2

Short-circuit protection

Max Bürde

Reverse polarity protection

Accuracy of VOC measurement

Measuring range VOC

Media compatibility

Overload pressure

Alarm

Measuring range VOC1

Relay output

Power (kW)

Heat dissipation

Minimum load

Supply output

Cable trenches

Storage temperature

-40 ... 80°C

Fuse

Measuring accuracy_CO_

Front cover

Interface

Power supply

Efficiency

Long-term stability

Preset switching point

Customs tariff number

90 26 20 20

Pulley

Media temperature Max

Media temperature min
