HumiGuard® HT130 - Humidity transmitter for ATEX zones 2, 1 & 0

SKU: 1384

Description

  • Specially developed and approved for measuring
    of humidity in ATEX zones
  • Simple integration into existing systems
  • Versatile application areas in ambient temperatures
    from -40 to 80°C
  • Robust design with IP66
€481,20
Shipping will be charged at checkout.

Specification
  • Medium
    Air, non-aggressive
  • Device type
    Moisture transmitter
  • Device type
    Compact/duct version, wall version
  • Media temperature
    -40 ... 80°C
  • Measuring range rel. humidity
    0 ... 100% rH
  • Measuring accuracy rel. humidity
    MB 5 ... 95% rF, bei 10 ... 40°C: ±2.0% rF, T<10°C, T>40°C … 0,1%/K zusätzlich
  • Protection class evaluation unit
    IP66
  • Sensor protection class
    IP65
  • Special features

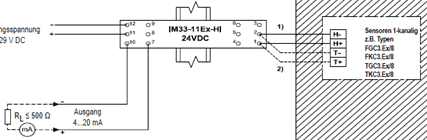

    Recommended transmitter power supply unit: IM33-11Ex-Hi/24 V DC (single-channel), Accessories: Cable gland with increased safety required for sensor installation in partition wall barrier, Cable between sensor and transmitter power supply unit: NF14 (metro radio), max. 200 m, max. capacity 20 nF/100 m
  • Output signal
    Analog output
  • Immersion depth
    Duct version: 194 mm, Wall version: 73 mm
  • Process connection
    Cable gland with increased safety required for sensor installation in partition barrier, M25 x 1.5, clamping range Ø11.5 ... 15.5 mm
  • Housing material
    Die-cast aluminum
  • Material sensor
    Stainless steel
  • Compressive strength
    25 bar
  • Housing material
    Die-cast aluminum
  • Housing dimensions
    75 mm x 80 mm x 57 mm
  • Diameter
    Ø15 mm
  • Power supply
    13 ... 24 V DC, intrinsically safe, max. input voltage: 24 V DC, max. input current: 100 mA
  • Electrical connection
    Cable gland: M16 x 1.5, clamping range Ø3 ... 7 mm, Tightening torque 4 Nm, Recommended transmitter power supply unit: IM33-11Ex-Hi/24 V DC (single-channel)
  • Power consumption max
    max. input power: 780 mW
  • Recommended cable cross-section
    NF14 (metro radio), max. 200 m, max. capacity 20 nF/100 m
  • Protection class
    II
  • Ambient temperature
    -40 ... 80°C
  • Storage temperature
    -40 ... 80°C
  • Certificates
    CE, EC type examination certificate, IBExU, 07 ATEX 1114
  • ATEX certification
    II 1/2 G Ex IIC T4 Ga/Gb, II 2D Ex ia IIIC T95°C Db, -40°C ≤Ta ≤80°C, Approved for use in potentially explosive atmospheres in accordance with EC type examination certificate, IBExU 07 ATEX 1114
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS Code
    90 26 20
