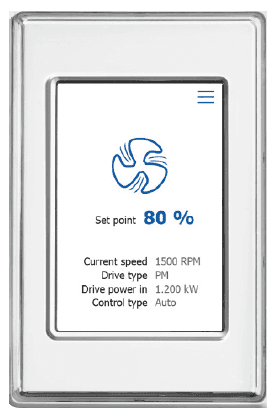

OJ-DV-HMI- 35T Handheld Control Panel for OJ Drives

SKU: 1192

Description

Service tool for OJ drives

Compatible with OJ Electronics DV, DC and DVULH

3.5-inch color touch

Modbus RTU connection

Power supply: 24 V DC

€208,70
Shipping will be charged at checkout.

Specification
  • Device type
    AHU controls
  • Measuring range rel. humidity
    0 ... 95 % rH
  • Enclosure protection class
    IP21
  • Power supply
    24 V
  • Electrical connection
    10 terminals (2.5 mm²)
  • Power consumption max
    900 mW
  • Ambient temperature
    -10 … 40°C
  • Manufacturer
    OJ Electronics

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

OJ-DV-HMI- 35T Handheld Control Panel for OJ Drives

€208,70

Service tool for OJ drives

Compatible with OJ Electronics DV, DC and DVULH

3.5-inch color touch

Modbus RTU connection

Power supply: 24 V DC
