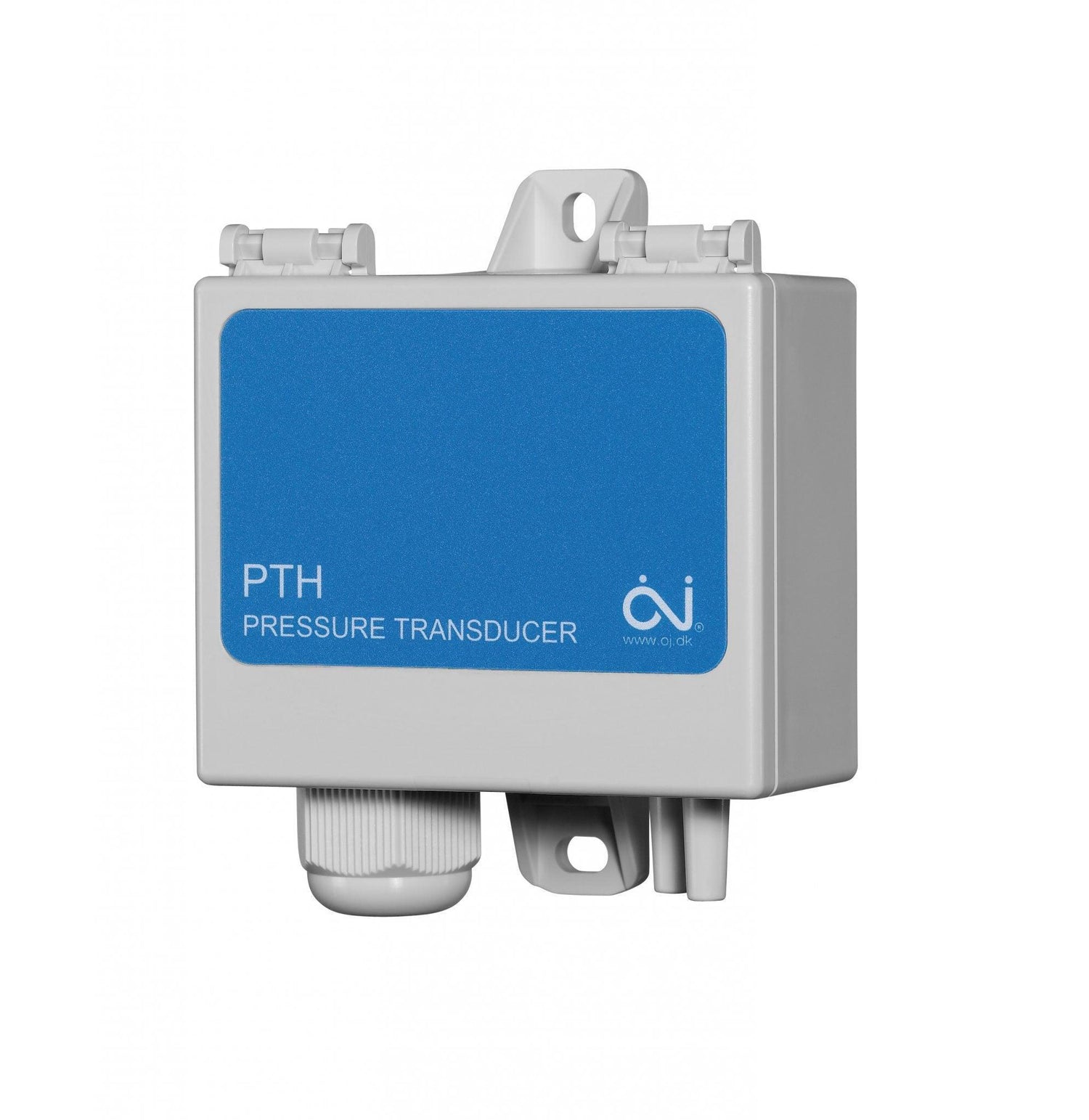

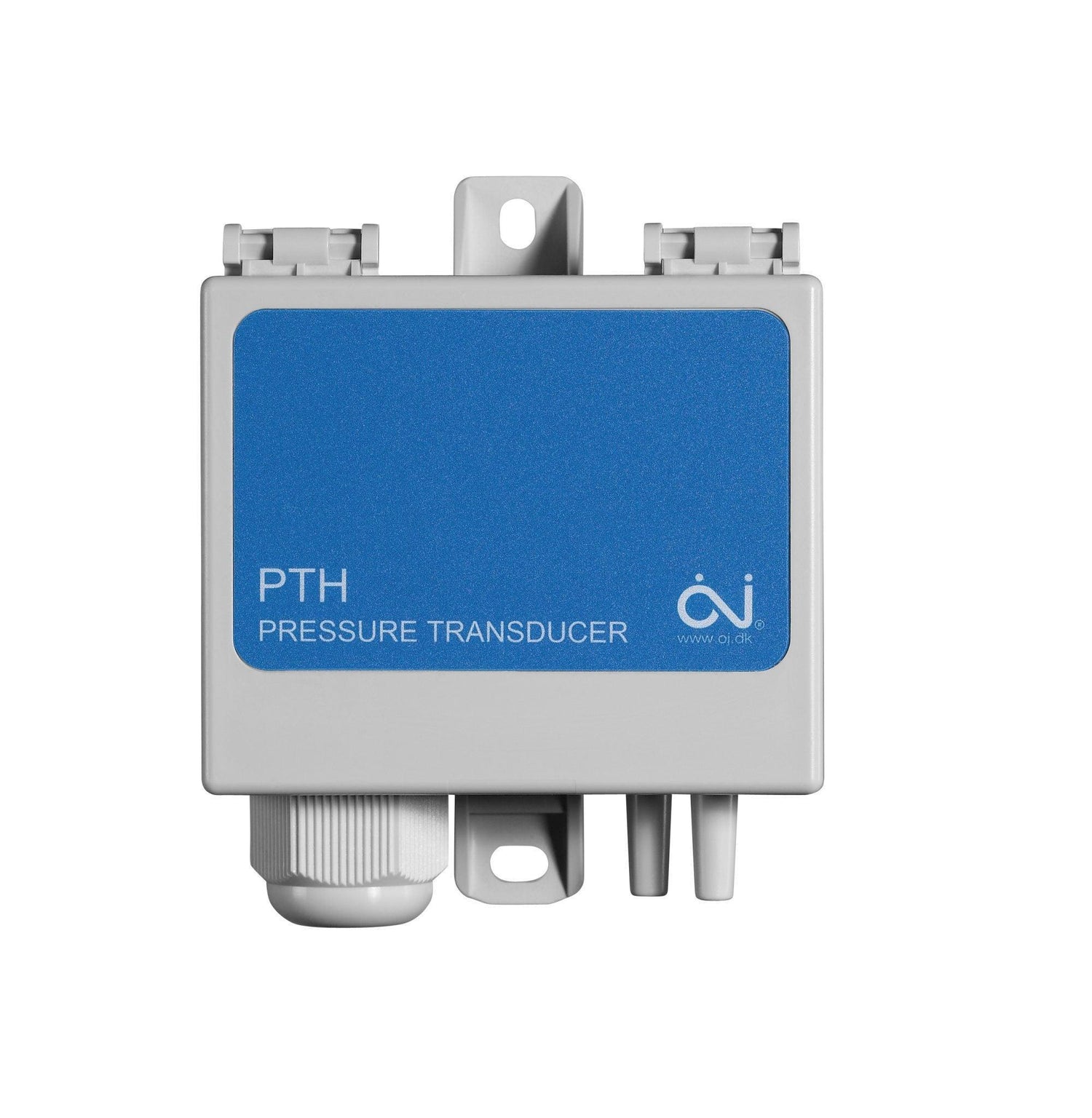

PTH-3202-CK Pressure transmitter up to 2,500 Pa with analog output (including PTH-CONNECTION-KIT (hose, 2 m; 2 x hose connection))

Gases

Differential pressure transmitter

Compact device

<0,5% x Messwert + 0,3% x Eingestellter Messbereichsendwert + 2,5 Pa

8

2,500 Pa

Green LED flashes when pressure is outside the set range

IP54

Damping (optional) of 0.4 s or 10 s 8 adjustable pressure ranges Semiconductor pressure elements without air flow to prevent the ingress of dust from the pipe Temperature-compensated measuring element so that optimum pressure measurement is achieved over the entire specified temperature range

Analog output

2 × Ø6.2 mm

Polyamide

30 kPa

Polyamide

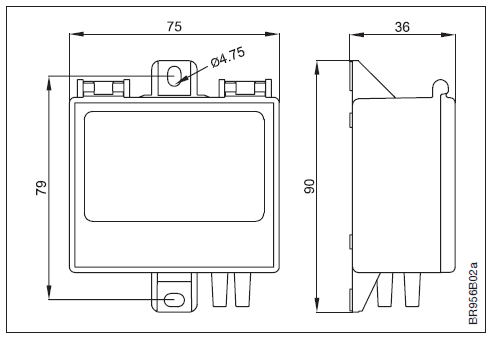

77 mm × 91 mm × 38 mm

13.5 ... 28 V DC

4 x screw terminals, max 1.5mm²

0,5 W

Maximale Last 0 … 10 V : >2,5 kΩ, Maximale Last 0 … 20 mA : <=450 Ω

-20 ... 70°C

-40 ... 70°C

10% ... 95% RH, non-condensing

CE

90 26 20 20

90 26 20 20

OJ Electronics
