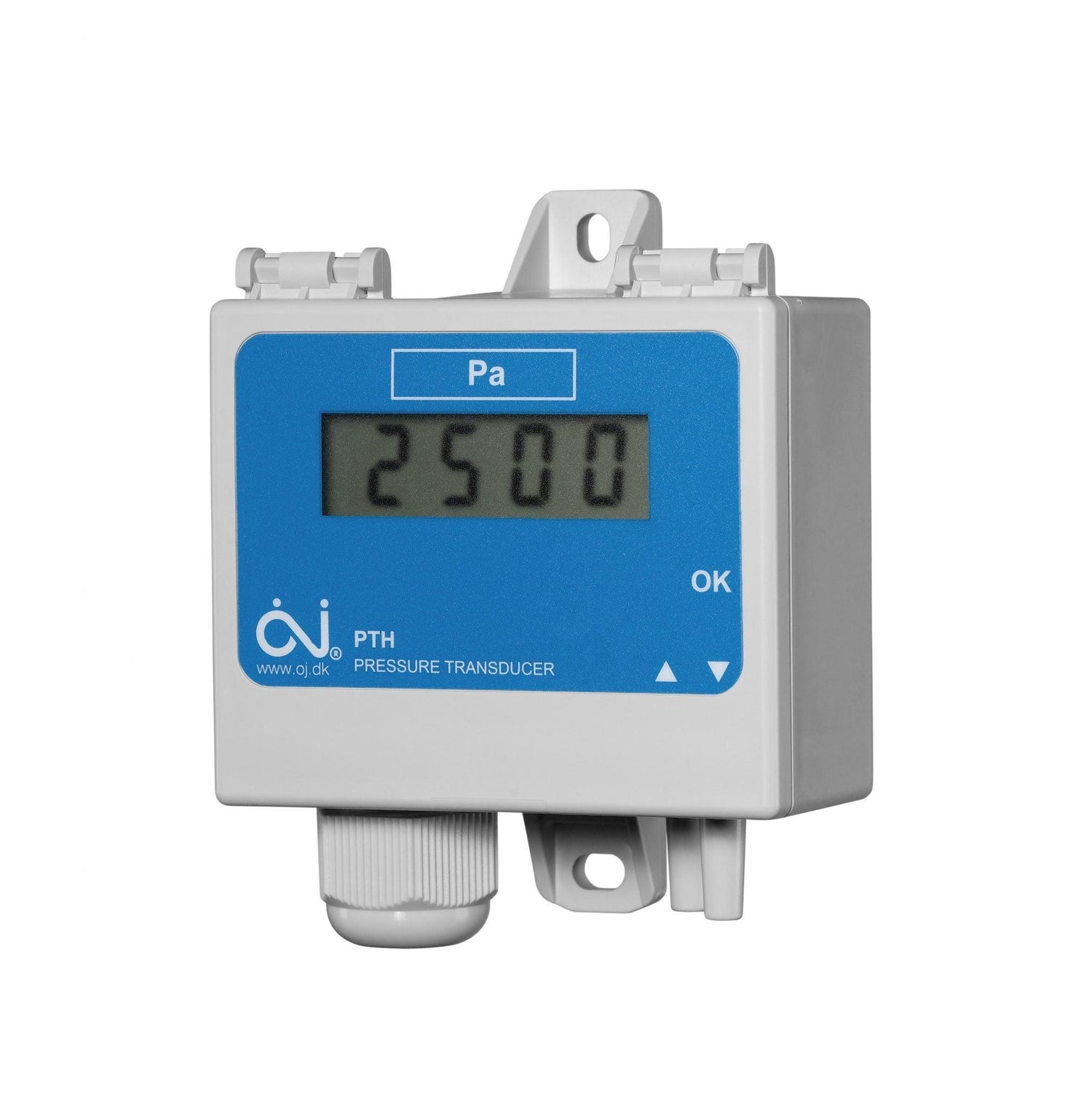

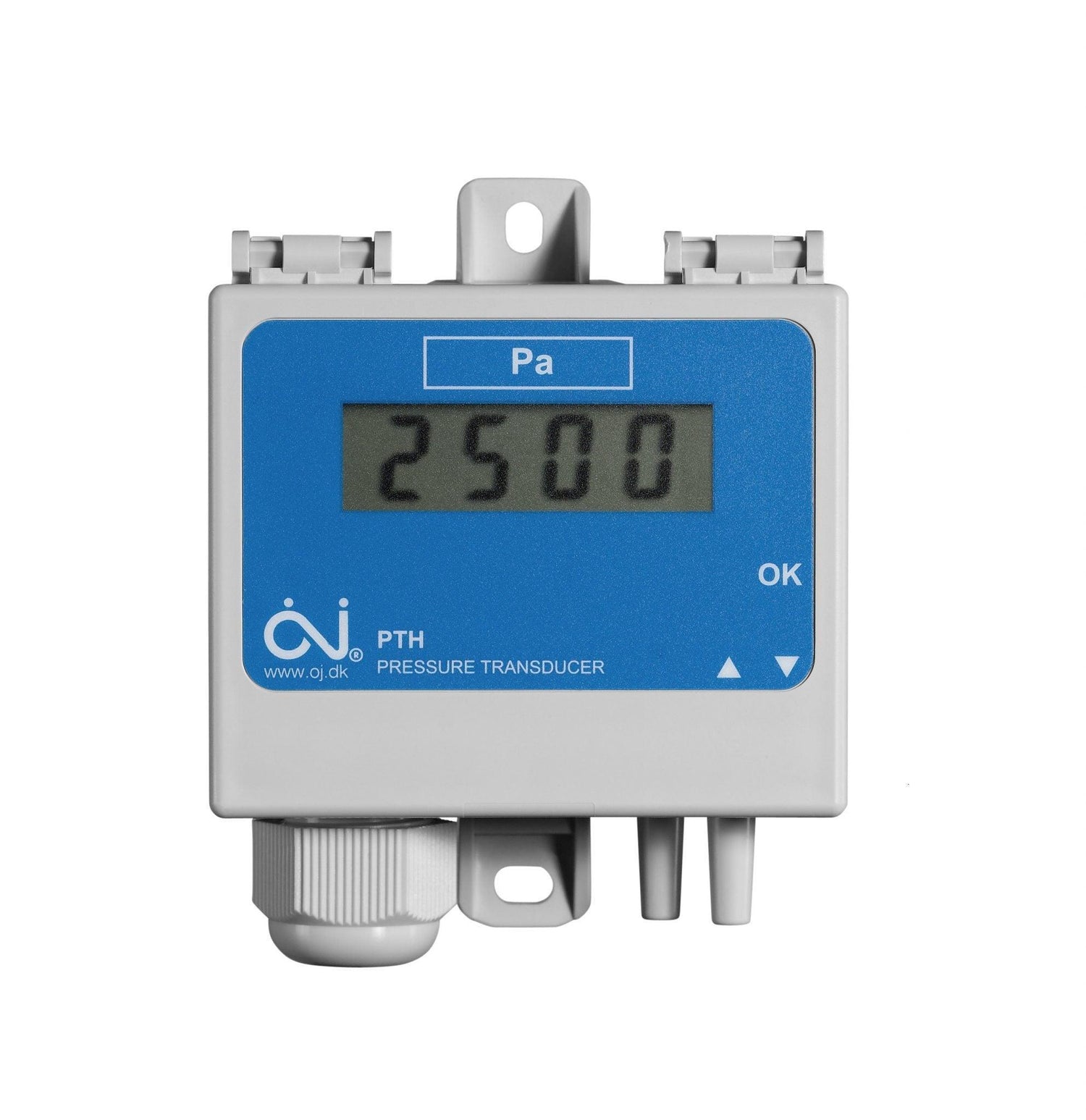

PTH-3202-DR Pressure transmitter up to 2,500 Pa with relay, analog output and LCD
Description
Description
✅ Precise measurements for industrial applications in the 0 - 2,500 Pa range
✅ Including relay output for monitoring a switching point
✅ Robust design for harsh environments
✅ Easy installation thanks to compact design
✅ Versatile, e.g. air flow monitoring using differential pressure, filter monitoring, clean room monitoring and process control
✅ Recommended accessories: Connection set consisting of hose connection and connections as well as DIN rail adapter
PTH-3202-DR Pressure transmitter up to 2,500 Pa with relay, analog output and LCD is in stock and will ship as soon as it is back in stock
Availability for pickups could not be loaded

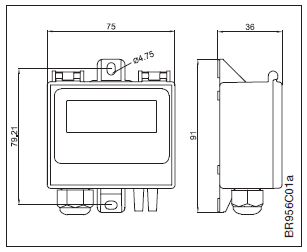

Technical drawing 3D: Download
Technical drawing 2D: Download
Operating instructions EN: Download
Operating instructions EN: Download
Specification
Specification
-
MediumGases
-
Device typeDifferential pressure transmitter
-
Device typeCompact device
-
Differential pressure measuring accuracy<0,5% x Messwert + 0,3% x Eingestellter Messbereichsendwert + 2,5 Pa
-
Number of measuring ranges Differential pressure8
-
Maximum measuring range end value2,500 Pa
-
DisplayLCD with 0.1 Pa resolution
-
Enclosure protection classIP54
-
Special featuresDamping (optional) of 0.4 s or 10 s 8 adjustable pressure ranges Semiconductor pressure elements without air flow to prevent the ingress of dust from the pipe Temperature-compensated measuring element so that optimum pressure measurement is achieved over the entire specified temperature range
-
Output signalAnalog output
-
Process connection2 × Ø6.2 mm
-
Housing materialPolyamide
-
Compressive strength30 kPa
-
Housing materialPolyamide
-
Dimensions77 mm × 91 mm × 38 mm
-
Power supply13.5 ... 28 V DC
-
Electrical connection4 x screw terminals, max 1.5mm²
-
Power consumption max0,5 W
-
Load resistanceMaximale Last 0 … 10 V : >2,5 kΩ, Maximale Last 0 … 20 mA : <=450 Ω
-
Ambient temperature-20 ... 70°C
-
Storage temperature-40 ... 70°C
-
Ambient humidity10% ... 95% RH, non-condensing
-
CertificatesCE
-
