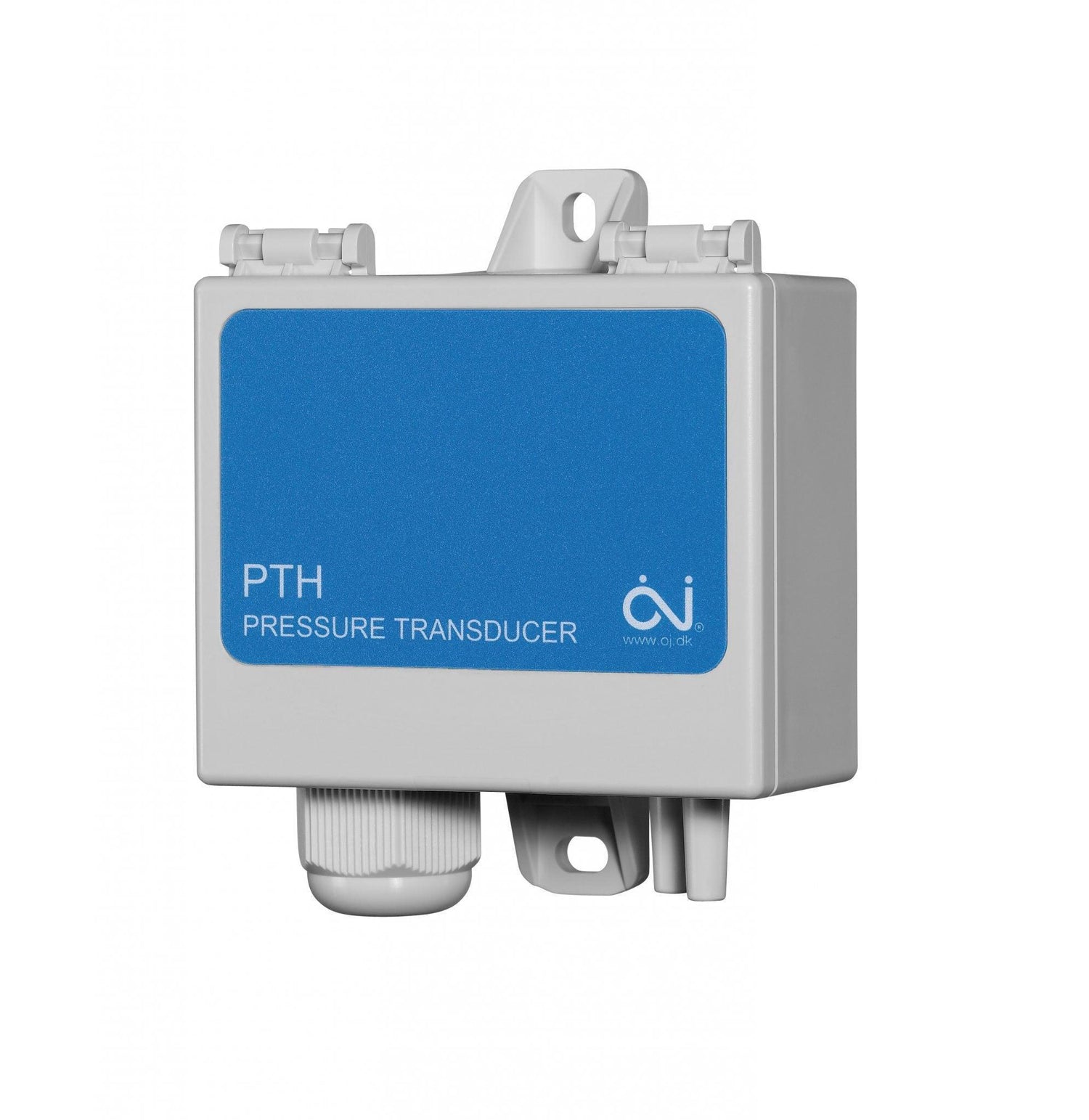

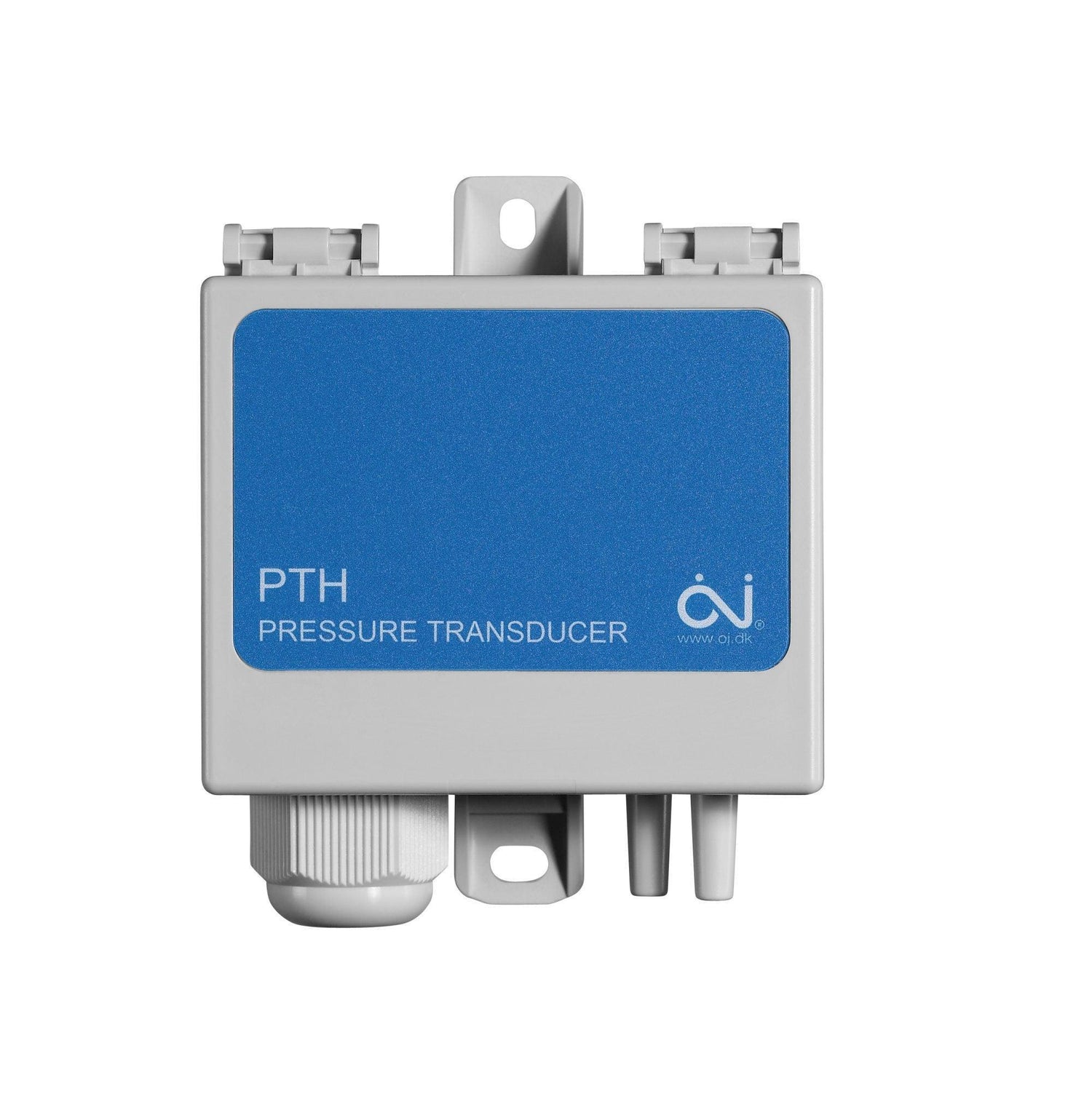

PTH-6202-CK Pressure transmitter up to 2,500 Pa with Modbus and Quickplug™ connection (including PTH-CONNECTION-KIT (hose, 2 m; 2 x hose connection))

Gases

Differential pressure transmitter

Compact device

<0,5% x Messwert + 2,5 Pa

Car

2,500 Pa

Green LED flashes when pressure is outside the set range

IP54

Damping (optional) of 0.4 s or 10 s 8 adjustable pressure ranges Semiconductor pressure elements without air flow to prevent the ingress of dust from the pipe Temperature-compensated measuring element so that optimum pressure measurement is achieved over the entire specified temperature range

Digital output

2 × Ø6.2 mm

Polyamide

30 kPa

Polyamide

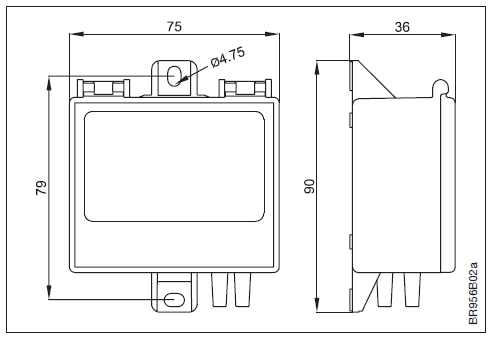

77 mm × 91 mm × 38 mm

13.5 ... 28 V DC

2 RJ12 6/6 connectors

0,5 W

-20 ... 70°C

-40 ... 70°C

10% ... 95% RH, non-condensing

CE

90 26 20 20

90 26 20 20

OJ Electronics
