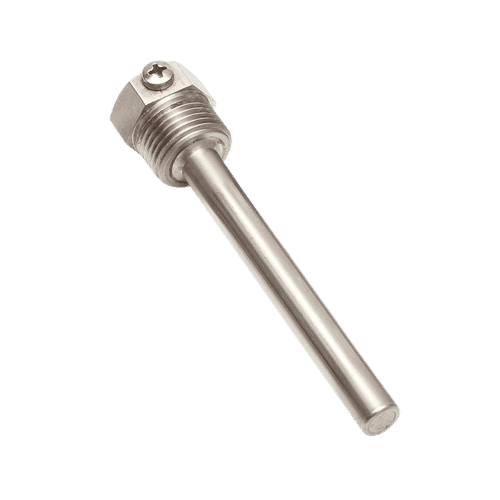

ThermGuard® Immersion Sleeve

SKU: 1321/50

Description

Thermowells are components that are usually screwed or welded into a pipeline. Their main purpose is to protect the measuring part of the sensors from the effects of the liquid being measured. By using thermowells, it is possible to replace the temperature sensors during the operation of the technological equipment.

Type: ThermGuard® thermowell for installation in pipes

Immersion depth of sensor: 50 mm, alternatively available with 100, 160, 220, 280, 400 mm

Material: Stainless steel 1.4301

Temperature range: -100 ... 450 °C

Immersion depth
€11,60
Shipping will be charged at checkout.

Specification

  • Temperature measuring range
    -100 ... 450°C
  • Temperature measuring accuracy
    -100 ... 450°C
  • Immersion depth
    50 mm, 100 mm, 160 mm, 220 mm, 280 mm, 400 mm
  • Process connection
    G 1/2"/OK22, M 20 x 1.5/OK22, M 27 x 2/OK30
  • Housing material
    Stainless steel
  • Housing material
    Stainless steel
  • Diameter
    6.2 mm (inside), 10 mm (outside)
