ThermGuard® - Temperature-current converter (4-20 mA)

SKU: 1302/F/100/0...400

Description

  • Temperature current transformer (4 ... 20 mA)

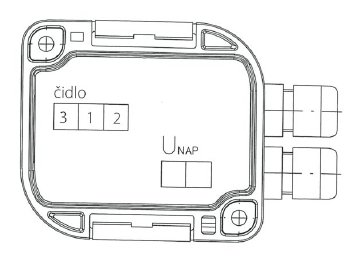

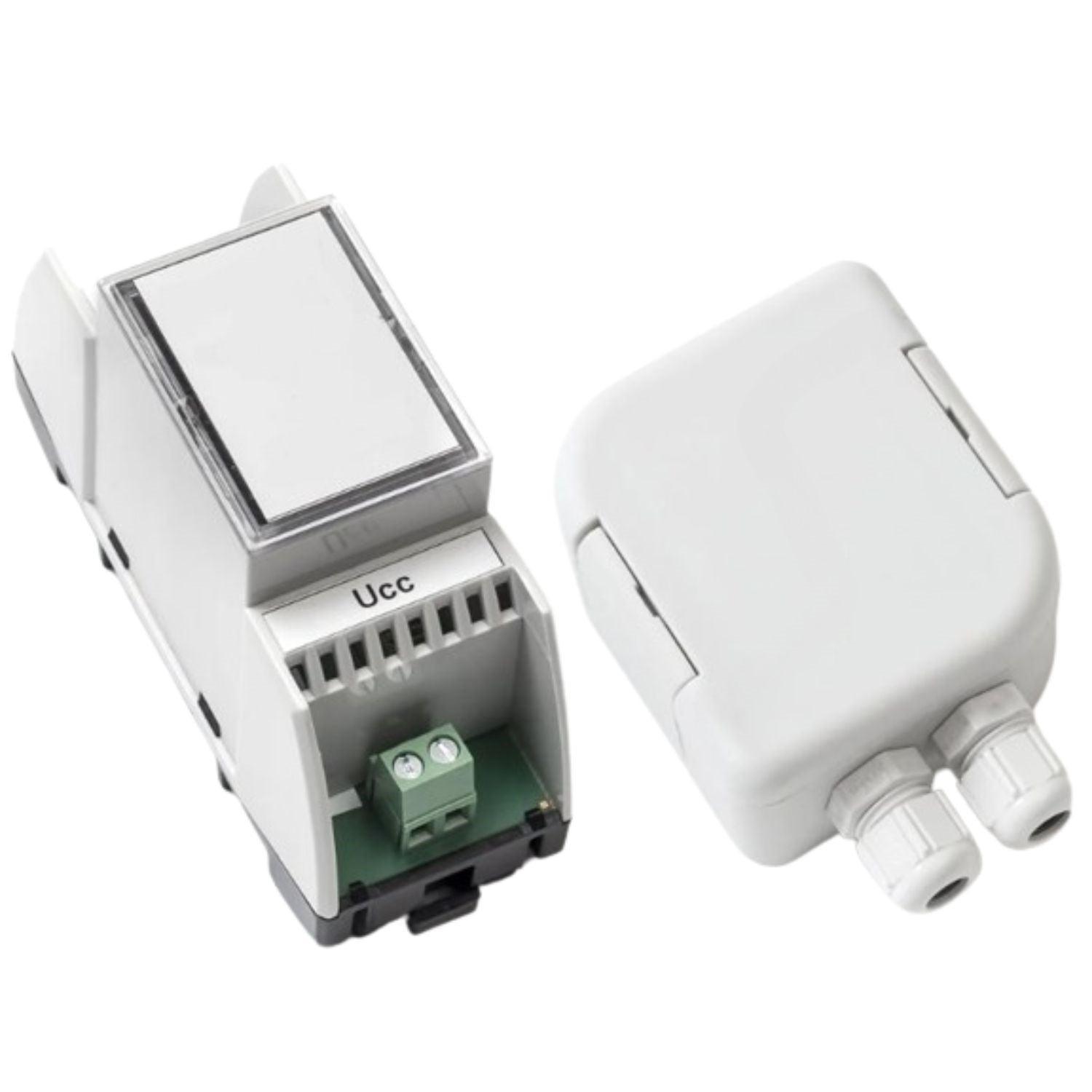

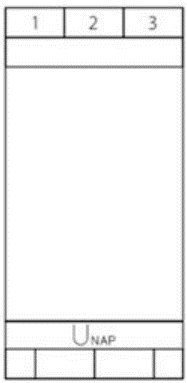

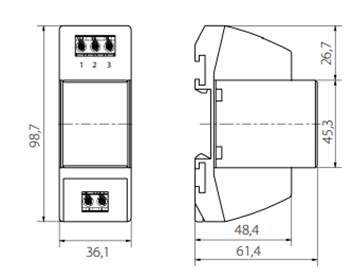

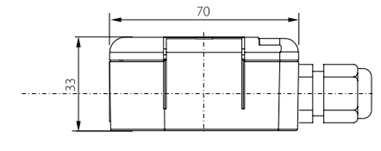

  • Available as a field device and control cabinet
  • Suitable for a measuring range of -30 ...400°C
  • Robust design, IP65
Type of sensor element
Temperature measuring range
Device type
€89,00
Shipping will be charged at checkout.

Specification
  • Device type
    Field device, switch cabinet
  • Temperature measuring range
    0 ... 400°C, -30 ... 60°C, 0 ... 35°C, 0 ... 100°C, 0 ... 150°C, 0 ... 250°C
  • Temperature measuring accuracy
    0 ... 400°C, -30 ... 60°C, 0 ... 35°C, 0 ... 100°C, 0 ... 150°C, 0 ... 250°C
  • Measuring range pressure atm.
    87 ... 107kPa
  • Enclosure protection class
    IP20, IP65
  • Output signal
    Analog signal
  • Housing material
    Polyamide, Tarflon
  • Housing material
    Polyamide, Tarflon
  • Weight
    150 g
  • Pressure max.
    1.10 bar
  • Power supply
    11 ... 30 V DC
  • Type of sensor element

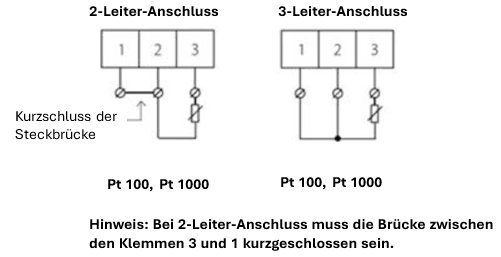

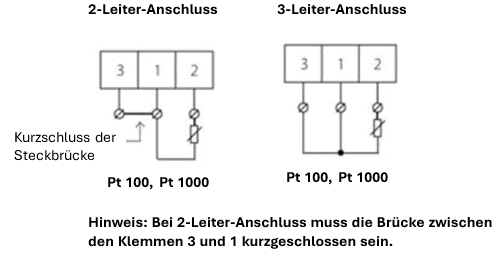

    Pt100, Pt1000
  • Ambient temperature
    -30 ... 70°C
