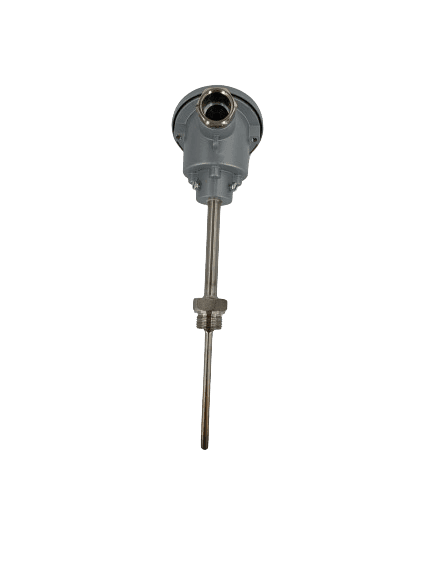

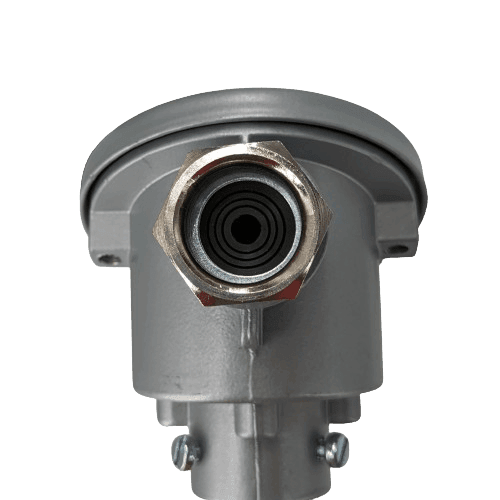

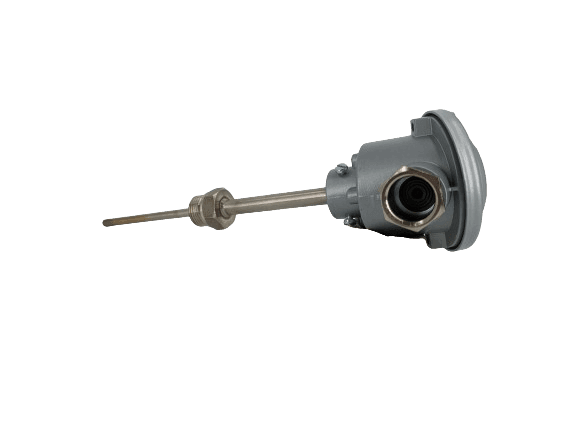

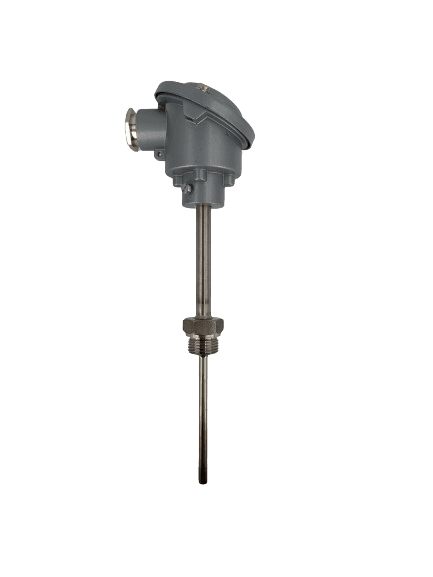

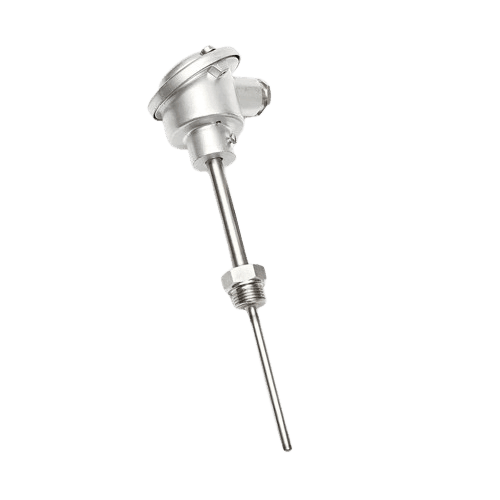

ThermGuard® TT330 - Duct/immersion sensor for gases and liquids up to 400 °C with 4...20 mA output

SKU: 1295/A/50/G0.5

Description

Design: Compact: Sensor and evaluation unit permanently installed

Media temperature range: -50 °C ... 400 °C

Protection class: IP54

Housing material: stainless steel DIN 1.4301

Adjustable measuring range optional: minimum interval 10 °C

Immersion depth
Process connection
€182,10
Shipping will be charged at checkout.

Specification
  • Device type
    Wall version
  • Temperature measuring range
    -50 ... 400°C
  • Temperature measuring accuracy
    -50 ... 400°C
  • Enclosure protection class
    IP 54 according to EN 60529
  • Setting range
    Optional, minimum in-terval of 10°C
  • Output signal
    Analog output
  • Signal output sensor break
    >22.7 mA
  • Signal output Sensor short circuit
    <3,2 mA
  • Material sensor
    Stainless steel (DIN 1.4301)
  • Compressive strength
    PN 63 (immersion sensor)
  • Weight
    250 g
  • Power supply
    24 V DC
  • Insulation resistance
    > 200 MΩ bei 500 V DC 25°C ± 3°C, Luftfeuchtigkeit: <85%
  • Insulation resistance
    > 200 MΩ bei 500 V DC 25°C ± 3°C, Luftfeuchtigkeit: <85%
  • Type of sensor element
    Pt1000/3850
  • Ambient temperature
    -25 ... 70 °C
  • Ambient humidity
    100% rH.
  • Ambient
    70 ... 107 kPa
  • Certificates
    CE
