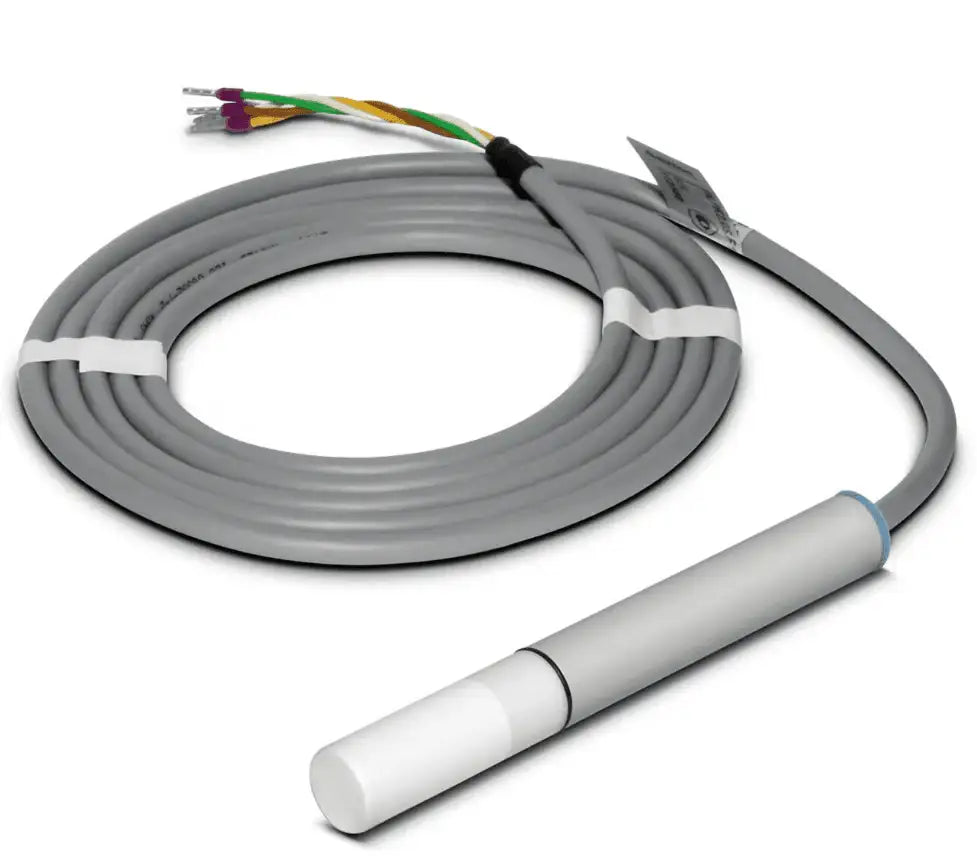

HumiGuard® HT601 - Humidity and temperature transmitter HVAC rod version
Away
€105,42
Basic price
/
Unavailable
✅ Sensors for humidity and temperature as rod version Ø12 mm, with analog output
✅ Transmitter for HVAC applications and moderate industrial conditions
✅ No additional housing
✅ Example of application: for controlling energy costs and building automation
Medium
Air, non-aggressive
Device type
Humidity and temperature transmitter
Device design
Rod version, Ø12 mm
Temperature range
0 ... 100°C,
-30 ... 70°C
Temperature accuracy
0 ... 100°C,
-30 ... 70°C
Medium temperature
-30 ... 80°C
Relative pressure accuracy
Atmospheric pressure range
Atmospheric pressure accuracy
Differential pressure range
Differential pressure accuracy
Relative humidity range
0 ... 100% rH
Relative humidity accuracy
30...80% rH, at 10 ... 40°C: ±3% rH,
<30% rF oder >80% rH at 10 ... 40°C: ±5% RH,
Influence of temperature at T<10°C oder >40°C typ. ±0.06% rH/K
Number of differential pressure ranges
Maximum measuring range limit
Protection class evaluation unit
IP65
Protection class sensor
Sensor or filter-dependent, with protective cage ZE07: IP20,
Standard: with membrane filter ZE08: IP30,
with PTFE sintered filter ZE05: IP65
Protection class housing
IP65
Special features
Sealing for increased requirements, e.g. condensation sealing against vibrations, PTFE sintered filter (IP65) on request
IK impact resistance rating
Color rendering index CRI
Max. differential pressure
product.metafields.custom.messgroesse1
Output signal
Analog output
Analog output specification
Switching output specification
Digital output specification
Sensor break output signal
Sensor short-circuit output signal
Relay output specification
Housing material
PC (light gray / white)
Sensor material
PC (light gray / white)
Housing dimensions
Ø12 mm x 95 mm
Fastening strap specification
Power supply
12 ... 30 V DC
Electrical connection
Cables, stranded wires with ferrules
Recommended cable cross-section
Load resistance
Output 0 ...10 V: >10 kΩ
Current and contact rating
Minimum switching capacity
product.metafields.custom.leistung Bürde max.
Reverse polarity protection
Sensor element type
calibrated sensor chip calHT
Ambient temperature
-30 ... 80°C
Storage temperature
-40 ... 85°C
Country of origin
Germany
Customs tariff number
90 26 20 20
Output signal accuracy LCD/Modbus
Signal output reproducibility
Switching function (flow)
Wet bulb temperature spec.
Dew point temperature spec.
Delivery time: Available in 1-2 weeks
