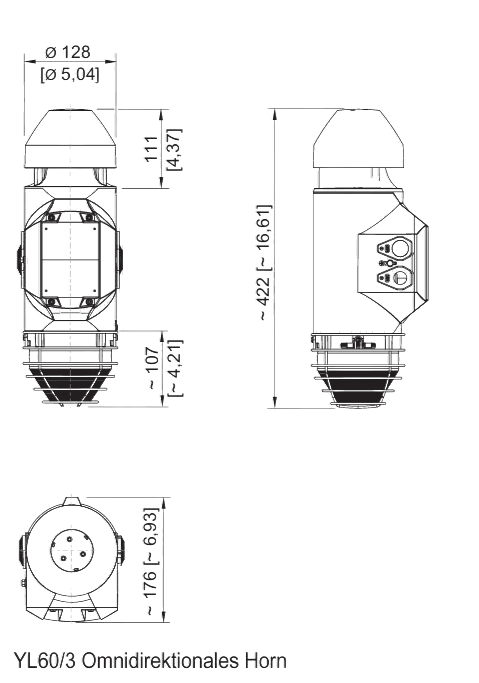

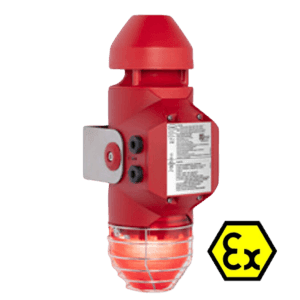

ATEX Acoustic-Optical Signal Device up to 114/120 dB(A) / XENON / LED / ALU
€1.225,70
Basic price
/
Unavailable
✅ Latest generation of acoustic-optical signal transmitters
✅ Ex d / Ex e enclosure types
✅ Optical solutions with 5–21 J xenon or, alternatively, high-performance LEDs with various light modes and 4 light channels
✅ Acoustic solutions with omnidirectional sound up to 114 dB(A)@1m or, alternatively, with a directional horn up to 120 dB(A)@1m, 4 tone channels, and 64 preconfigured tones
✅ 4 configurable power levels
✅ Stainless steel brackets, mounts, and protective grilles included
✅ EN54 / DNV compliant
✅ Various lens colors: red, or alternatively amber, blue, white, green, and yellow
✅ Power supply: 24 V DC, or 230 V AC
✅ Light source: XENON, or high-performance LED
✅ Feel free to contact us
Device type
Signal horn/light Ex-protected
Relative pressure accuracy
Atmospheric pressure range
Atmospheric pressure accuracy
Differential pressure range
Differential pressure accuracy
Relative humidity accuracy
Number of differential pressure ranges
Maximum measuring range limit
Protection class evaluation unit
Protection class housing
IP66
IK impact resistance rating
Color rendering index CRI
Max. differential pressure
product.metafields.custom.messgroesse1
Analog output specification
Switching output specification
Digital output specification
Sensor break output signal
Sensor short-circuit output signal
Relay output specification
Housing material
Aluminum, powder-coated, seawater-resistant ,
Horn material: PC/PBT,
Hood material: Polycarbonate, prismatic,
Protective cover material: Polycarbonate (PC protective cover),
Protective cage material: Stainless steel
Fastening strap specification
Power supply
12 ... 27.20 V
Electrical connection
Cable glands: 1 x M20 Ø 4 - 13 mm + 1 x M25 Ø 7 - 17 mm,
Connection terminals single-wire max. 4 mm²,
Fine-wire terminals max. 2.5 mm²
Recommended cable cross-section
Current and contact rating
Minimum switching capacity
product.metafields.custom.leistung Bürde max.
Reverse polarity protection
Ambient temperature
-40°C ... 70°C (T4)
Storage temperature
-60°C ... 70°C
ATEX certification
European Union (ATEX) IECEx United Kingdom,
II 2 G Ex db eb IIC T4 Gb,
EPS 22 ATEX 1 224X,
II 2 D Ex tb IIIC T100 °C Db,
ATEX (BVIS), IECEx (BVIS),
ATEX (EUK),
IECEx EPS 22.0046X,
Ex db eb IIC T4 Gb,
IECEx EPS 22.0046X,
Ex tb IIIC T100 °C Db
Color
Housing color: red, similar to RAL 3020
Output signal accuracy LCD/Modbus
Signal output reproducibility
Switching function (flow)
Wet bulb temperature spec.
Dew point temperature spec.
