PressGuard® PT402 Ex Pressure Transmitter with MODBUS Output, optionally with ATEX Certification
Away
€572,68
Basic price
/
Unavailable
✅ Pressure transmitter for precise pressure monitoring with MODBUS RTU protocol
✅ ATEX and IECEx certification available on request
✅ Durable and stable performance
✅ Versatile application options: Process industry for pressure control in pipelines and reactors, water and wastewater technology for pressure monitoring in treatment plants, for regulating pressure in heating, ventilation and air conditioning systems
Device type
Pressure sensor
Device design
Compact device
Medium temperature
-40 ... 120°C
Relative pressure range
Measuring ranges between -7 ... 7 mbar and 0 ... 1000 bar are freely selectable on request
Relative pressure accuracy
≤±0,075%
Atmospheric pressure range
Atmospheric pressure accuracy
Differential pressure range
Differential pressure accuracy
Relative humidity accuracy
Number of differential pressure ranges
Maximum measuring range limit
Display
LCD with backlight, 340° rotatable
Protection class evaluation unit
Protection class housing
IP66
IK impact resistance rating
Color rendering index CRI
Max. differential pressure
product.metafields.custom.messgroesse1
Output signal
Digital output
Analog output specification
Switching output specification
Digital output specification
Sensor break output signal
Sensor short-circuit output signal
Relay output specification
Housing material
Aluminum,
on request Stainless steel SS316
Pressure resistance
depending on the measuring range
Overpressure limit
depending on the measuring range, e.g: -15 ... 70 mbar: 0.5 bar 0 ... 1000 bar: 1200 bar

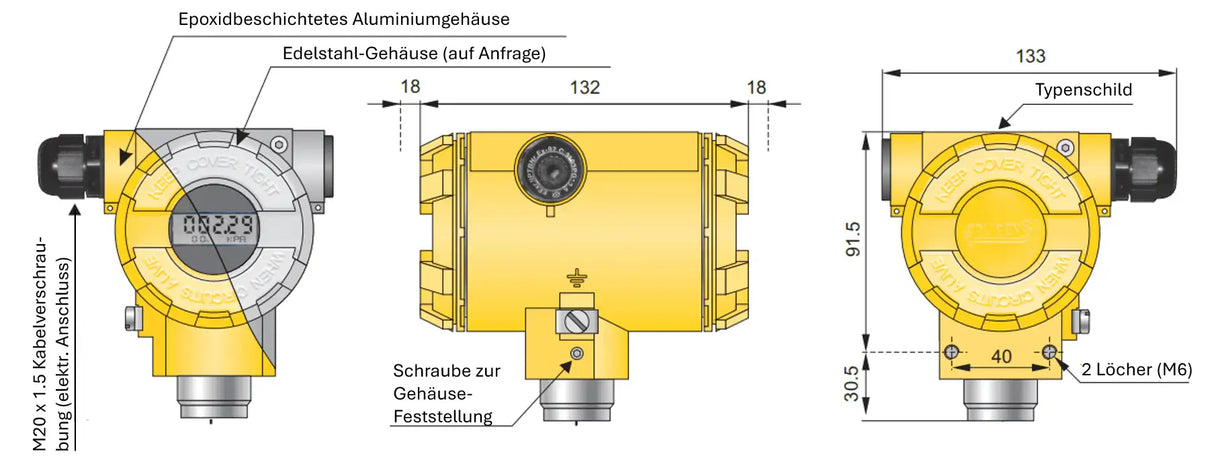

Housing dimensions
133 mm x 132 mm x 153 mm
Fastening strap specification
Power supply
11.5 ... 30 V DC
Electrical connection
Cable gland M20 x 1.5,
others on request
Recommended cable cross-section
Current and contact rating
Minimum switching capacity
product.metafields.custom.leistung Bürde max.
Reverse polarity protection
Ambient temperature
'-40 ... 85°C (Exd -40 ... 75°C)
Storage temperature
-40 ... 85°C
Temperature compensation
-25 ... 80°C
ATEX certification
II 1/2G Ex ia/db IIC T5/T4 Ga/Gb,
II 2D Ex ia/tb IIIC T100°C Db,
Ex ia/db IIC T5/T4 Ga/Gb ,
Ex ia/tb IIIC T100°C Db,
none
Customs tariff number
90 26 20 20
Output signal accuracy LCD/Modbus
Material contact
Stainless steel SS316L
Signal output reproducibility
Switching function (flow)
Wet bulb temperature spec.
Dew point temperature spec.
Accessories
Screw-in adapter,
reducers
Delivery time: Available in 3-4 weeks
