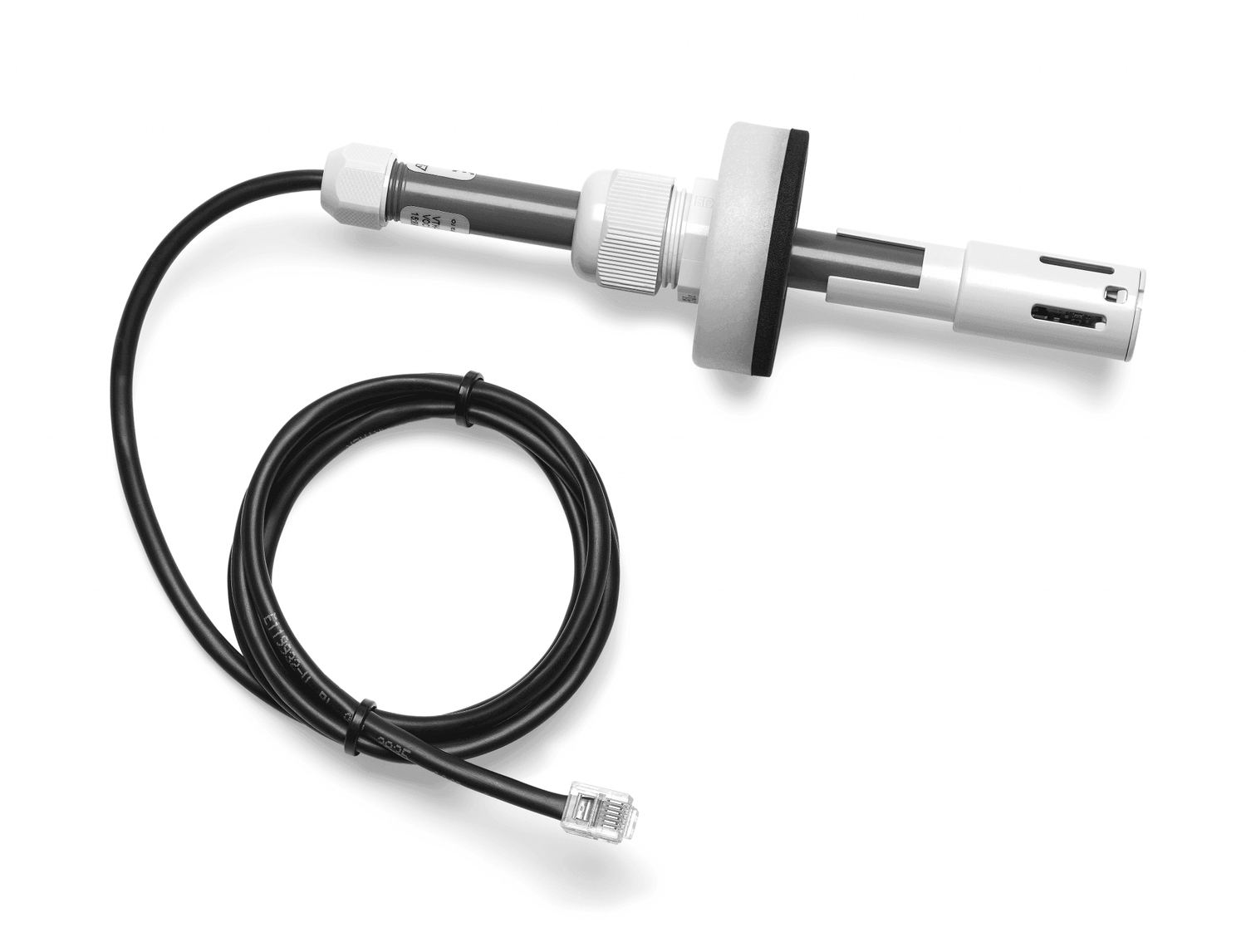

Air quality sensor/ CO2 sensor VTH-6202

SKU: 1243

Description

The VTH-6202 sensor is used to measure the air quality in ventilation ducts, especially if the ventilation system is to be demand-controlled.
The air quality is measured based on its content of volatile organic compounds emitted by people, furniture, cleaning agents, building materials, etc.
VTH-6202 is a compact sensor with QuickPlug™ Modbus connection for easy installation.
VTH-6242 is the same product as VTH-6202, but with a connection box instead of the fixed cable. This is particularly important when the sensor is mounted far away from the control system.
The sensor is based on years of experience in HVAC applications and is designed to provide optimal and reliable performance.

Data sheet German


Installation and operating instructions
(German/ English)


Data sheet English

€189,00
Shipping will be charged at checkout.

Specification

  • Measuring accuracy VOC
    ±300 ppm
  • Measuring range CO₂
    450 ... 2000 ppm
  • Sensor protection class
    IP32
  • Enclosure protection class
    IP54
  • Output signal
    Digital signal
  • Power supply
    24 V
  • Response time
    CO₂: <5 min.
  • Own consumption
    0.13 W at 24 V
  • Ambient temperature
    0 ... 50°C
  • Storage temperature
    -25 ... 50°C
  • Ambient humidity
    5 ... 95 % rH
  • Manufacturer
    OJ Electronics
