ATEX lamp ACQUEx LED-M for ATEX zones 2, 22
ATEX lamp ACQUEx LED-M for ATEX zones 2, 22 - 2000 lm; 15 W; ACQUEx LED-M 0.6 20-840 ET PC is in stock and will be shipped as soon as it is available again
Availability for pickups could not be loaded
Description
Description
✅ Safe and reliable lamp for potentially explosive atmospheres in ATEX zones 2, 22

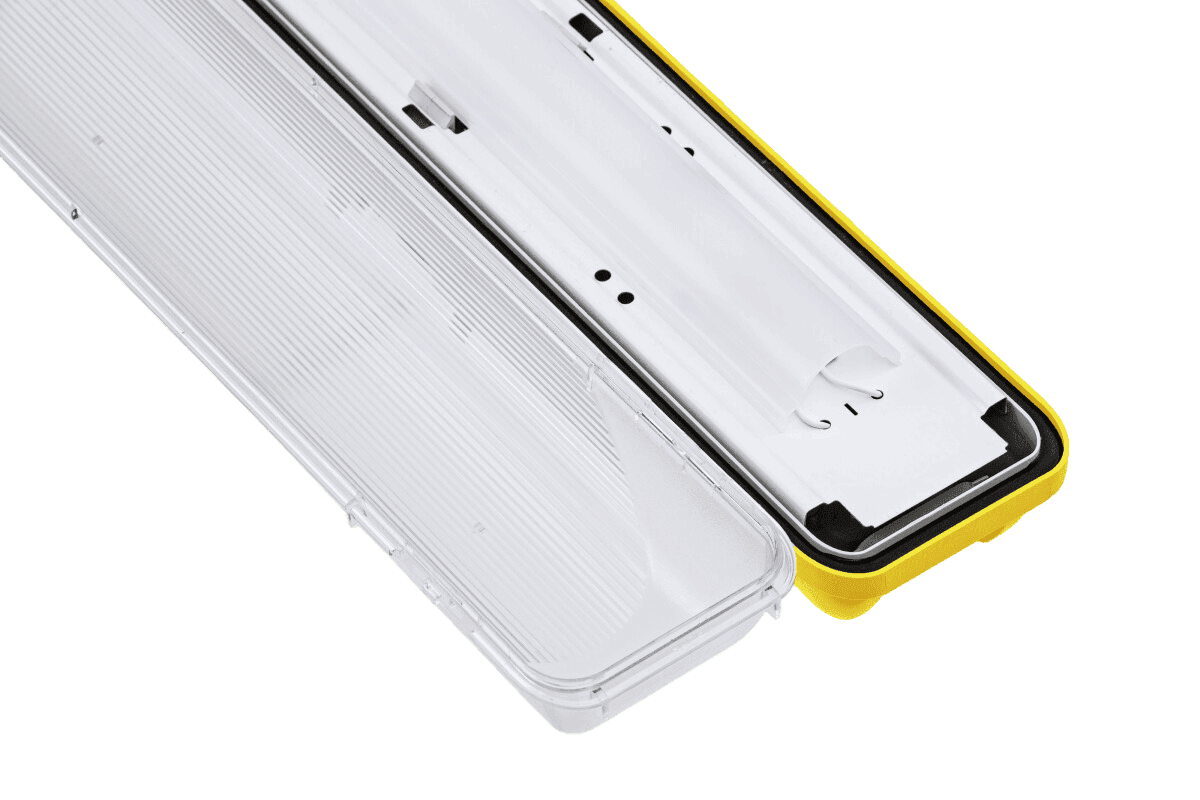

✅ Safe installation thanks to the internal diffuser, which avoids direct contact with the LED module
Impact resistance IK10
✅ High efficiency, with DALI and emergency lighting versions
✅ Quick, easy and safe installation on the ceiling or wall
Operating instructions EN: Download
ATEX lamp ACQUEx LED-M for ATEX zones 2, 22
Specification
Specification
-
Device typeATEX-certified lamp
-
Enclosure protection classIP66
-
IK impact strength gradeIK 10
-
Efficiency100 ... 150 lm/W
-
Light color4000K
-
Color rendering index CRI80
-
Power factor> 0.95 full load
-
Weight
-
Power supply220 ... 240 V
-
Electrical connection3/5-wire terminal strip
-
Performance16 ... 60 W
-
16 ... 60 W
-
Ambient temperature-20 ... 50°C
-
ATEX certificationZone 2, Zone 22, II 3G Ex ec IIC T6 Gc, II 3D Ex tc IIIC T85ºC Dc
-
Country of origin
-
Guarantee5 years
-
Service lifeL80B50 100,000 h
-
Manufacturer
-
Emergency light3 hours: 200 ... 650 lm
Product comparison ATEX lamps
| Product facet | |
|---|---|
| Provider | |
| Provider | SEIKOM Electronic |
| Price | |
| Price |
From
€1.079,33
Base price
/
Not available
|
| Description | |
| Description | ✅Indoor luminaire especially for potentially explosive areas with up to 25,600 lm Extremely weather-resistant and suitable for demanding industrial conditions thanks to glass cover and copper-free aluminum housing ✅Wide temperature range from -32ºC to 75ºC ✅Also suitable for outdoor use ✅Frequent areas of application: Oil refineries, petrochemical industry |
