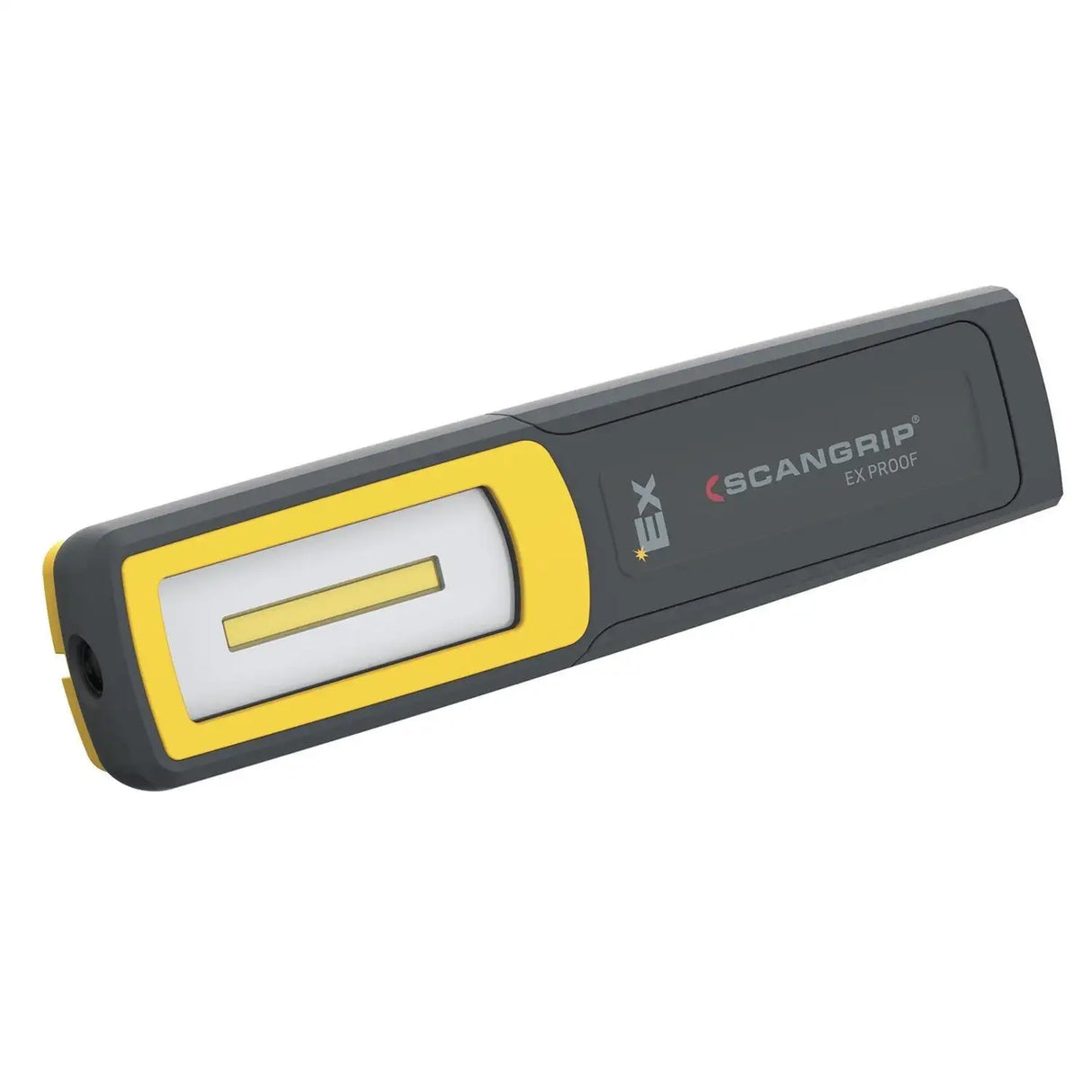

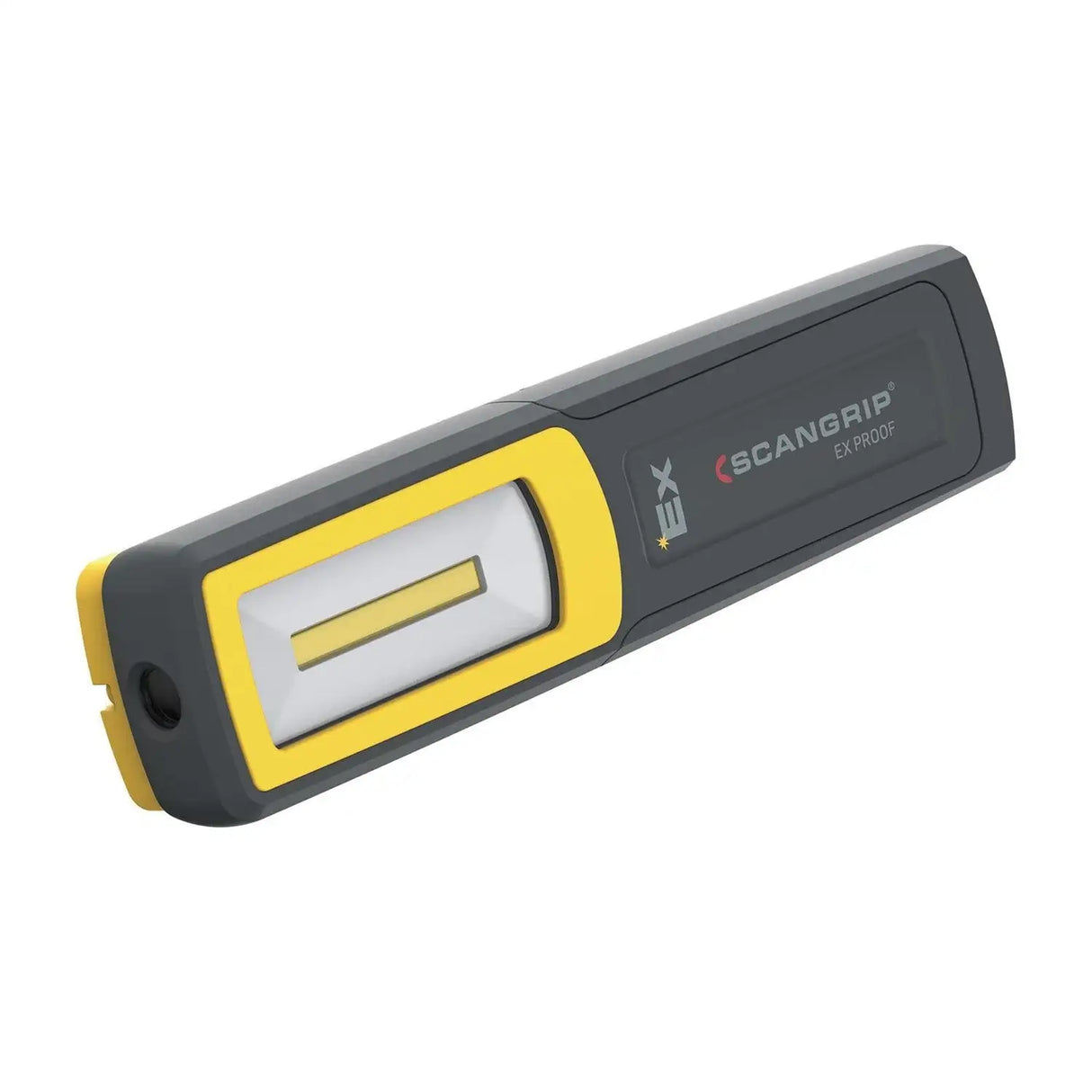

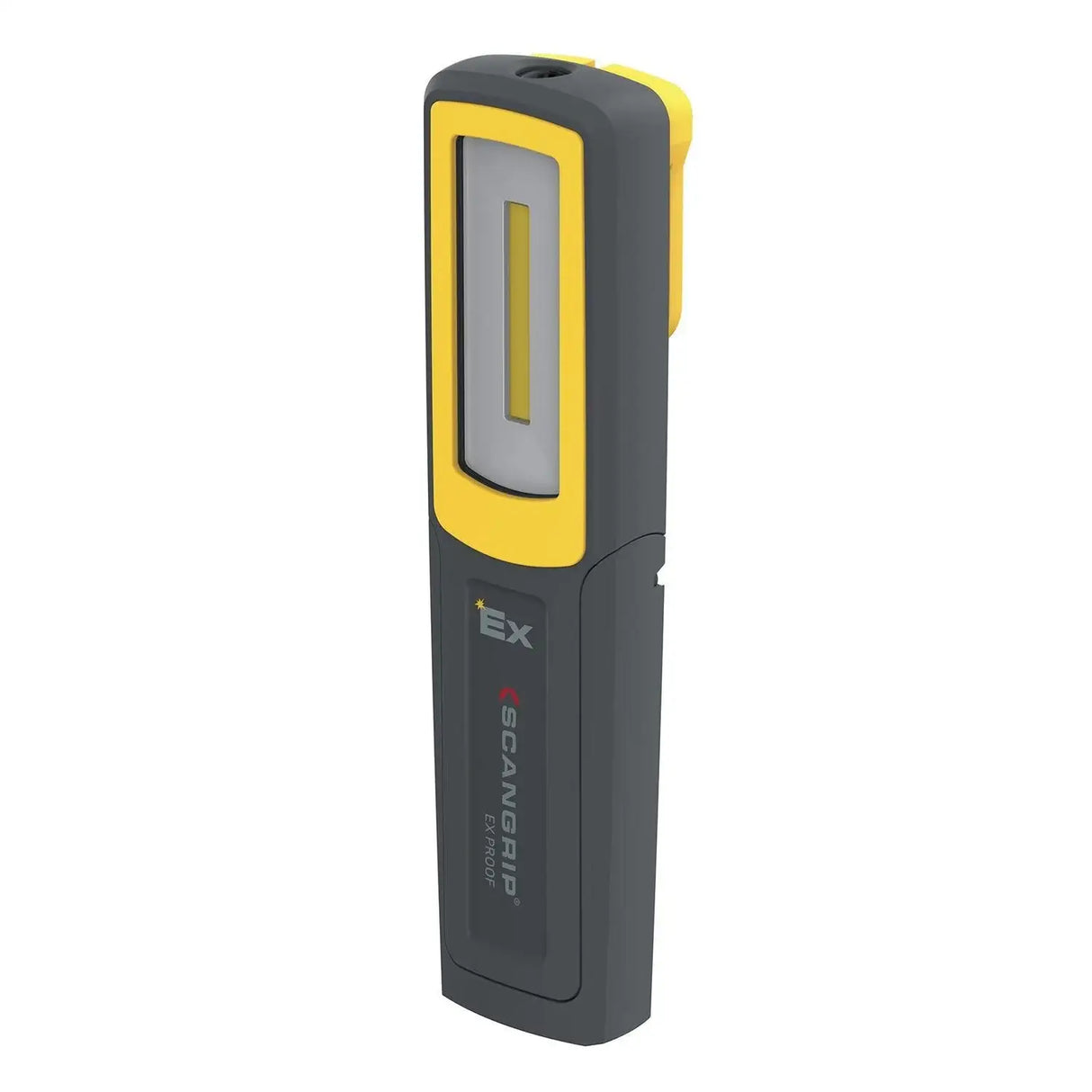

ATEX rechargeable hand lamp MIDI-EX, SCANGRIP EX PROOF

Sku: 03.5611  |  Barcode: 5708997356111

Description

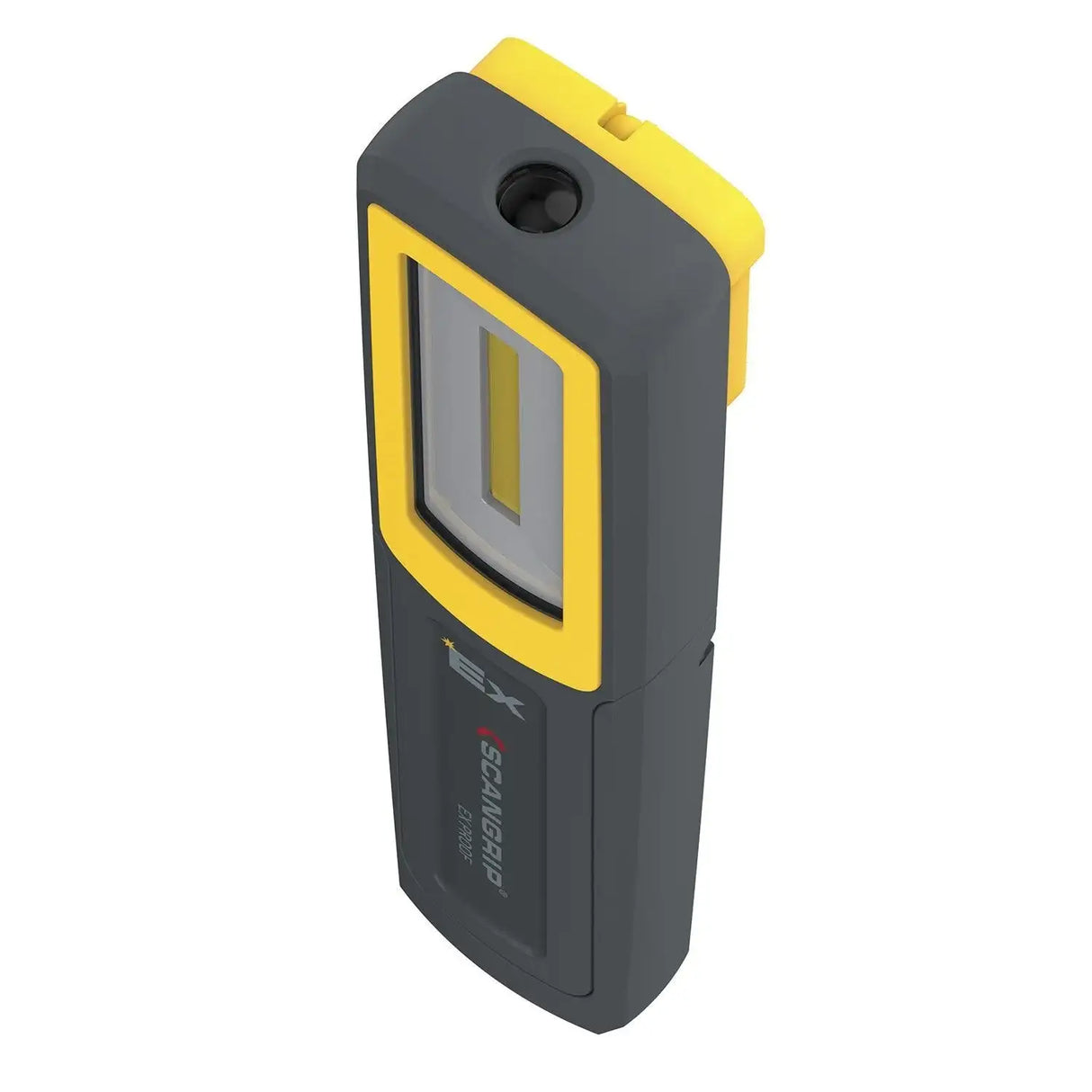

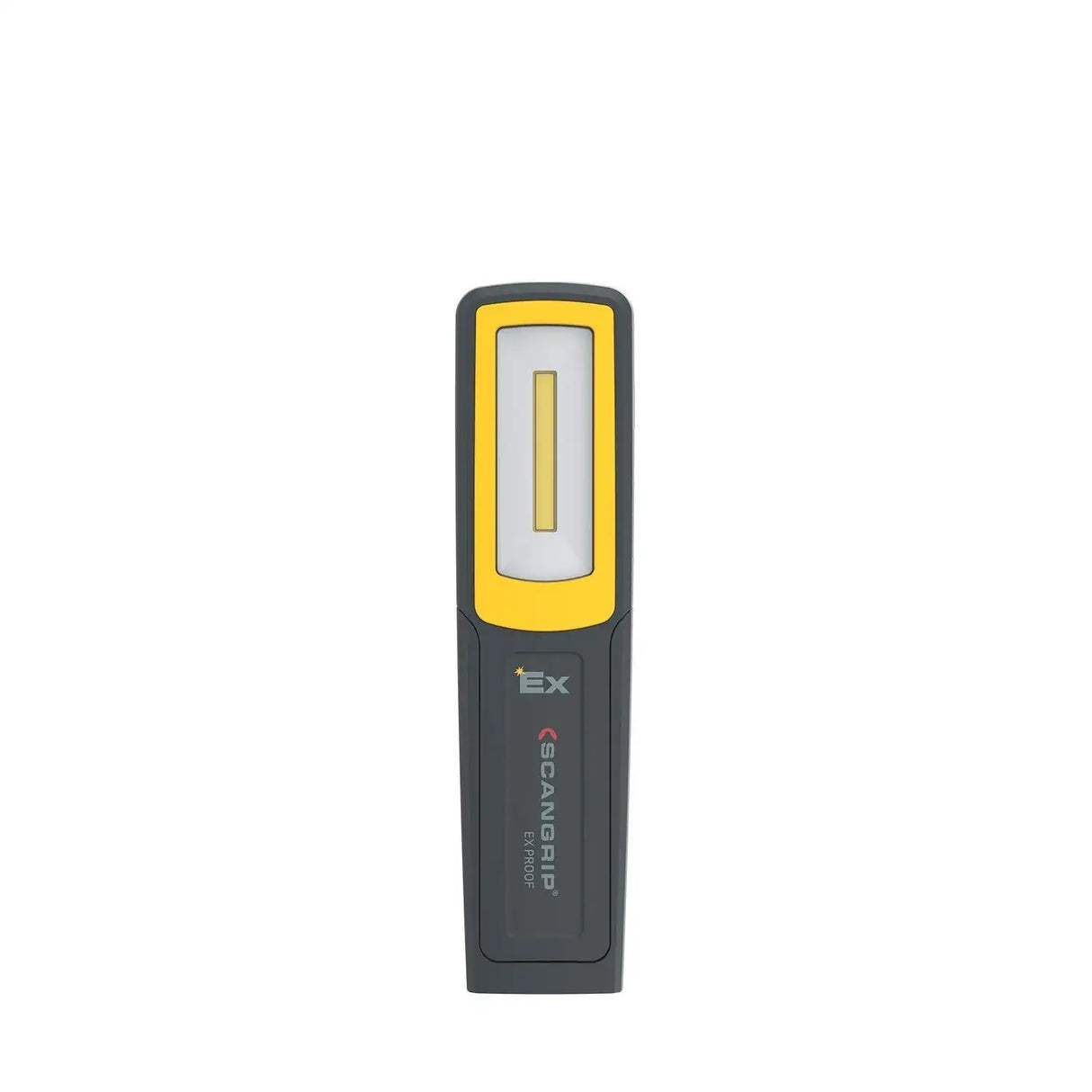

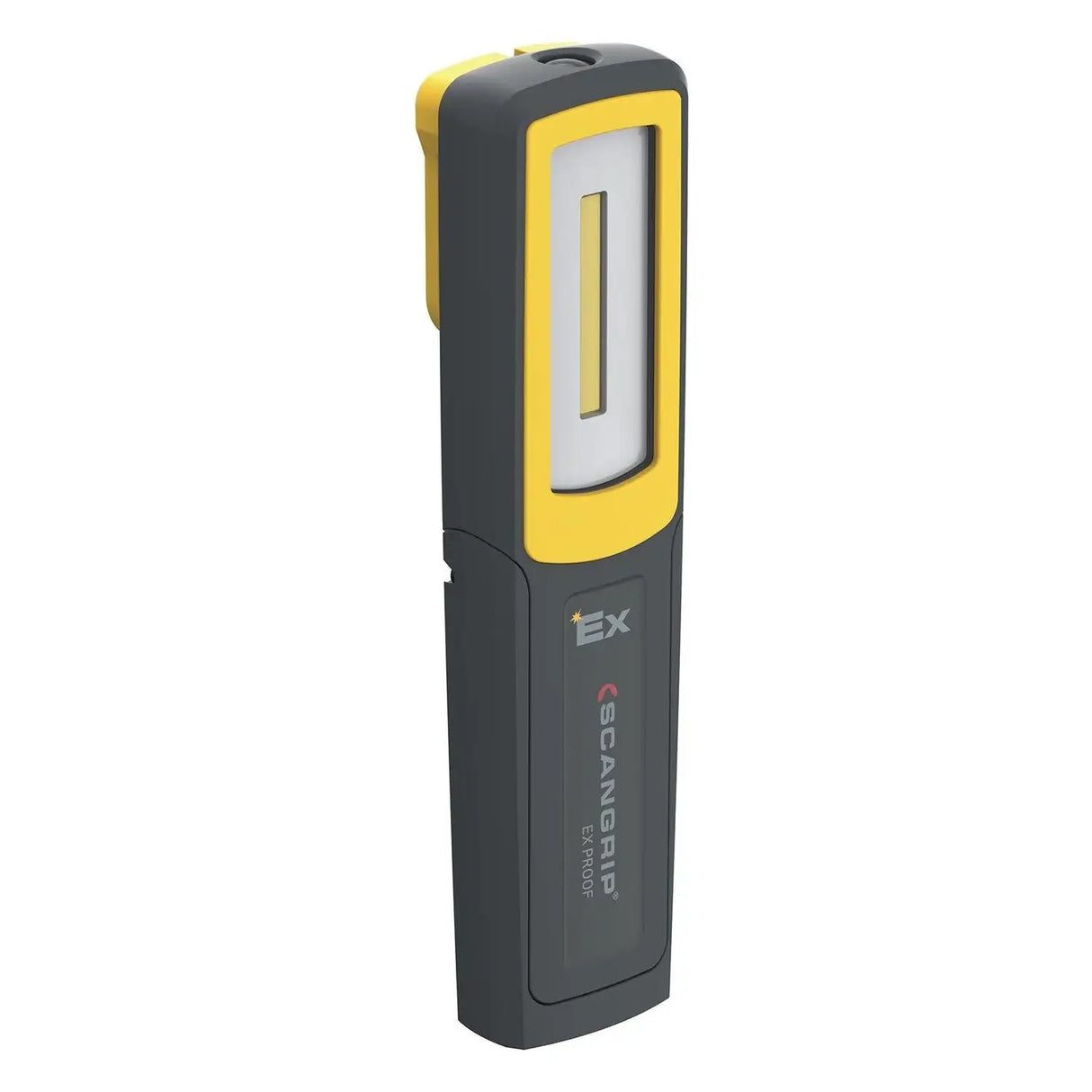

✅ Ex-protected hand-held rechargeable work light MIDI-EX with charging station Approved for Zone 2/22

✅ MIDI-EX with main and upper spotlight,  two operating options: either 50% or 100% light output

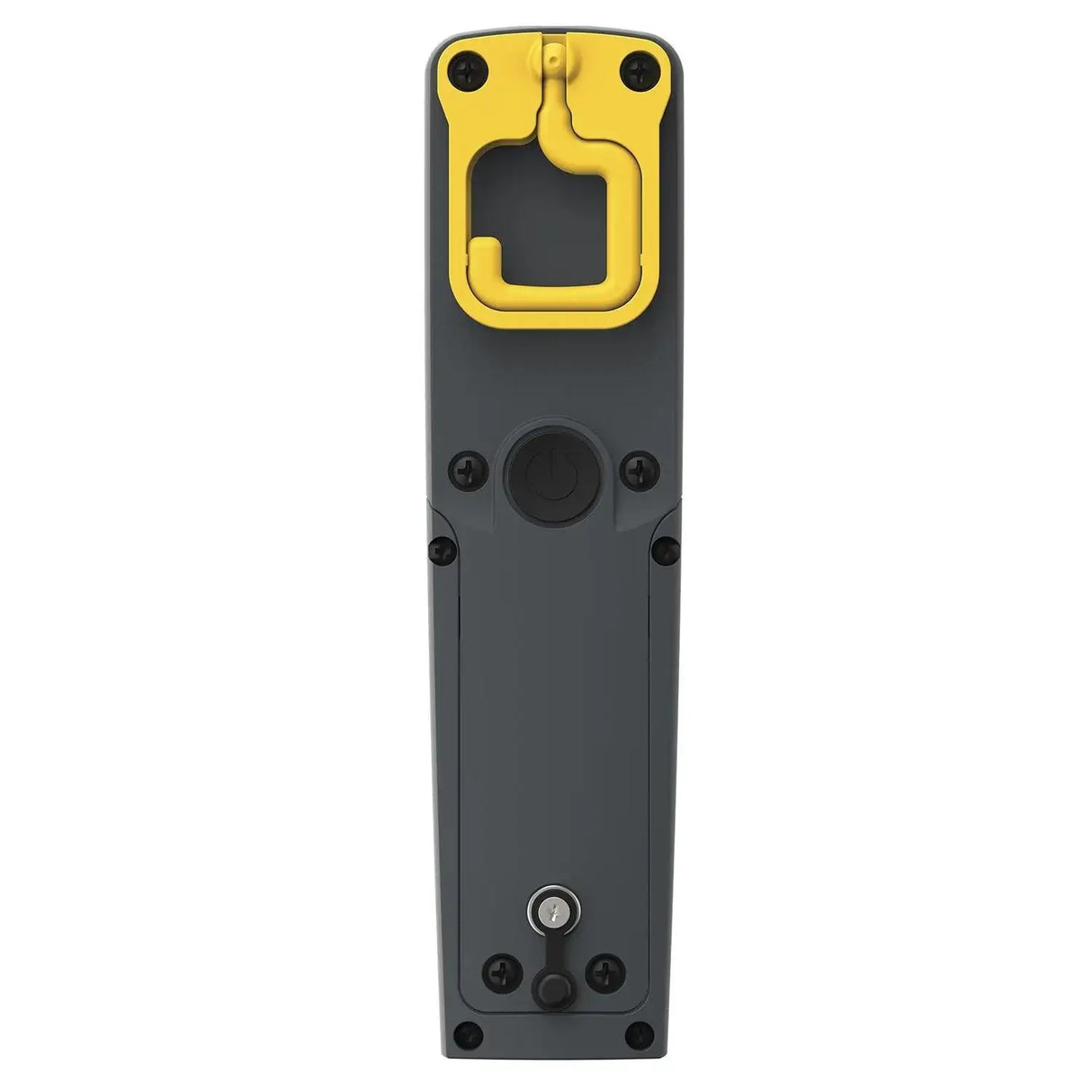

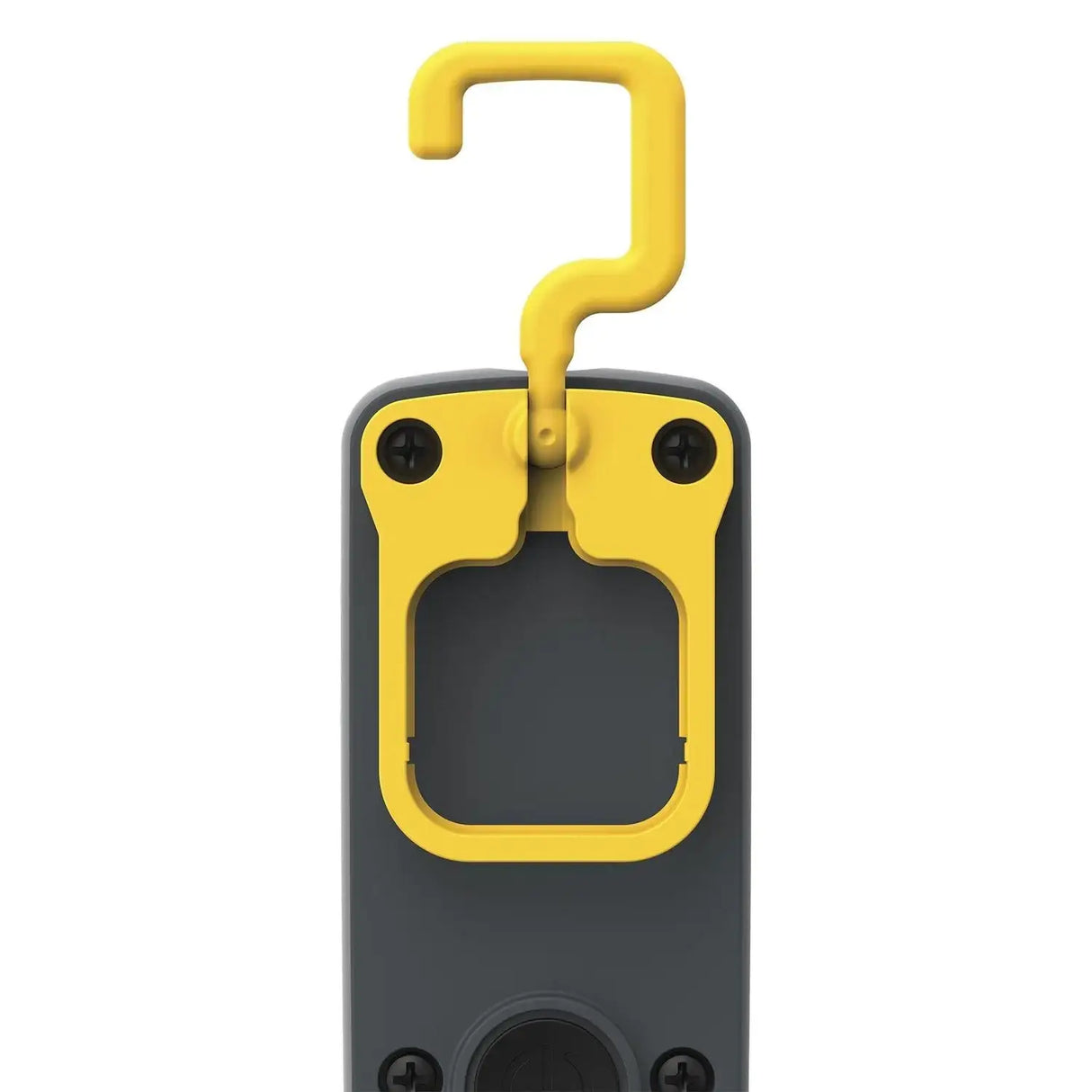

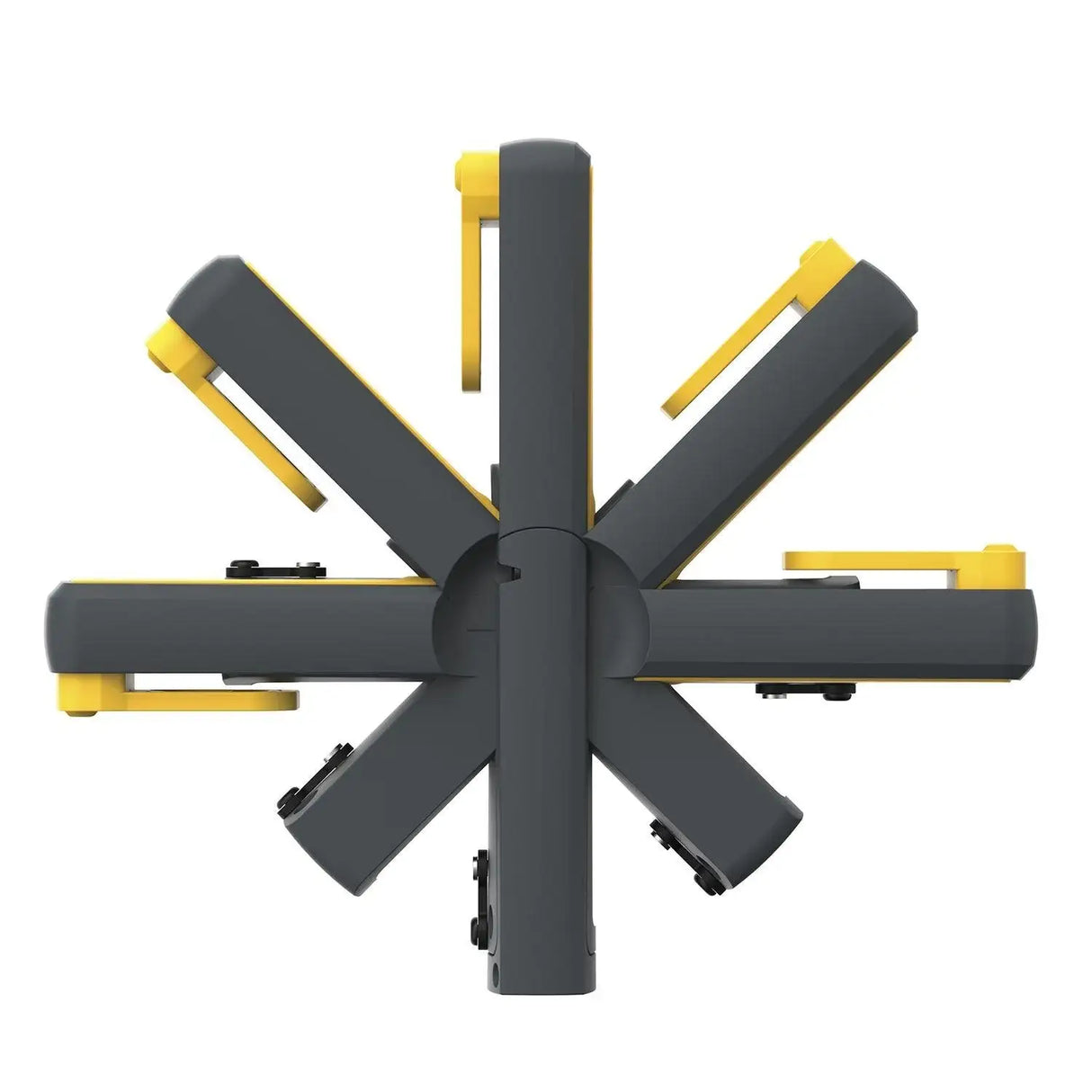

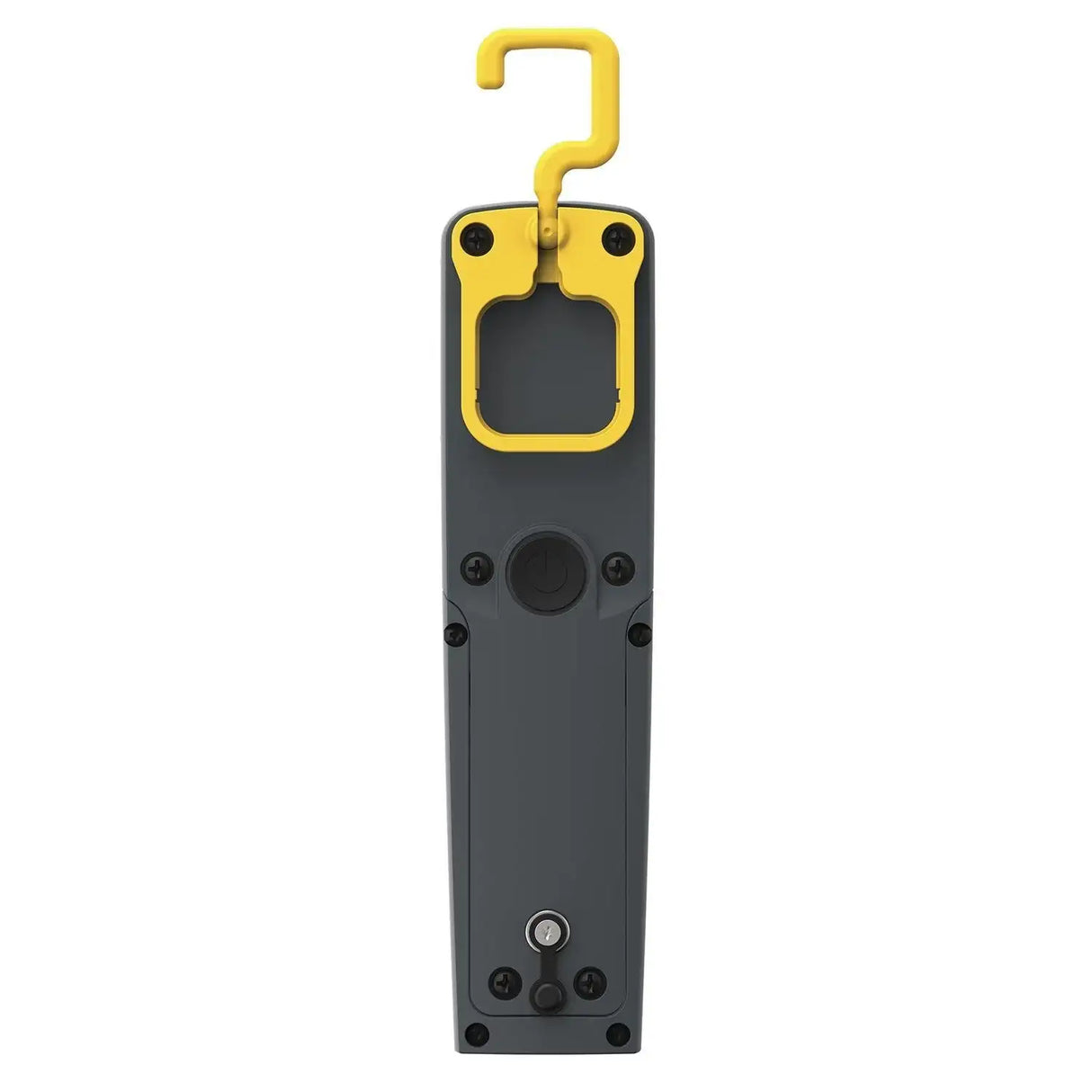

✅ Hand lamp can be placed with the robust, rotating hook or the strong, built-in magnet to have both hands free. The flexible lamp head can be swiveled up to 180°.

✅ The hand lamp features a COB LED a uniquely powerful and completely uniform illuminationwhich is ideal as a work light.

Waterproof IP65

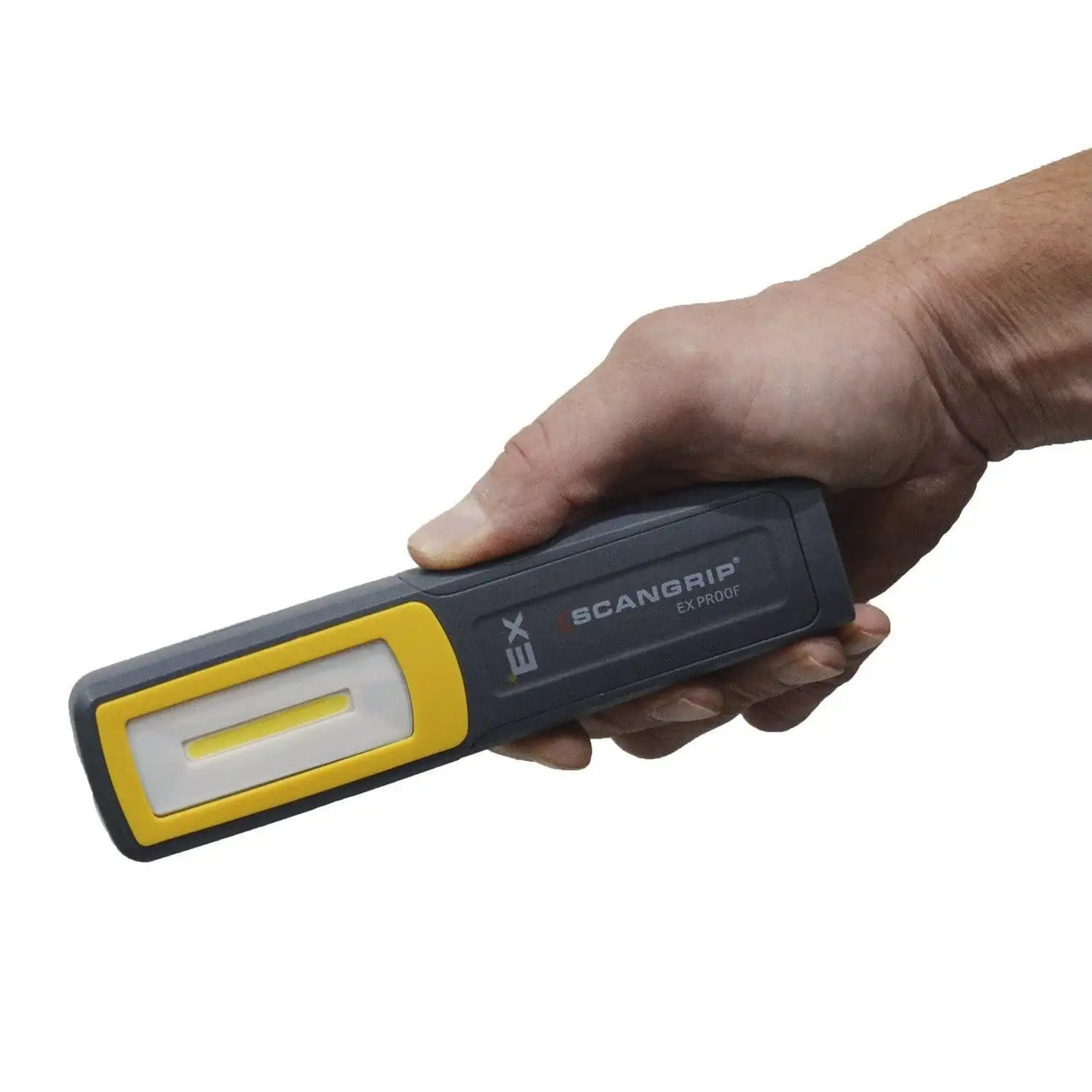

✅ The extremely durable MIDI-EX comes with a robust surface and the shape of the light ensures a comfortable and ergonomic grip.



€104,90
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available in 2-3 days

specification

  • Device type
    Mobile work light Ex-protected, Flashlight Ex-protected
  • Protection class housing
    IP65
  • Special features
    Operating time with min./ max.: 2.5 / 5 h, Charging time: 3.5 h
  • IK impact resistance rating
    IK07
  • Luminous flux
    Main light source: 200 lm / 100 lm, COB LED, beam angle 105°
  • Light color
    6000K
  • Color rendering index CRI
    Ra > 80
  • Weight
    0.18 kg
  • Housing dimensions
    182 x 46 x 29 mm
  • Power supply
    Battery voltage 3.8 V, Battery capacity 1600 mAh, Battery type Li-ion
  • Electrical connection
    Charger, 100-240V AC / 50-60Hz, Type C (Euro plug), Cable 1 m USB to mini DC, Charging voltage 5 V DC
  • Max. power consumption
    3,0 W
  • Ambient temperature
    -15°C ... 45°C
  • ATEX certification
    II 3G Ex ic IIC T5 Gc, II 3D Ex ic IIIC T100°C Dc
