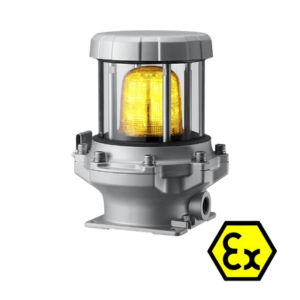

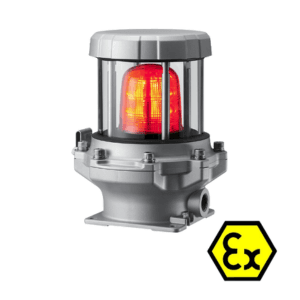

ATEX signal light REF-M

✅ Robust LED signal light, ideal as a warning light in potentially flammable and hazardous explosive environments such as in chemical, petrochemical, mineral/natural gas production

✅ Maintenance-free thanks to LEDs and no motors

✅ Light pattern: triple flash (120 flashes per minute), continuous rotation (120 rpm)

✅ Colors LED unit: Red, alternatively also available in amber (yellow/orange)

✅ Operating voltage: 12 ... 24 V DC, alternatively also 100 ... 240V AC available

✅ Robust die-cast aluminum housing and tempered transparent glass, pressure-resistant encapsulation "d"

✅ ATEX certifications: IECEx - Ex db ⅡB+H T6 Gb, ATEX - Ⅱ 2 G Ex db ⅡB+H T6 Gb

✅ Mounting location: inside/outside; Mounting direction: upright

⚠️ Attention: A certified Ex cable gland (marking: Ex db ⅡC Gb) must be used for the device and installed in accordance with EN/IEC 60079-14.
(not included in the scope of delivery)
