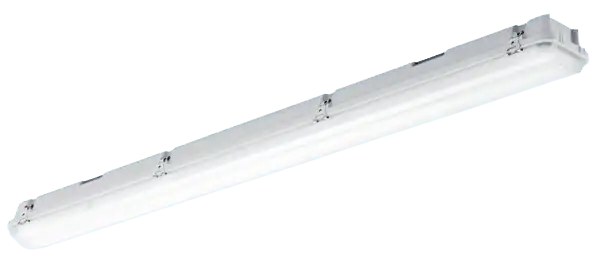

Damp-proof luminaire LED DUNA FLEX HE HIGH BAY

Sku: DHE 1.5 80-840 ET SMC DPM IX CG - 10172636

Description

✅ Maximum efficiency up to 170 lm/W

✅ Temperature range up to 50ºC with 100,000 hours service life

✅ Up to 15,000 lm for the highest installations

✅ Internal diffuser to prevent direct contact with the LED: protection without risk of damage from ESD

✅ Wall or ceiling mounting possible

Illuminated length

1.5 m

Additional features

Standard Through-wiring with emergency light function

Luminous flux - lumen

8000 10000 15000

Product variants

€104,31

Shipment is calculated in the checkout.

Delivery time: Available in 3-4 weeks

Datenblatt EN: Download

Device type

Moisture-proof LED light
Protection class housing

IP66
IK impact resistance rating

IK03
Luminous flux

8000 ... 15000 lm, depending on model (see data sheet)
Light color

4000K
Color rendering index CRI

>80
Flicker factor

<1%
Power factor

>0.95 Full load
Housing material

Housing: Pressed glass fiber reinforced polyester (GRP), grey RAL 7035, Diffuser: Injection-molded PMMA with UV protection and frosted surface 20% opal, Gasket: Polyurethane, Fixing clips: Stainless steel
Weight

depending on model (see data sheet)
Cable gland

Cable gland
Power supply

220-240 V AC, 0 ... 50/60Hz
Electrical connection

3/5-pole plug-in terminal block, Cable gland
Power

51 ... 94 W, depending on model (see data sheet)
Ambient temperature

-40... 50°C, depending on model (see data sheet)
Warranty

5 years
Service life

L80 100,000 hours at 35ºC
Fire protection

Flammability (UL94): V2 Glow wire test (EN 60695-2-11): 650º
