DTM05 Differential pressure transmitter

SKU: 83005

Description

Operating voltage 24V AC/DC

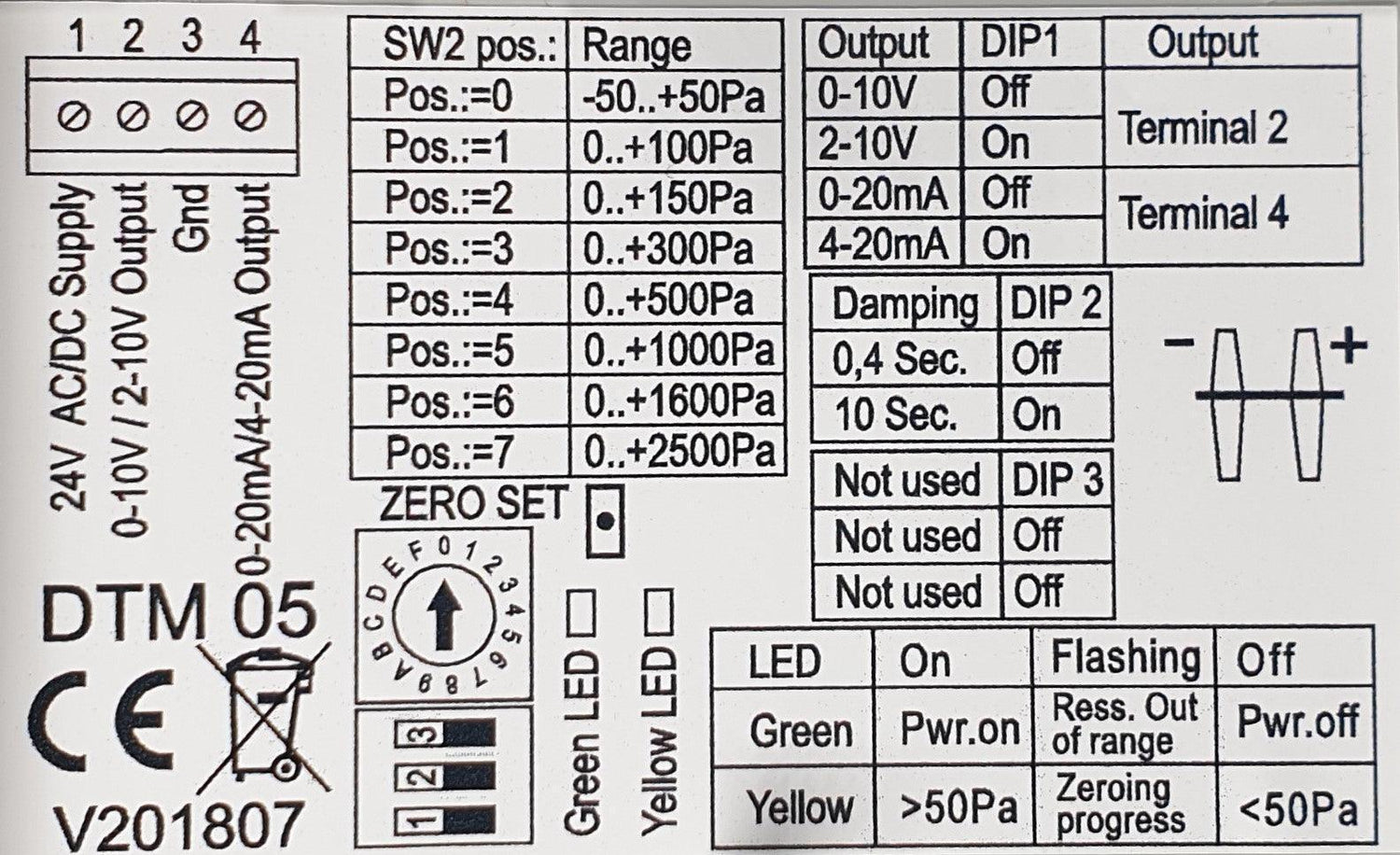

Setting ranges : -50...+50Pa, 0...+100Pa, 0...+150Pa,

0...+300Pa, 0...+500Pa, 0...+1000Pa, 0...+1600Pa, 0...+2500Pa

Output signal: 0-10V or 2-10V, or 0-20mA or 4-20mA

Dimensions: 75 x 36 x 91 mm

Pressure port: 2 x 6.2 mm diameter

Protection class: IP54

€187,10
Shipping will be charged at checkout.

Technical drawing 3D: Download

Operating instructions EN: Download

Operating instructions EN: Download

Specification
  • Medium
    Gases
  • Differential pressure measuring range
    -50 ... 50 bar, 0 ... 100 bar, 0 ... 150 bar, 0 ... 300 bar, 0 ... 500 bar, 0 ... 1,000 bar, 1,600 bar, 0 ... 2,500 Pa
  • Differential pressure measuring accuracy
    < 0,5% x Messwert + 0,3% x eingestelltem Messbereich +2,5 Pa
  • Power supply
    24 V AC/DC
  • Power consumption max
    0,34 W

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Achim Netzmann
Solid pressure sensor

We have been using the devices for many years to control the negative pressure in exhaust air cabinets. Quick to install and commission and have been in use for many years without any problems

DTM05 Differential pressure transmitter

€187,10

Operating voltage 24V AC/DC

Setting ranges : -50...+50Pa, 0...+100Pa, 0...+150Pa,

0...+300Pa, 0...+500Pa, 0...+1000Pa, 0...+1600Pa, 0...+2500Pa

Output signal: 0-10V or 2-10V, or 0-20mA or 4-20mA

Dimensions: 75 x 36 x 91 mm

Pressure port: 2 x 6.2 mm diameter

Protection class: IP54
