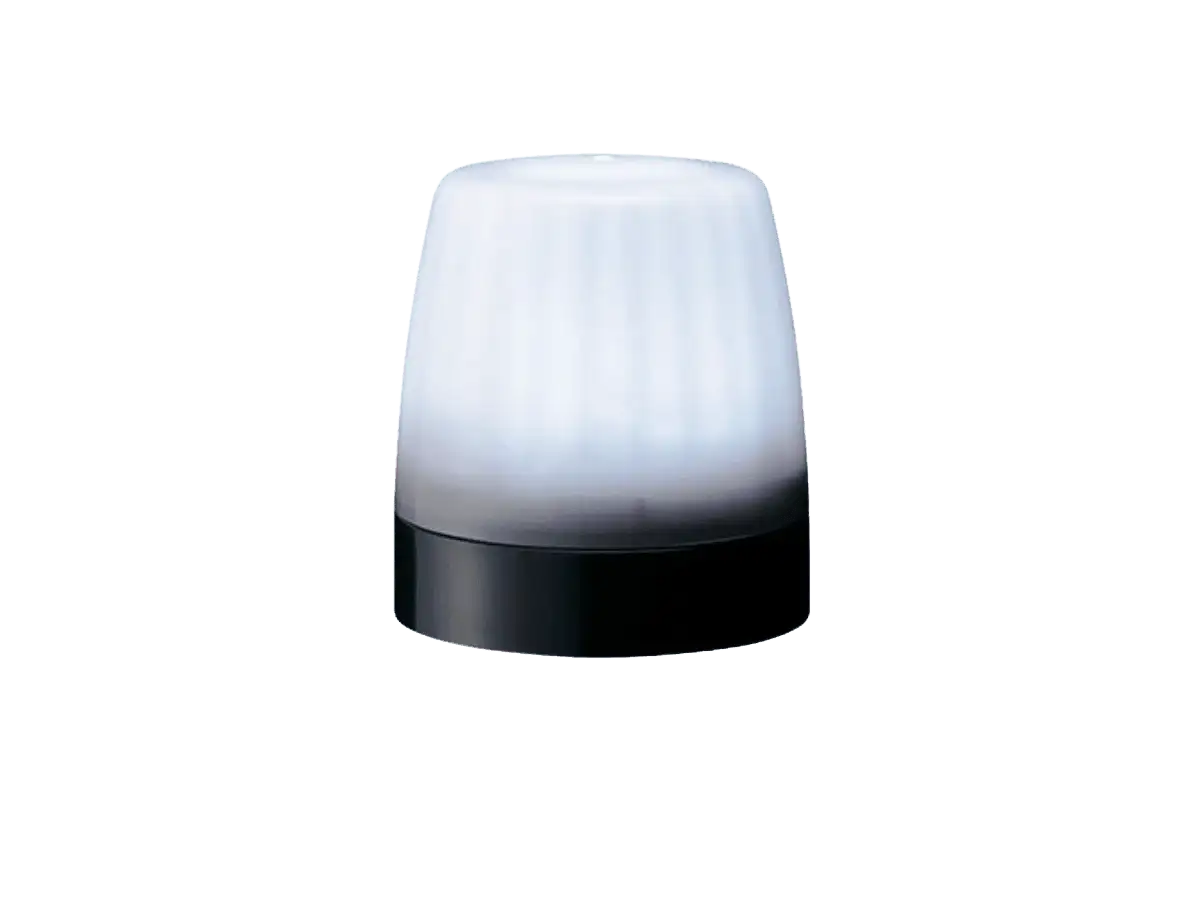

LED signal light NE-A, Ø56 mm, IP65, 24V DC
Description
Description
✅ Compact LED signal light with 56 mm diameter for a wide range of applications
✅ Continuous light function for clear status display
✅ Robust design with protection class IP65, optionally IP67 for harsh environments
✅ Selectable from 5 LED color options: Red, yellow, green, blue and white, or multicolor
✅ Newly developed reflector for uniform, clear light distribution
✅ Operating voltage 24V DC for easy integration into existing systems
✅ Low power consumption of only 26mA (0.7W)
✅ Operating temperature range from -30°C ... 50°C for reliable use
✅ Robust plastic housing in black
✅ Simple installation thanks to direct mounting
LED signal light NE-A, Ø56 mm, IP65, 24V DC - Multicolor (7 colors possible) is in stock and is sent as soon as it is available again

Availability for collection could not be loaded
Technische Zeichnung 3D: Download
Technische Zeichnung 2D: Download
Bedienungsanleitung DE: Download
Bedienungsanleitung EN: Download
specification
specification
-
Device typeLED signal light
-
Device designCompact device
-
DisplayLED continuous light
-
Protection class housingIP65, IP67
-
Weight
-
Housing dimensionsØ 56 x 61 mm
-
Power supply24 V DC
-
Electrical connectionScrewless terminal strip (single color), Cable (multicolor)
-
Max. power consumption0,7 W
-
Recommended cable cross-section0.2 - 1.5 mm²
-
Ambient temperature-30°C ... 50°C
-
CertificatesCE, RoHS
-
Country of origin
-
Customs tariff number
-
ColorHousing black, Dome depending on variant
