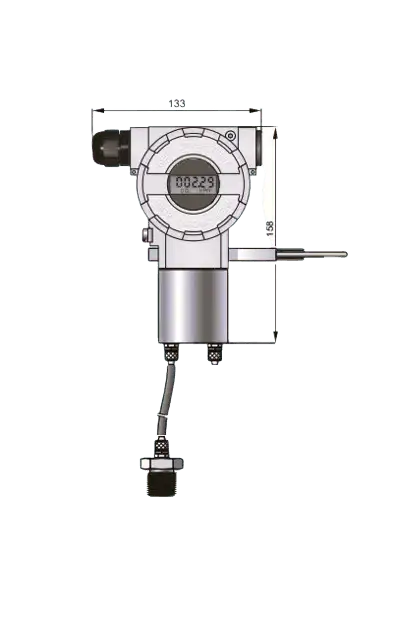

PressGuard® DPT201 (EX SIL) - Differential pressure transmitter with optional SIL2/3 classification and ATEX certification for gas and dust

Sku: 1402/-10000-10000/AL/-/G0.5

Description

✅ Robust pressure transmitter Can be used for industrial applications up to 85°C ambient temperature

✅ Compact design for installation in small spaces

✅ Protection class IP66

✅ Outstanding corrosion and wear resistance

✅ High reliability and long service life

ATEX zone
Measuring range pressure
Material Housing and process connection
€799,65
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available in 3-4 weeks

Technische Zeichnung 3D: Download

Technische Zeichnung 2D: Download

Datenblatt DE: Download

Datenblatt EN: Download

specification
  • Device type
    Smart differential pressure transmitter also for low measured values
  • Device design
    Compact: Sensor and evaluation unit permanently installed
  • Relative pressure range
    < ±0.1/ 10°C; max. ±0.4%
  • Differential pressure range
    -10000 ... 10000 Pa, -2500 ... 2500 Pa, -500 ... 500 Pa, -250 ... 250 Pa, Others on request
  • Display
    LCD (illuminated)
  • Protection class housing
    IP66
  • Output signal
    Analog signal, HART
  • Process connection
    G1/2-inch, alternatively with connection nipple for 6 mm hoses
  • Housing material
    Aluminum, alternatively stainless steel
  • Vacuum resistance
    Yes
  • Power supply
    11.5 ... 36 V DC
  • Ambient temperature
    -30 ... 85°C
  • Temperature compensation
    -10 ... 70°C
  • ATEX certification
    Exia, ExiaDa, Exd2G, none
  • SIL level
    SIL2, SIL3, none
  • Country of origin
    Poland

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Holger Pfändl
Filter monitoring of existing system

Device is used to monitor a filter. Existing system with TÜV requirement that monitoring must be carried out in accordance with SIL2 (no ATEX).
I have used flow monitors in the past, but they did not fit here structurally.

Hoses were quickly fitted and the device put into operation. Monitoring has been problem-free ever since.

PressGuard® DPT201 (EX SIL) - Differential pressure transmitter with optional SIL2/3 classification and ATEX certification for gas and dust

Away €719,36

✅ Robust pressure transmitter Can be used for industrial applications up to 85°C ambient temperature

✅ Compact design for installation in small spaces

✅ Protection class IP66

✅ Outstanding corrosion and wear resistance

✅ High reliability and long service life

Medium

Device type

Smart differential pressure transmitter also for low measured values

Device design

Compact: Sensor and evaluation unit permanently installed

Temperature range

Temperature accuracy

Flow range

Flow accuracy

Medium temperature

Relative pressure range

< ±0.1/ 10°C; max. ±0.4%

Relative pressure accuracy

Atmospheric pressure range

Atmospheric pressure accuracy

Measured variable

Differential pressure range

-10000 ... 10000 Pa, -2500 ... 2500 Pa, -500 ... 500 Pa, -250 ... 250 Pa, Others on request

Differential pressure accuracy

VOC range

VOC accuracy

CO₂ range

CO₂ accuracy

Relative humidity range

Relative humidity accuracy

Number of differential pressure ranges

Maximum measuring range limit

Display

LCD (illuminated)

Switching point

Protection class evaluation unit

Protection class sensor

Protection class housing

IP66

Special features

Cable length

IK impact resistance rating

Luminous flux

Emergency luminous flux

Efficiency

Light color

Color rendering index CRI

Flicker factor

Power factor

Humidity resolution

Temperature resolution

Max. differential pressure

Adjustment range

product.metafields.custom.messgroesse1

Output signal

Analog signal, HART

Analog output specification

Switching output specification

Digital output specification

Sensor break output signal

Sensor short-circuit output signal

Analog input

Digital input

Relay output specification

Immersion depth

Process connection

G1/2-inch, alternatively with connection nipple for 6 mm hoses

Housing material

Aluminum, alternatively stainless steel

Connection head material

Sensor material

Pressure resistance

Overpressure limit

Weight

Operating pressure

Housing dimensions

Mounting

Minimum pipe diameter

Fastening strap specification

Burst pressure

Vacuum resistance

Yes

Dimensions

Cable gland

Diameter

Installation depth

Front cover material

Sensor response length

Capillary tube length

Max. pressure

Power supply

11.5 ... 36 V DC

Electrical connection

Max. power consumption

Power

Recommended cable cross-section

Load resistance

Insulation resistance

Current and contact rating

Response time

Minimum switching capacity

Protection class

Min. output power

Self-consumption

product.metafields.custom.leistung Bürde max.

Max. input current

Measuring resistor

Switching differential

Overvoltage category

Reverse polarity protection

Supply output

Sensor element type

Ambient temperature

-30 ... 85°C

Storage temperature

Ambient humidity

Ambient pressure

Temperature compensation

-10 ... 70°C

Optimal inlet path

Optimal outlet path

Temperature gradient

Certificates

ATEX certification

Exia, ExiaDa, Exd2G, none

SIL level

SIL2, SIL3, none

Country of origin

Poland
