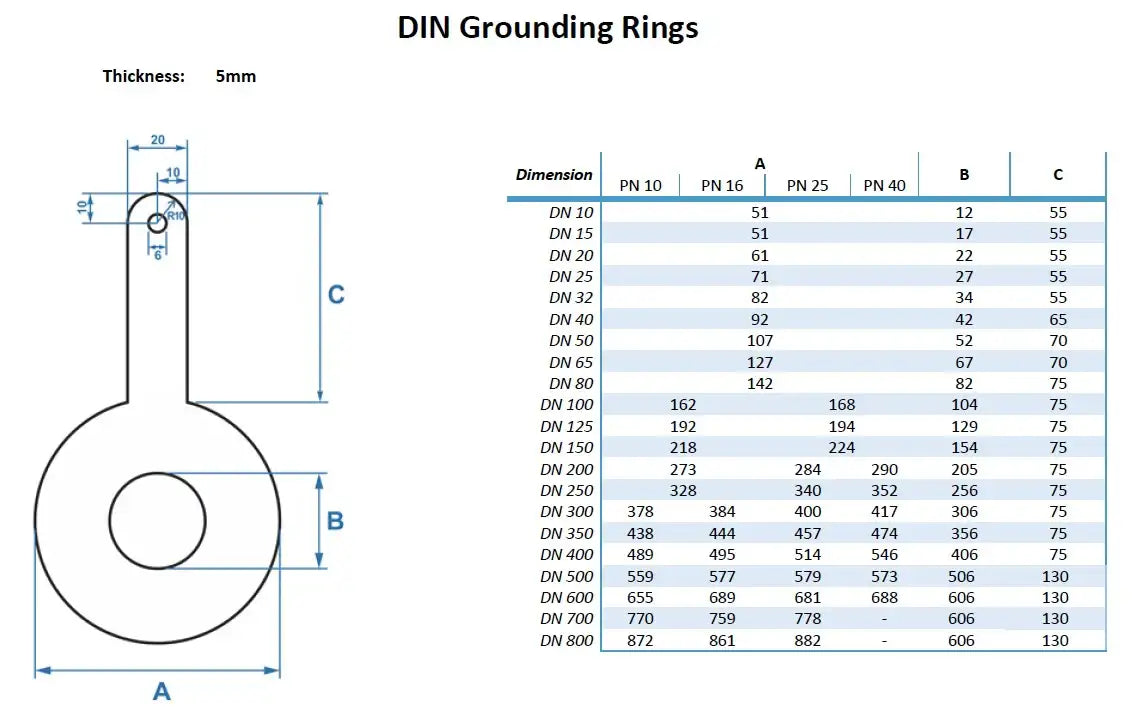

Stainless steel earthing rings for electromagnetic flow meters

Sku: 1537/DN10/1.4404

Description

Grounding rings (pair) made of stainless steel (SS316L), (tantalum on request)

in sizes DN 10 ... DN 300

suitable for the

electromagnetic flowmeters
FlowGuard® FT410, FT420 and FT420 EX


Size:
€27,00
Shipment is calculated in the checkout.
Lieferzeit Symbol

Technische Zeichnung 2D: Download

specification
  • Device type
    Accessories

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Stainless steel earthing rings for electromagnetic flow meters

Away €27,00

Grounding rings (pair) made of stainless steel (SS316L), (tantalum on request)

in sizes DN 10 ... DN 300

suitable for the

electromagnetic flowmeters
FlowGuard® FT410, FT420 and FT420 EX
