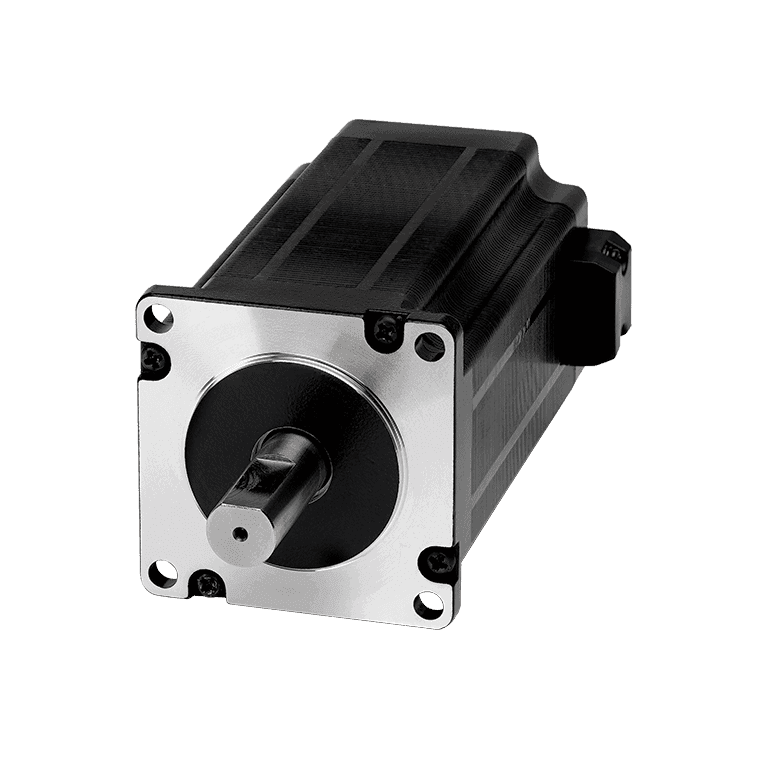

Stepper motor 2 Nm MRHX-3P02N-03C5

SKU: 1150

Description

Torque: 2.0 Nm

Power rating (250 rpm): 55 W

Weight: approx. 2.4 kg

Protection class: IP 54

Operating temperature: -40°C ... 40°C

Storage temperature: -40°C ... 70°C

Dimensions: approx. 85 x 85 x 67 mm

Shaft diameter: 12 mm

Cable length (with plug): 0.3 m

Max. Radial force (20 mm from the flange): 250 N

Max. Axial force: 60 N

€418,30
Shipping will be charged at checkout.

Specification
  • Manufacturer
    OJ Electronics

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Stepper motor 2 Nm MRHX-3P02N-03C5

€418,30

Torque: 2.0 Nm

Power rating (250 rpm): 55 W

Weight: approx. 2.4 kg

Protection class: IP 54

Operating temperature: -40°C ... 40°C

Storage temperature: -40°C ... 70°C

Dimensions: approx. 85 x 85 x 67 mm

Shaft diameter: 12 mm

Cable length (with plug): 0.3 m

Max. Radial force (20 mm from the flange): 250 N

Max. Axial force: 60 N
