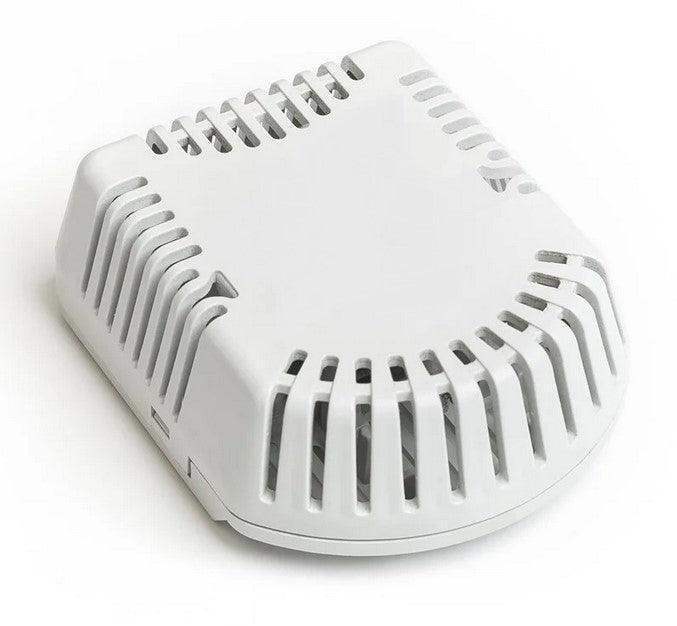

ThermGuard® TT201: Room temperature sensor for surface mounting

Sku: 1310/V

Description

Type: Compact version

Media temperature range0 °C ... 50 °C (preset)

Protection classIP30

Housing material: Polyamide

Maximum load resistance: 150 Ω for Ucc = 12 V; 700 Ω for Ucc = 24 V

Analog signal
€74,20
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available in 3-4 weeks

specification
  • Device type
    Analog temperature sensor
  • Temperature range
    -30 ... 150°C
  • Temperature accuracy
    -30 ... 150°C
  • Protection class housing
    IP30
  • Output signal
    Analog output
  • Sensor break output signal
    >23 mA, >10.5 V
  • Sensor short-circuit output signal
    <3.5 mA, ~0 V
  • Analog input
    0 ... 10 V, 4 ... 20 mA
  • Housing material
    Polyamide
  • Weight
    50 g
  • Dimensions
    72 mm x 59 mm x 27 mm
  • Power supply
    0 ... 10 V: 15 ... 30 V DC recommended, 4 ... 20 mA: 12 ... 30 V DC 12 V recommended
  • Load resistance
    150Ω for Ucc = 12 V 700Ω for Ucc = 24 V, >10 k Ω
  • Sensor element type
    Pt1000/ 3850; class B
  • Ambient temperature
    -30 ... 70°C
  • Ambient humidity
    Max. 85 % at 25 °C
  • Ambient pressure
    87 ... 107 kPa
