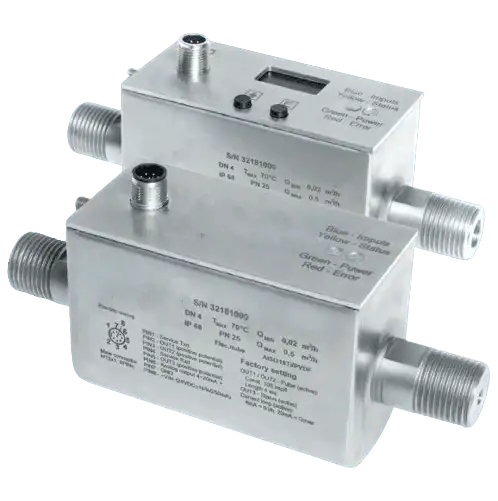

Electromagnetic flowmeter FlowGuard® FT407

Sku: 1317/DN6/G/O/1/IP65

Description

✅ 900 measurements per second precise measuring and dosing processes
✅ Fulfills the highest demands on measuring accuracy (2 % of the measured value) and repeatability (0.5 %)
✅ Can be used for Media temperatures up to 70°C
✅ Large Measuring range from 0.02 m³/hr. to 25 m³/hr. depending on pipe diameter (DN4 ... DN32)
✅ IO-Link and Bluetooth communication possible
✅ 2 freely configurable outputs
✅ High operating convenience due to optionally available LCD
✅ Compact design for use in small installation spaces

Diameter
Display
Output signal
€543,00
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available in 3-4 weeks

Bedienungsanleitung DE: Download

Datenblatt DE: Download

specification
  • Medium
    Liquids
  • Device type
    Magnetic inductive flow meter
  • Device design
    Compact device
  • Flow range
    0.2 ... 10 m/s, bidirectional measurement
  • Flow accuracy
    at 1 ... 10 m/s: 1%, at 0.2 ... 1 m/s: 2%
  • Medium temperature
    -25 ... 70°C
  • Display
    2 x LED, LCD display, 4x8 characters (optional)
  • Protection class evaluation unit
    IP65
  • Protection class housing
    IP65
  • Special features
    Scanning 900 samples per second (standard)
  • Output signal
    Pulse output, Analog output, Digital output
  • Switching output specification
    open collector PNP
  • Relay output specification
    open collector PNP
  • Process connection
    DN4...DN15 - G1/2-inch, DN20 - G3/4-inch, DN25 - G1-inch, DN32 - G1 1/4-inch, Thread (EN ISO 228-1), Dairy pipe fitting DIN11851, Clamp DIN32676
  • Housing material
    Stainless steel
  • Sensor material
    Stainless steel DIN 1.4571
  • Pressure resistance
    25 bar
  • Diameter
    DN 4 ... 32
  • Power supply
    24 V DC ±15%
  • Electrical connection
    4-pin M12x1, with reverse polarity protection
  • Max. power consumption
    3 VA
  • Self-consumption
    3 VA
  • Ambient temperature
    0 ... 55°C
  • Certificates
    CE
  • ATEX certification
    none
  • SIL level
    none
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS code
    90 26 80
  • Signal output reproducibility
    0,5%
