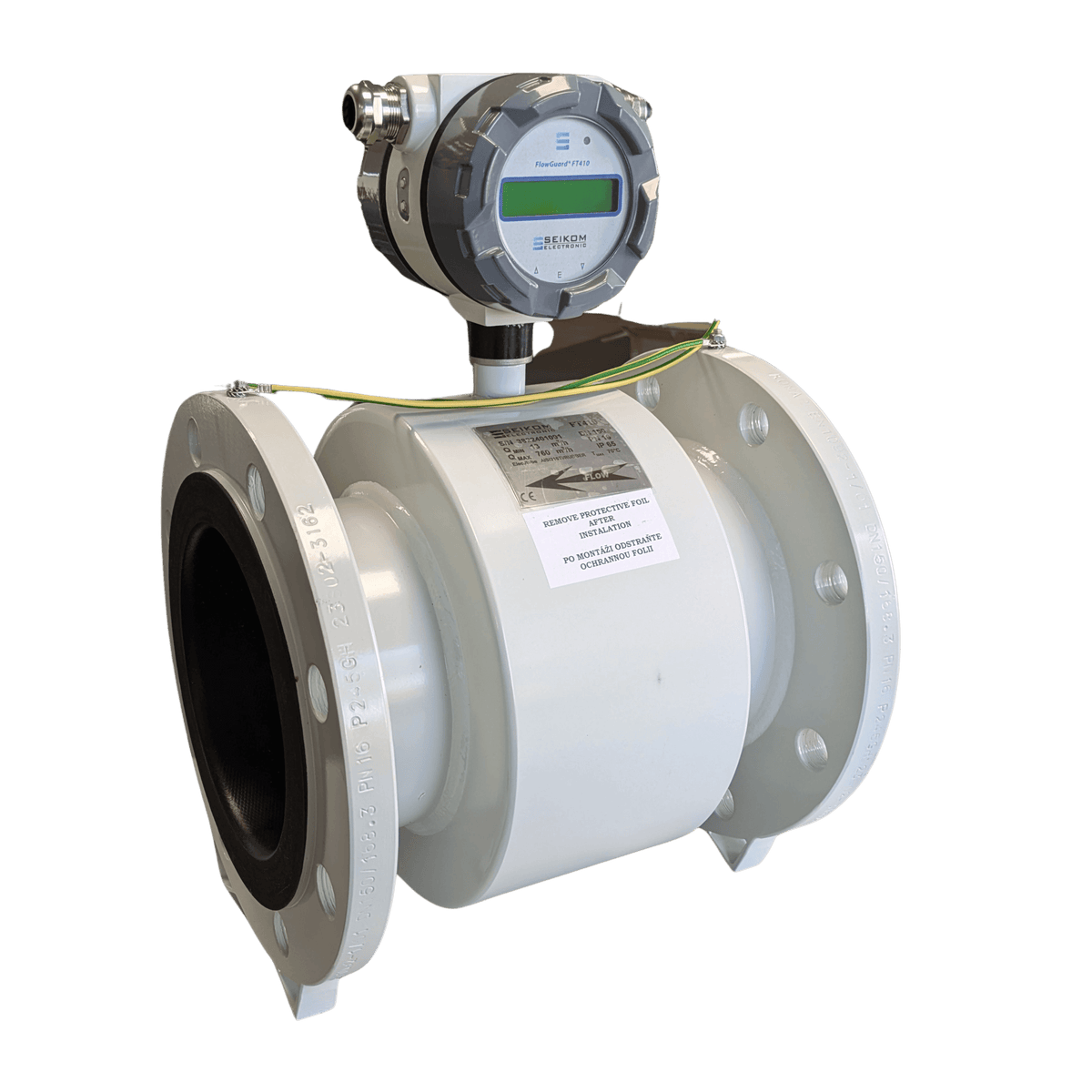

Electromagnetic flowmeter FlowGuard® FT410

Sku: 1315/K/DN4/G/PN16/PVDF/ST/65/1/24

Description

✅ Flow measurement from 0.06 to 12 m/s

✅ Bidirectional measurement with direction detection and empty pipe detection

✅ With pulse output, analog signal (4-20 mA), HART and Modbus connection

✅ Various process connections and linings ideal for your process, with drinking water approval on request

✅ Special versions are also suitable as heat meters or for use in ATEX environments

✅ Optionally available up to protection class IP68 and therefore ideal for industrial use

✅ Manufactured for you and available at short notice within ~3 weeks

Diameter
Process connection
Lining
€1.430,00
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Selected variants available immediately

Technische Zeichnung 2D: Download

Bedienungsanleitung DE: Download

Datenblatt DE: Download

Datenblatt EN: Download

specification
  • Medium
    Liquids
  • Device type
    Magnetic inductive flow meter
  • Device design
    Compact device, with remote evaluation unit (standard cable length 3 m)
  • Flow range
    0.06 ... 12m/s, bidirectional measurement, max. (1/200)
  • Flow accuracy
    ≤0.5% of the measured value
  • Medium temperature
    Compact: max. 90°C (depending on version), Remote: max. 150°C (depending on version)
  • Display
    LCD display, 2×16 characters
  • Protection class evaluation unit
    Standard device (H - head) - IP65, Front device (F) - IP67, Panel device (P) - IP54
  • Protection class sensor
    IP65, IP67, IP68
  • Special features
    Empty pipe detection DN15 ... DN600, Pressure loss negligible, Additional electrodes for earthing and detection of empty pipes
  • Output signal
    Pulse output, Analog output, Digital output
  • Sensor break output signal
    <3.5 mA
  • Process connection
    Flanged DIN (EN1092) - Carbon or stainless steel, Sandwich (PN25 only), Thread (EN 10226-1) food grade (DIN 11851 fitting, clamp)
  • Housing material
    Steel ST37 (coated), Stainless steel flange SS304, Stainless steel flange SS316
  • Sensor material
    Stainless steel DIN 1.4571, Hastelloy C4, Titanium, Tantalum
  • Pressure resistance
    PN10, PN16, PN25, PN40, PN64, PN100, JIS: 10K, JIS: 20K, JIS: 40K, ANSI: 150lb, ANSI: 300lb
  • Diameter
    DN4 ... 600 (other diameters on request)
  • Power supply
    24 V AC/ DC with reverse polarity protection, 230 V AC (50/60 Hz), 110 V AC (60Hz), Internal battery 12 V DC (not all variants available)
  • Electrical connection
    Terminal 1 & 2: Analog output 4...20 mA, Terminal 3 & 4: Pulse output / flow switch 1, Terminal 5 & 6: RS485, Terminal 7 & 8: Pulse output / flow switch 2, Terminal 9 & 10: Reset of the volume register, Terminal 11 & 12: Output voltage 16V/100mA (power supply for switching to active current and pulse outputs), Terminal L, N, PE: Power supply
  • Max. power consumption
    4.6 VA
  • Ambient temperature
    0 ... 55°C
  • Certificates
    CE
  • ATEX certification
    none
  • SIL level
    none
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS code
    90 26 80
  • Signal output reproducibility
    0,2%

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Erik Klein
Fresh water measurement

I use the device with hard rubber casing and remote display. Punctual delivery, simple installation with flange connection and smooth operation ever since.

H
Horst Jedek
Reliable sensor

Have had the device since July and am satisfied. Installation was straightforward and the accuracy is impressive.
Sensor works reliably. Overall, highly recommended for industrial applications.

F
Felix Kungert
Super service & easy installation, device runs reliably

We have been using the device for about 4 weeks to measure the flow in a drinking water pipe (WAZV).
Very professional advice from the seikom team. Device was delivered on time. Installation and IBN went smoothly. Any time again!
