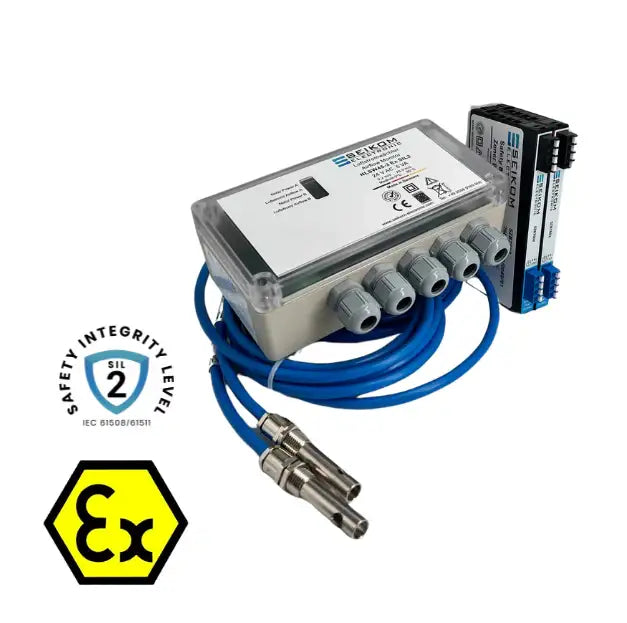

Evaluation unit NLSW45-3 Ex SIL2, flow monitoring for ATEX areas with SIL2 certification

Sku: 63377ExSIL2

Description

✅ Flow monitoring with SIL2 certification according to IEC 62061 (corresponds to performance level d according to EN ISO 13849-1)

✅ Can be used in ATEX zones 1 and 2 in conjunction with the 4 Zener barriers supplied

✅ Large measuring range from 0.1 to 20 m/s with media temperatures from 0°C to 60°C

✅ with switching output suitable for switch cabinet installation

✅ Developed for demanding industrial applications, IP40

✅ Redundant design of the evaluation electronics and use of 2 sensors required

✅ Example areas of application: HVAC systems, fire and smoke protection systems, industrial and process applications, power plant and energy systems, automotive industry and test benches

Operating voltage
€928,00
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available immediately

Bedienungsanleitung DE: Download

Bedienungsanleitung EN: Download

specification
  • Medium
    Gases
  • Device type
    Flow evaluation unit for switch cabinet installation
  • Flow range
    0.1 ... 20 m/s
  • Medium temperature
    0 ... 60°C
  • Display
    LED (voltage & switching point)
  • Switching point
    Stepless adjustment (potentiometer)
  • Protection class evaluation unit
    IP65
  • Special features
    4 Zener barriers included in the scope of delivery, 2 sensors required (SIL2)
  • Output signal
    Switching output
  • Switching output specification
    2 changeover contacts (per channel)
  • Sensor break output signal
    Relay drops out
  • Sensor short-circuit output signal
    Relay drops out
  • Relay output specification
    2 changeover contacts (per channel)
  • Housing material
    Polyamide (UL94V-0)
  • Housing dimensions
    85 mm x 165 mm x 55 mm
  • Mounting
    Mounting kit included, Mounting on DIN rail optional, to be mounted outside the ATEX zone
  • Power supply
    24 V DC ±5%, 24 V AC ±5%, 230 V AC ±5%
  • Electrical connection
    Terminal strip
  • Max. power consumption
    5 VA
  • Recommended cable cross-section
    2.5 mm²
  • Current and contact rating
    250 VAC, 8 A, 2 kVA
  • Minimum switching capacity
    10 mA, 5 V DC
  • Ambient temperature
    -20 ... 50°C
  • Certificates
    CE
  • ATEX certification
    II 3G Ex ic IIC T4 Gc, simple electrical equipment; Zone 1
  • SIL level
    SIL2
  • Country of origin
    Germany
  • Customs tariff number
    90 26 80 20
  • HS code
    90 26 80

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
Fan monitoring in EX zone

I received a requirement from TÜV that I have to monitor an ATEX fan externally, regardless of the speed. As I also have to comply with SIL2, this device fits the bill perfectly. Mr. Weißer gave me perfect advice and the device was here within a week. I am completely satisfied!

I
I.Hüttl
Top processing

Very reliable.
