ATEX - Alarm and fire detectors

Sku: 1611

Description

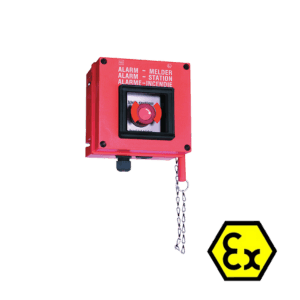

✅ Alarm and fire detectors with emergency hammer for manual alarm triggering in hazardous areas.

✅ ATEX / IECEx: Can be used in Zone 1, 2, 21, 22

✅ With glass breakagemushroom lock button

✅ Clearly visible red (RAL 3000) housing made of glass fiber reinforced polyester resin

€438,00

Shipment is calculated in the checkout.

Delivery time: Available in 1-2 weeks

Datenblatt DE: Download

Datenblatt EN: Download

Device type

Alarm and fire detectors Ex-protected
Device design

Compact
Protection class housing

IP66
Switching output specification

1 NC contact + 1 NO contact
Relay output specification

1 NC contact + 1 NO contact
Housing material

Glass fiber reinforced polyester resin, red (RAL 3000), Lid lock: captive stainless steel triangular screws, M6 thread, M4 key
Weight

2.27 kg

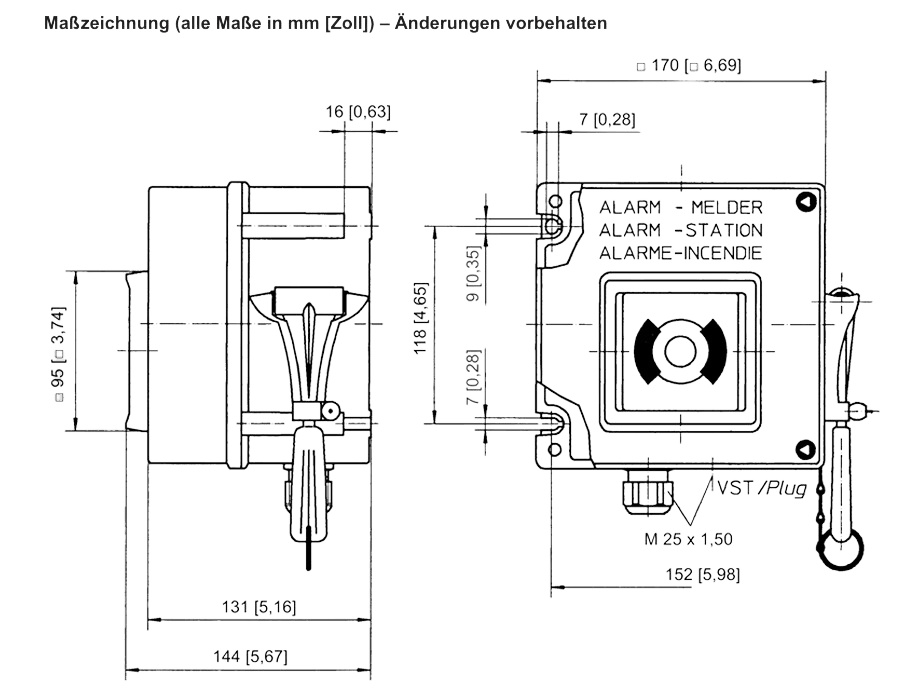

Housing dimensions

131 x 170 x 230 mm
Cable gland

1 x M25 x 1.5
Electrical connection

Connection terminals fine-wire max. 2.5 mm², Clamping range: 7 ... 17 mm
Current and contact rating

AC-15: max. 400 V, max. 6 A, max. 1000 VA, DC-13: max. 110 V, max. 6 A, max. 110 W
Ambient temperature

-20°C ... 40°C (-40°C ... +60°C on request)
ATEX certification

Explosion protection Global (IECEx): Gas and dust: IECEx PTB 06.0025; Ex d e ia ib [ia Ga] mb q IIA, IIB, IIC, T6, T5, T4 Gb; Ex tb IIIC T80°C, T95°C, T130°C Db, Europe (ATEX): Gas and dust: PTB 01 ATEX 1105; II 2 G Ex d e ia ib [ia Ga] mb q IIA, IIB, IIC, T6, T5, T4 Gb; II 2 D Ex tb IIIC T80°C, T95°C, T130°C Db
Country of origin

Germany
Color

red (RAL 3000)
