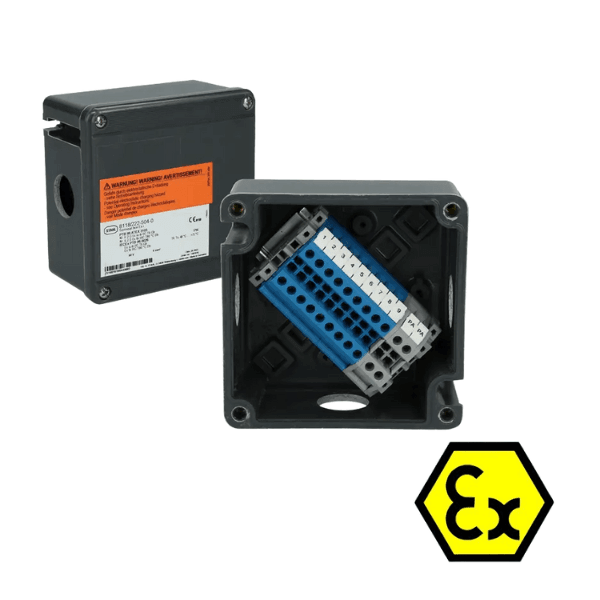

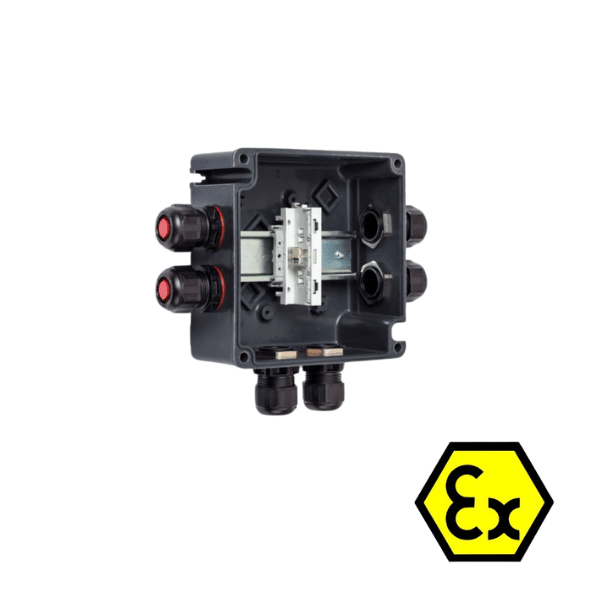

ATEX terminal boxes of the 8118 series

✅ Explosion-proof terminal boxes for Ex zones 1, 2, 21 and 22
✅ made of glass fiber reinforced polyester resin
✅ Available with 35 mm or 15 mm mounting rail
✅ Terminals from Phoenix, Weidmüller or Wago, for 1.5/2.5/4/6/ up to 10 mm²
✅ Protection class IP66
✅ Operating temperature: -50°C to +75°C depending on variant
✅ Operating voltage: up to 690 V AC depending on variant
✅ Dimensions, depending on variant: 85x85, 115x115, 145x145 mm
✅ Ship approval: DNV

✅ Certified for - Ex e applications:
      II 2 G Ex eb IIC T6 / T5 Gb
      II 2 D Ex tb IIIC T80 °C / T95 °C Db
      Voltage - to 690 V Operating voltage

✅ Certified for - Ex e applications (terminal box with earthing plate)
  II 2 G Ex eb IIC T5 / T4 Gb
  II 2 D Ex tb IIIC T95 °C / T130 °C Db
  Voltage - to 690 V Operating voltage

✅ Certified for - Ex e applications (terminal box with earthing plate)
  II 2 G Ex eb IIC T6 / T5 Gb
  II 2 D Ex tb IIIC T80 °C / T95 °C Db
      Voltage - up to 550 V Operating voltage

✅ Certified for - Ex i applications
  II 2 G Ex ia ib IIC T6 Gb
  II 2 D Ex tb IIIC T80 °C Db
  Voltage selection - Up to 60 V Operating voltage
