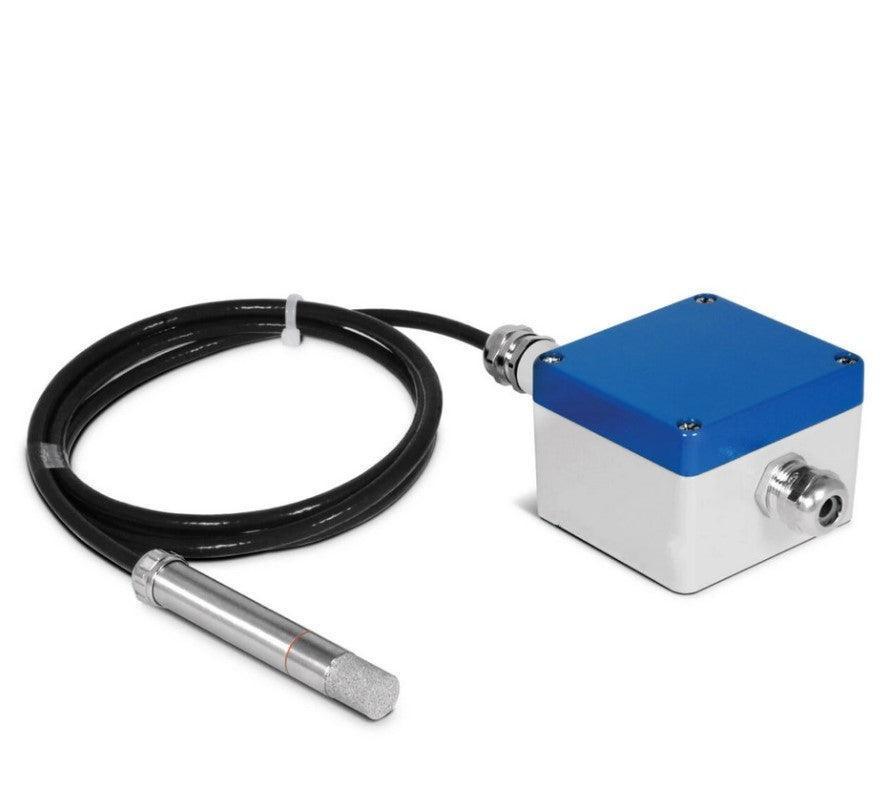

HumiGuard® HT215- Humidity and temperature transmitter Industrial transmitter Two-part MODBUS

Sku: 1527/D

Description

✅ Sensors for humidity and temperature in wall-mounted version, for digital data transmission RS485 / MODBUS-RTU

✅ for industrial transmitters, robust and high accuracy

✅ Transmitter with remote sensor

✅ High temperature sensor, measuring range: -80 ... 200°C

✅ Display optional

✅ Example area of application: Industrial automation, agriculture, food and pharmaceutical logistics, climate and environmental monitoring

Display
€782,94
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available in 1-2 weeks

specification
  • Medium
    Air, non-aggressive
  • Device type
    Humidity and temperature transmitter, Sensors for humidity and temperature for digital data transmission RS485 / MODBUS-RTU, Output of the humidity-dependent variables of the hx diagram and temperature
  • Device design
    Wall version with two-part, remote probe
  • Temperature range
    -80 ... 200°C
  • Temperature accuracy
    -80 ... 200°C
  • Medium temperature
    -80 ... 200°C
  • Relative humidity range
    0 ... 100% rH
  • Relative humidity accuracy
    10 ... 90% rH at 23°C: ±1.5% rH, <10% rF oder >90% rH: ±2% rH, Temperature influence ҂ 23°C: <0.02% RH/K
  • Display
    Display optional, 2 lines, 3 digits + 1 decimal place, Display rel. humidity and temperature
  • Protection class evaluation unit
    IP65
  • Protection class sensor
    IP65
  • Protection class housing
    IP65
  • Special features
    Probe up to 200°C, Probe in two parts, Probe: 64 mm probe tube, 1.5 m special Teflon cable, 104 mm probe tip, Ø20mm probe tube, Ø15mm probe, Modbus, hx sizes, Display optional
  • Output signal
    Digital output
  • Immersion depth
    max. ~93 mm
  • Process connection
    Duct mounting
  • Housing material
    Die-cast aluminum
  • Sensor material
    Stainless steel
  • Housing dimensions
    80 mm x 75 mm x 57 mm
  • Diameter
    Ø15 mm
  • Power supply
    10 ... 30 V DC
  • Electrical connection
    Cable gland: clamping range Ø3 ... 7mm, Screw terminals
  • Max. power consumption
    Intrinsic power consumption Transmitter: <0.88 mA, Intrinsic current consumption transmitter + probe: <1.95 mA , Intrinsic current consumption transmitter + probe + display: < 2.10 mA
  • Recommended cable cross-section
    max. 1.5 mm²
  • Response time
    at v=2 m/s: <10 s
  • Switching differential
    Hyteresis: <1% RH
  • Sensor element type
    FE09, Pt1000 1/3-DIN Kl.B
  • Ambient temperature
    -40 ... 85°C
  • Storage temperature
    -40 ... 85°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS code
    90 26 20
