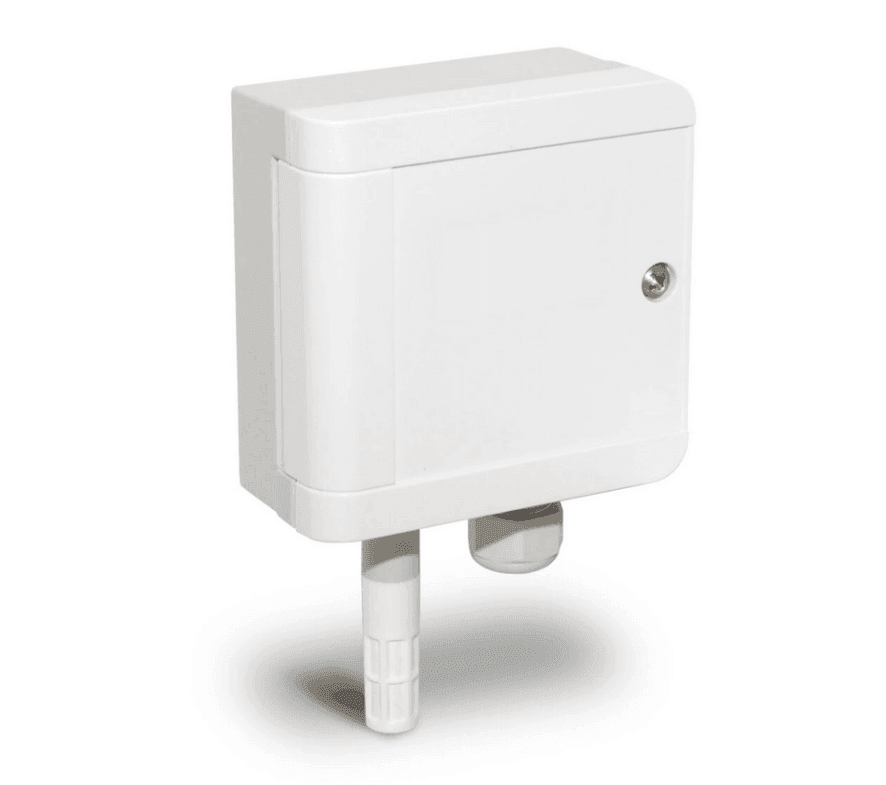

HumiGuard® HT502 - Humidity and temperature transmitter universal wall mounting

Sku: 1522/F/V/-

Description

✅ excellent transmitter in the wall-mounted version

✅ extremely precise and easy to install

✅ Humidity transmitter and hx converter

✅ Example applications: industrial plants, building automation, warehousing, air conditioning, environmental monitoring, research and development

Output signal and display
Measured variable 1
Measured variable 2
€221,75
Shipment is calculated in the checkout.
Lieferzeit Symbol Delivery time: Available in 1-2 weeks

specification
  • Medium
    Air, unpressurized, non-aggressive
  • Device type
    Humidity and temperature transmitter
  • Device design
    Wall version
  • Temperature range
    0 ... 100°C, -30 ... 70°C
  • Temperature accuracy
    0 ... 100°C, -30 ... 70°C
  • Medium temperature
    -30 ... 80°C
  • Relative humidity range
    0 ... 100% rH
  • Relative humidity accuracy
    10 ... 90% rH ±2% rH, <10% rF oder >90% rH±2.5% rH (at 10 ... 40°C ), Temperature influence at T<10°C oder >40°C: typ. ±0.05% rH/K
  • Display

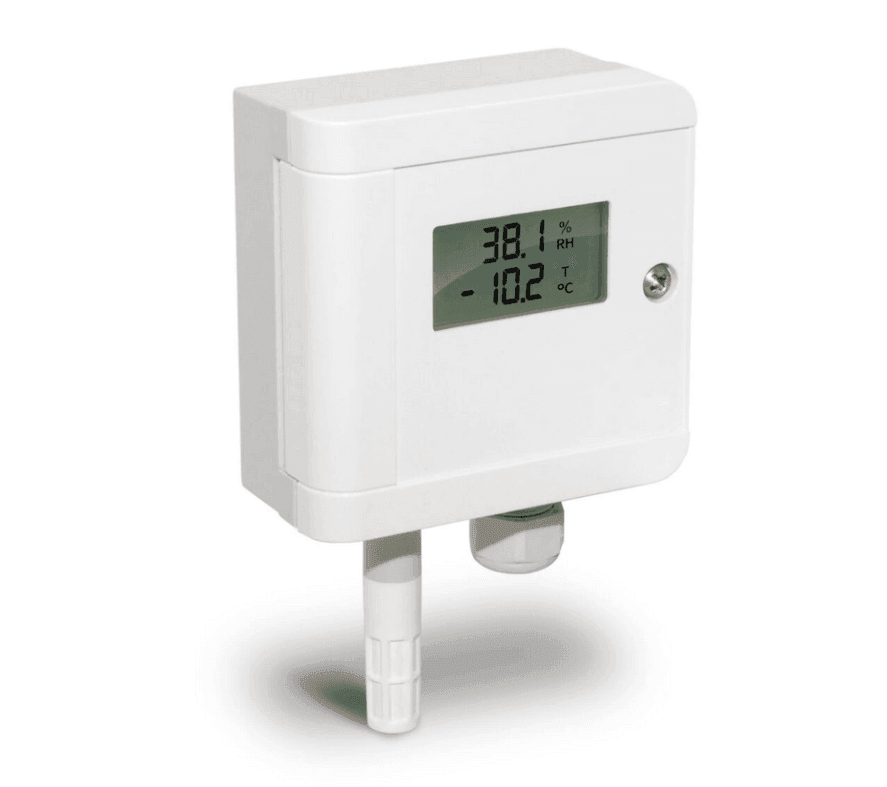

    Display optional, 2 lines, 3 digits + 1 decimal place, Display approx. 21 mm x 40 mm, Digit height approx. 8 mm
  • Protection class evaluation unit
    IP65
  • Protection class sensor
    Protective cage with membrane (basic equipment): IP 30, PTFE sintered filter (optional): IP 65
  • Protection class housing
    IP65
  • Special features
    Output of hx variables possible: Dew point temperature -20 ... 70°C Td Absolute humidity 0 ... 100g/m³ Wet bulb temperature -10 ... 50°C
  • Output signal
    Analog output
  • Immersion depth
    50 mm
  • Housing material
    PC
  • Housing dimensions
    83 mm x 83 mm x 40 mm
  • Diameter
    Ø12 mm
  • Power supply
    15 ... 30 V DC, (galvanic isolation from the power supply is required for current outputs)
  • Electrical connection
    Screw terminals, Wire cross-section per connection: max. 1.5mm², Cable gland, Total cable diameter: 4 ... 8 mm
  • Max. power consumption
    (voltage output) typ. 7 mA
  • Recommended cable cross-section
    max. 1.5mm²
  • Load resistance
    Voltage output: ≥10 kΩ, Current output: load, RL (Ω)= ((supply voltage -10 V)/0.02 A) ±50 Ω
  • Sensor element type
    Capacitive FE09, Pt1000
  • Ambient temperature
    Transducer section/housing (with display): -30 ... 80°C, (without display): -40 ... 80°C, on the sensor head: -40 ... 80°C
  • Storage temperature
    -40 ... 85°C
  • Certificates
    CE
  • Country of origin
    Germany
  • Customs tariff number
    90 26 20 20
  • HS code
    90 26 20
  • Permissible air velocity
    Protective cage with membrane (basic equipment), max. 10 m/s, min. 0.5 m/s
