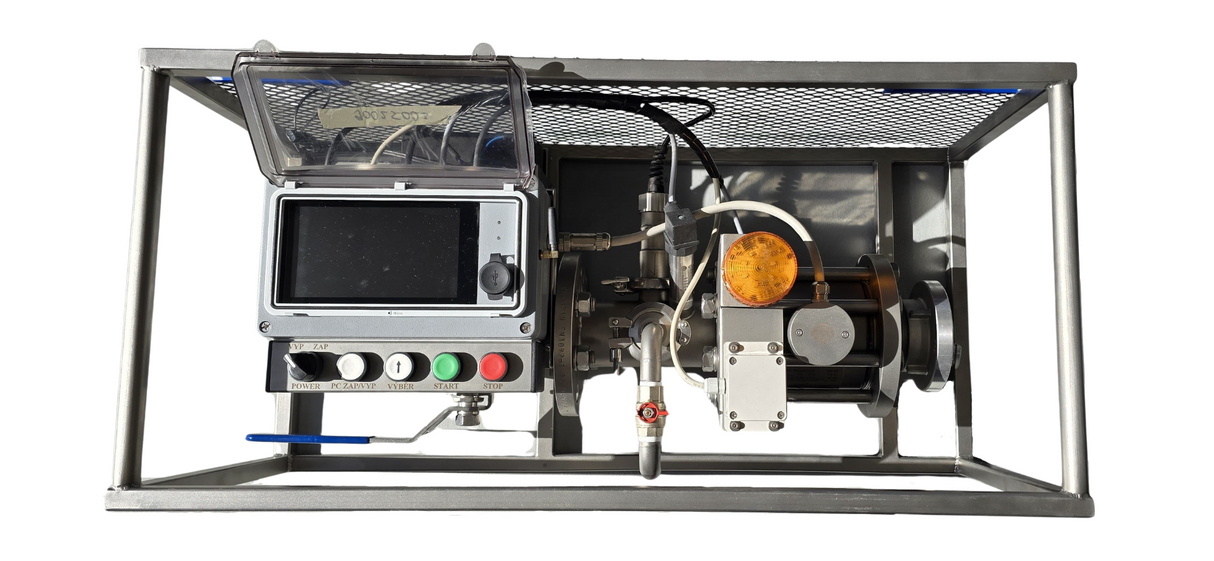

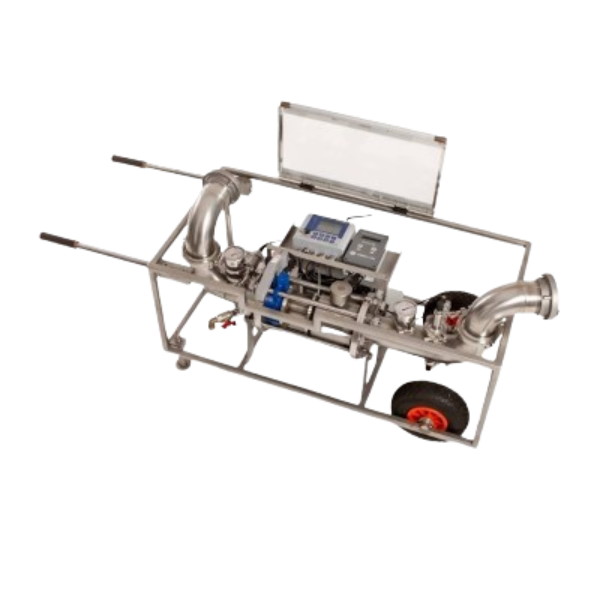

Mobile water quality analyzer - field meter for flow, turbidity, pressure & temperature, IP68, data logger

✅ Versatile water quality monitoring - Ideal for flushing, network drainage, calibration of wastewater analyzers and controlled dilution processes

✅ Integrated sensors - Inductive flow meter (FT410, DN80), IR optical turbidity sensor (0-4000 NTU), temperature and pressure sensor for comprehensive measurements

✅ Robust construction - Made entirely of stainless steel, protection class IP68, developed for demanding field conditions

✅ Flexible power supply - Operation via external 12 V/40 Ah battery, no external power source required

✅ Data logger & online transmission - Memory for up to 1 million measured values, adjustable interval (1 s to 24 h), online data transmission via GSM/GPRS and 868 MHz radio module (range up to 300 m)

✅ Simple operation - Intuitive menu navigation, foldable handle, robust castors, easy maintenance and variable pipe connection (DIN 32676/SMS clamps)

✅ Measurable variables - Pressure, temperature, flow rate, total consumption, turbidity, battery status; conversion from turbidity to undissolved substances possible

✅ Technical data:

Battery: 12 V / 40 Ah

Operating temperature: 0°C ... 50°C

Max. Pressure: 5 bar

Dimensions: 1100 × 550 × 650 mm

Weight: 50 kg

✅ Please contact us, we will be happy to make you an individual offer.
