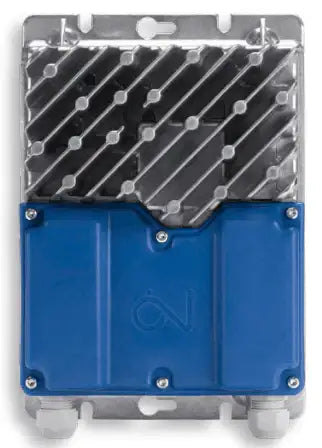

OJ DV Drive actuator for ventilation systems (OJ-DV-xxxx)
Sku:
OJ-DV-1005-NGN7
Description
Description
A series of drives for ventilation systems with 13 power variants (from 0.5 to 15 kW) in four different sizes, suitable for any roof fan, plug fan or AHU application. The OJ DV GEN II can be supplied with 230/400/480 and 600 V.
- 13 different power variants from 0.5 kW ... 15 kW available
- Pre-programmed motor setting maximizes functionality and increases energy efficiency
- Efficiency of up to 97.5%
OJ DV Drive actuator for ventilation systems (OJ-DV-xxxx) - 1 x 230 V AC / 0.55 is in stock and is sent as soon as it is available again
€558,80
Basic price
/
Unavailable
Shipment is calculated in the checkout.
Delivery time: Available in 1-2 weeks
Availability for collection could not be loaded
specification
specification
-
Protection class housingIP54, IP65
-
Efficiency0.5kW-1.3kW>94%, 1.5kW-7.5kW>96.5%, 11kW-15kW>97.5%
-
Digital output specificationBAcnet MS/TP, ModbusRS485
-
Analog input0 ... 10 V
-
Housing materialAluminum, Front cover: Plastic
-
Weight
-
Dimensions0.5 kW-1.1 kW = 185 mm x 230.5 mm x 90 mm, 1.3 kW = 185 x 265 x 125 mm, 1.5 kW-3.0 kW = 185 x 265 x 100 mm, 11 kW-15 kW = 244 x 399 x 144 mm, 4.0 kW-7.5 kW= 220 x 294 x 107 mm
-
Power supply0.5 kW-1.3 kW=1 x 230 V AC, 1.5 kW-15 kW=3 x 380 V AC
-
Ambient temperature-40 ... 50°C
-
Storage temperature-40 ... 70°C
-
Manufacturer
