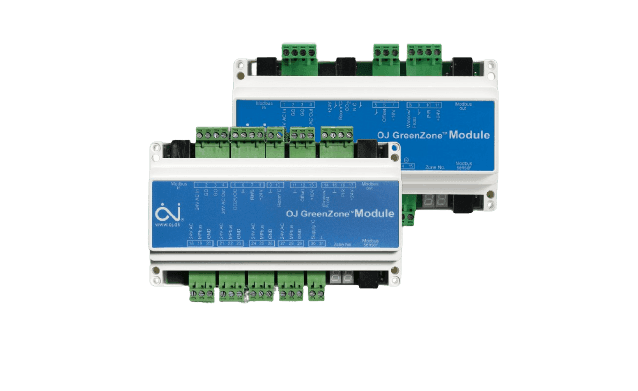

OJ zone module - Analog
Description
Description
Spannungsversorgung: 24 V~ ±10 %, 50 Hz
Leistungsaufnahme: <5 VA
Elektrischer Anschluss: max. 1,5 mm², Schraubklemmen
TCP/IP: 10/100 Mbit Ethernet, RJ45-Stecker (8P8C)
QuickPlug™ Modbus: 5 × RJ12 (6P6C)
SD-Karte: Max. 8 GB SDHC
Digitale Eingänge: 6 St. interne Pull-up
Digitale Ausgänge: 2 St. potentialfreie Relais, max. 230 V~ 5 A; 3 St. potentialfreie Relais, max. 30 V~ 5 A
Analog outputs: 3 pcs. 0-10 V=
Sensor inputs: 2 pcs. PT1000
Ambient temperature, operation: 0/+50 °C
Dimensions: 156 × 110 × 58 mm
Housing: IP20, ABS
Weight: 430 g
OJ zone module - Analog is in stock and will be shipped as soon as it is available again
Availability for pickups could not be loaded
Specification
Specification
-
Temperature measuring range-40 ... 100°C
-
Temperature measuring accuracy-40 ... 100°C
-
Measuring range CO₂0 ... 2000 ppm
-
Measuring range rel. humidity0 ... 100 % rH
-
Enclosure protection classIP20
-
Output signalAnalog output
-
Power supply24 V
-
Power consumption max5 VA
-
