PressGuard® PT204 pressure transmitter opt. for ATEX, SIL1 and marine certified
Away
€172,01
Basic price
/
Unavailable
✅ Pressure transmitter for precise pressure monitoring
✅ SIL1 and ATEX- and marine Certification possible on request
✅ Versatile application possibilities, High accuracy 0.2%
✅ Exemplary areas of application: Process industry for pressure monitoring in pipelines and reactors, water and waste water technology for pressure monitoring in treatment plants, for controlling the pressure in heating, ventilation and air conditioning systems
✅ with G1/2-inch process connection and Hirschmann plug, others on request
✅ Further pressure ranges on request
(-1/0.25/ 0.4/ 0.6/1.6/2.5/4/6/16/25/40/60/160/250/400/600 bar)
(1/1.6/2.5/4/6/10/16/25/40 bar ABS) or freely selectable measuring range
Device type
Pressure transmitter
Device design
Compact device
Medium temperature
-40 ... 130°C
Relative pressure range
Measuring ranges between 0 ... 25 mbar and 0 ... 1000 bar selectable on request
Relative pressure accuracy
0.2% at >100 mbar,
0.3% at 0 ... 100 mbar,
0.6% at 0 ... 25 mbar
Atmospheric pressure range
Atmospheric pressure accuracy
Differential pressure range
Differential pressure accuracy
Relative humidity accuracy
Number of differential pressure ranges
Maximum measuring range limit
Protection class evaluation unit
Protection class sensor
IP65, others on request
Protection class housing
IP65, others on request
IK impact resistance rating
Color rendering index CRI
Max. differential pressure
product.metafields.custom.messgroesse1
Output signal
Analog output
Analog output specification
Switching output specification
Digital output specification
Sensor break output signal
Sensor short-circuit output signal
Relay output specification
Process connection
G1/2-inch,
others on request
Housing material
Stainless steel 304SS
Connection head material
Stainless steel 304SS
Sensor material
Stainless steel SS316L
Pressure resistance
1 bar at <100 mbar, 2,5 bar bei 0 … 400 4 x messbereich, 160 bar, 2 messbereich>160 bar, max. 1600 bar
Overpressure limit
2 bar at <100mbar, 5 bar bei 100 … 400 mbar, 8 x MB bei >400 mbar
Fastening strap specification
Power supply
13...30 V DC,
Ex 12 ... 28V DC

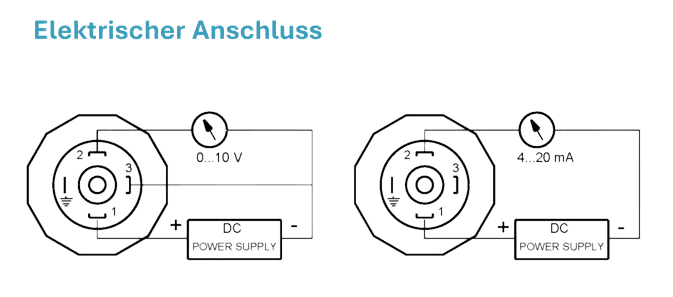

Electrical connection
Hirschmann plug,
others on request
Recommended cable cross-section
Current and contact rating
Minimum switching capacity
product.metafields.custom.leistung Bürde max.
Reverse polarity protection
Ambient temperature
-40 ... 80°C
Temperature compensation
-10 ... 80°C
Certificates
CE, optional: SIL1, MR (DNV, BV) certifications
ATEX certification
II 1/2G Ex ia IIC T4/T5/T6 Ga/Gb,
II 1D Ex ia IIIC T110°C Da,
I M1 Ex ia I Ma,
none
Customs tariff number
90 26 20 20
Output signal accuracy LCD/Modbus
Material contact
Stainless steel SS316L
Signal output reproducibility
Switching function (flow)
Wet bulb temperature spec.
Dew point temperature spec.
Accessories
Screw-in adapter,
reducers
Delivery time: Available in 3-4 weeks
