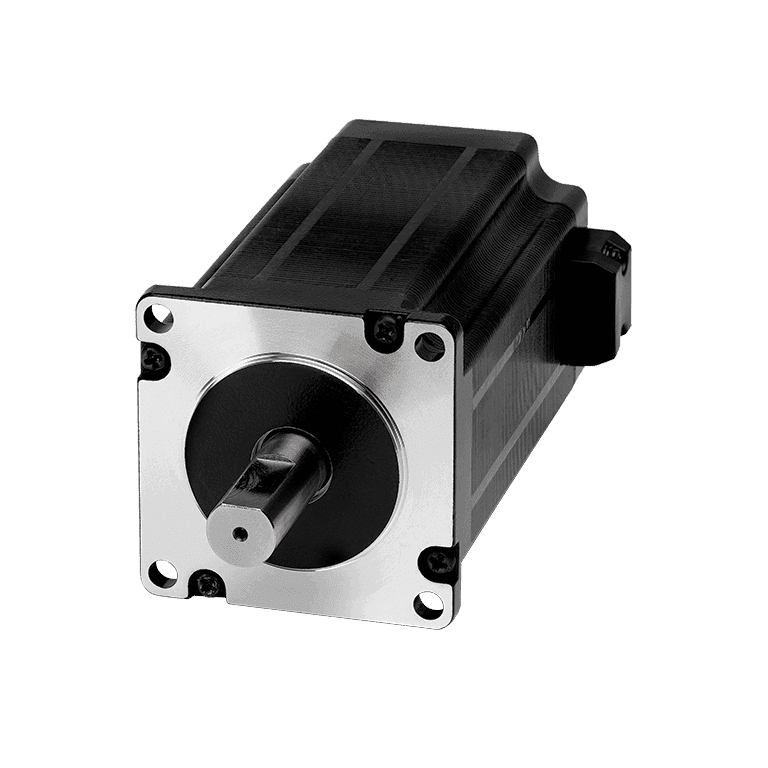

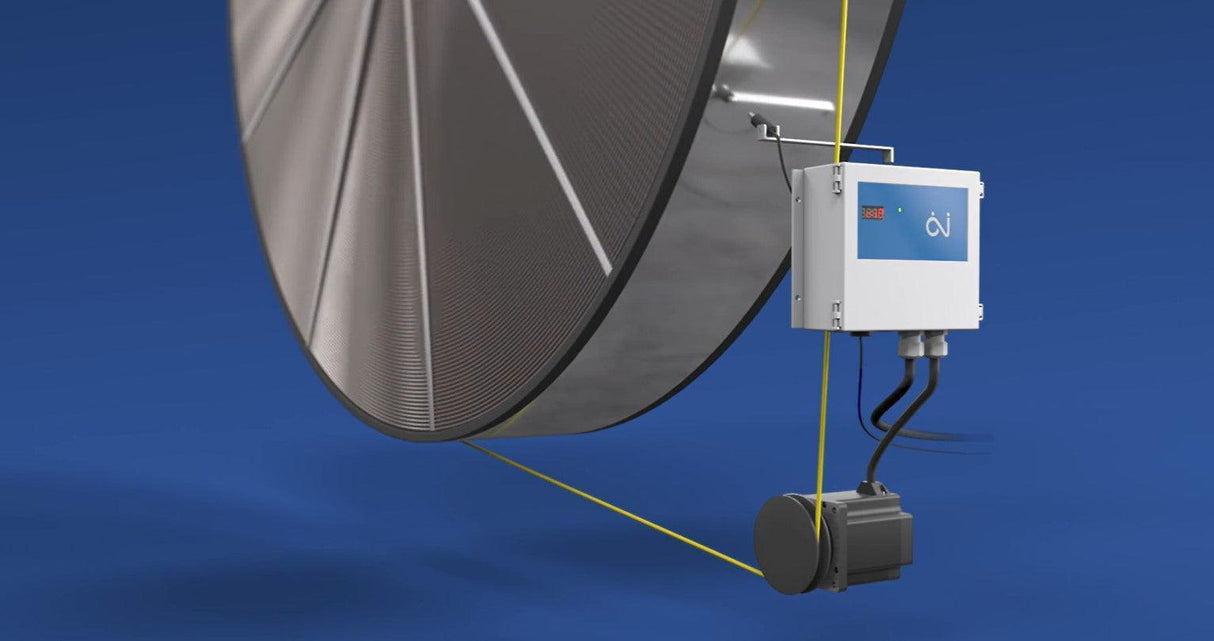

Stepper motor 4 Nm MRHX-3P04N-03C5

SKU: 1190

Description

Torque: 4.0 Nm

Power rating (250 rpm): 110 W

Weight: approx. 3.5 kg

Protection class: IP 54

Operating temperature: -40°C ... 40°C

Storage temperature: -40°C ... 70°C

Dimensions: approx. 85 x 85 x 97 mm

Shaft diameter: 12 mm

Cable length (with plug): 0.3 m

Max. Radial force (20 mm from the flange): 250 N

Max. Axial force: 60 N

€616,60
Shipping will be charged at checkout.

Specification
  • Manufacturer
    OJ Electronics
