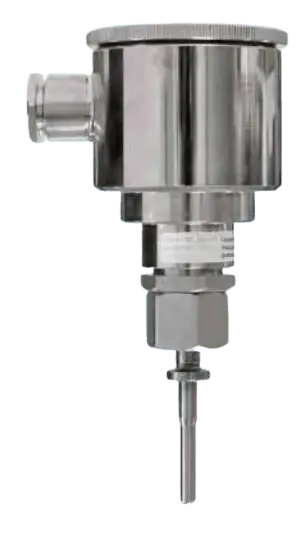

ThermGuard® RTS422 Industrial temperature transmitter, opt. SIL2 + ATEX for zones 0,1,2
Description
Description
✅ vversatile Use in potentially explosive environments
✅ Atex-certified
✅ optionally with SIL2 transmitter
✅ Protection class IP65
✅ Individual configuration on request:
The exemplary articles here in the store selection have the following attributes:
Sensor element: PT100 A, 3-wire,
Process connection: G1/2-inch
set temperature range without neck: -30 ... 150°C

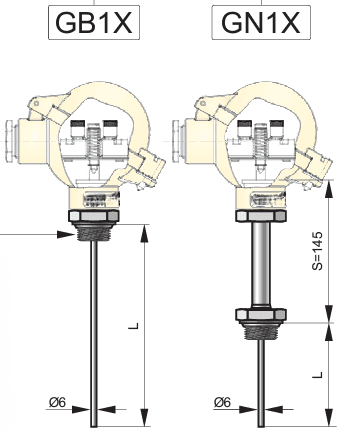

set temperature range with neck: -30 ... 300°C
Alarm signal: Hi (for SIL2 only Lo is possible)
ExiaI: Stainless steel housing head, CT-CL
ExiaII, SIL2 and no certification: Aluminum housing head, CT
ThermGuard® RTS422 Industrial temperature transmitter, opt. SIL2 + ATEX for zones 0,1,2 - none / with integrated thermowell; without neck / 70 mm is in stock and is sent as soon as it is available again
Delivery time: Available in 3-4 weeks
Availability for collection could not be loaded
Datenblatt DE: Download
specification
specification
-
MediumGases, Liquids
-
Device typeTemperature transmitter
-
Device designCompact
-
Medium temperature-70 ... 150°C PT100A, without neck, -70 ... 500°C PT100A, with neck
-
Displaynone
-
Protection class housingIP65
-
Output signalAnalog signal, Digital signal
-
Digital output specificationHART
-
Immersion depth70 mm, 150 mm, 300 mm, others on request
-
Process connectionG1/2-inch, others on request
-

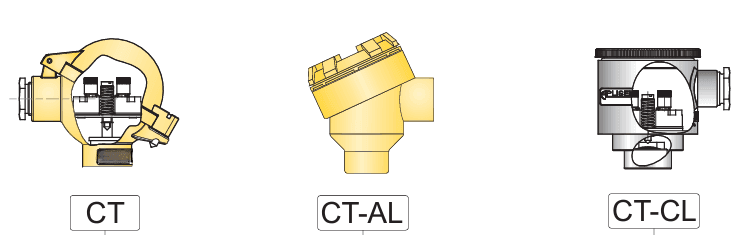

Connection head materialCT-CL: Stainless steel for Exia I, CT-AL: Aluminum, CT: Aluminum for Exia II
-
Diameter6 mm without thermowell, 9 mm with thermowell
-
Max. pressure160 bar
-
Power supply10 ... 36 V DC, ATEX version: 10 ... 30 V DC
-
Ambient temperature-40 ... 85°C, -40 ... 70°C for EX/SIL2EX
-
Storage temperature-40 ... 85°C
-
CertificatesMarine certified, DNV, MR: on request
-
ATEX certificationExia II 1/2 G Ex ia IIC T6...T1 Ga/Gb II 1D Ex ia IIIC T75°C Da , Exia I M1 Ex ia I Ma
-
SIL levelOptional SIL2 transmitter, none
-
Alarm>20 mA-> Hi, optional <20 ma -> Lo
