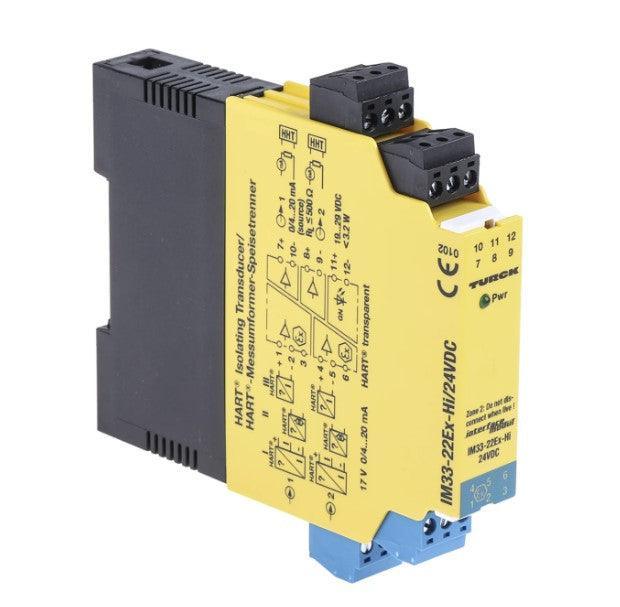

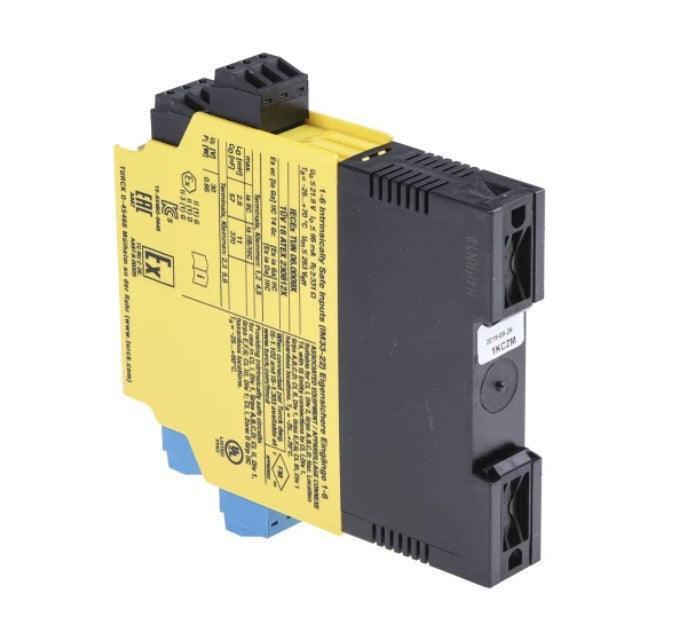

Transmitter supply isolator, single-channel or dual-channel, suitable for HumiGuard® HT130 or HumiGuard® HT131
Description
Description
✅ Transmitter supply isolator, 1-channel or 2-channel
✅ Supply of transmitters in 2-wire technology with HART communication and
Connection to active 2-wire and passive 3-wire transmitters
✅ Input circuit: 0/4 ... 20 mA
✅ Output circuit: 0/4 ... 20 mA
✅ SIL2
✅ Removable terminal blocks, screwable, with 2 mm test socket
✅ Galvanic isolation on all sides
✅ Input reverse polarity protected
✅ ATEX, IECEx, UL, CFMUS, TR CU, CCEO
Use in Zone 2
Transmitter supply isolator, single-channel or dual-channel, suitable for HumiGuard® HT130 or HumiGuard® HT131 - 1-channel is in stock and is sent as soon as it is available again
Delivery time: Available in 2-3 days
Availability for collection could not be loaded
Bedienungsanleitung DE: Download
Bedienungsanleitung EN: Download
Datenblatt DE: Download
Datenblatt EN: Download
specification
specification
-
Device typeTransmitter supply isolator
-
Protection class evaluation unitIP20
-
Output signalAnalog (HART transparent)
-
Analog inputAnalog input (HART transparent)
-
Power supply24 V DC
-
Electrical connection4 x 3-pole removable terminal blocks with test socket, reverse polarity protected, screw connection
-
ATEX certificationATEX, IECEx, UL, cFMus, TR CU, TIIS, CCOE
-
SIL levelSIL2
